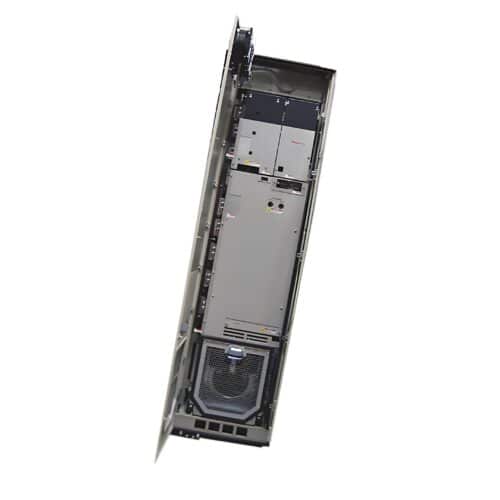

Allen Bradley 20G11NC072JA0NNNNN Inverter Drive – 37kW, IP20

The AB 20G11NC072JA0NNNNN is a high-performance PowerFlex 755 AC Drive engineered for advanced motor control applications across demanding industrial environments. This 72A, 37kW drive features integrated Ethernet/IP, embedded DC terminals, and a built-in brake transistor. Designed for air-cooled operation with an IP20 open enclosure, it supports both normal duty (ND) and heavy duty (HD) loads.

Its modular architecture enables flexible system integration, while comprehensive diagnostics and high-speed communication options ensure streamlined commissioning and maintenance. This drive is ideal for high-power applications requiring superior control, such as conveyors, compressors, and mixers.

Technical Specifications

Model: 20G11NC072JA0NNNNN
Series: PowerFlex 755
Type: AC Drive (Adjustable Frequency)
Power Rating (ND): 37 kW (50 HP)
Power Rating (HD): 30 kW (40 HP)
Current Rating: 72 A
Voltage Class: 400V AC
Enclosure Type: IP20 (Open)
Cooling Method: Air-cooled
Form Factor: Frame Size 4
HIM (Keypad): Not included (Blank cover)

Electrical Specifications

Input Voltage Range: 380…480 V AC
Input Phase: 3-phase
Input Frequency: 50/60 Hz
Output Frequency Range: 0…590 Hz
Nominal Output Current: 72 A
Output Phase: 3-phase
Overload Capacity (HD): 150% for 60s
Overload Capacity (ND): 110% for 60s
Power Dissipation: Varies by load, approx. 450 W (at rated load)
Embedded Filter: Yes, CE compliant
Brake Chopper (DB Transistor): Included
Dynamic Brake Resistor: Not fitted (external required)
Common Mode Jumper: Installed

Network & Interface Specifications

Integrated Interfaces:

• EtherNet/IP: Embedded
• RS-485 (DPI Port): 1
• Optional Expansion: Compatible with communication and I/O modules

Supported Protocols:
EtherNet/IP
Modbus RTU
TCP/IP
DriveExplorer / Studio 5000 compatible

HIM Support: Optional LCD HIM (20-HIM-A6 or A3)
Diagnostics: Real-time status, fault logging, trending

Mechanical Specifications

Width: 222 mm
Height: 474 mm
Depth: 212 mm
Mounting: Panel or enclosure mounting (vertical)
Weight: Approx. 18 kg
Installation Orientation: Vertical only
Environmental Enclosure: IP20 (Open type)
Terminal Access: Front-facing DC and AC terminals

Environmental Specifications

Operating Temperature: –10…50 °C (up to 60 °C with derating)
Storage Temperature: –40…85 °C
Relative Humidity: 5% to 95% non-condensing
Vibration Resistance: 1 g @ 5–2000 Hz
Shock Rating: 15 g (11 ms pulse)
Altitude: Up to 1000 m without derating
Pollution Degree: 2
Cooling Requirements: Integrated air cooling with bottom-to-top airflow

Compliance & Certifications

Certifications: UL, c-UL, CE, RoHS, RCM
SIL/PL Rating: Not safety rated (Safe Torque Off feature available separately)
EMC Filter: Included – compliant with EN 61800-3 (1st Environment)
Standards Met: EN 61800-5-1, IEC 61800-3
Usage Environment: Industrial (domestic/commercial use permitted)

Key Features & Benefits

✅ 37kW Normal Duty / 30kW Heavy Duty Output – Handles demanding motor control applications with high reliability

✅ Integrated EtherNet/IP – Native high-speed connectivity to Logix PACs and industrial networks

✅ Built-In Brake Transistor – Supports dynamic braking with external resistor for enhanced deceleration control

✅ Modular & Scalable Architecture – Expandable with safety, feedback, and I/O modules as needed

✅ EMC Filtered (CE Compliant) – Pre-installed filter for emissions compliance and reduced harmonics
