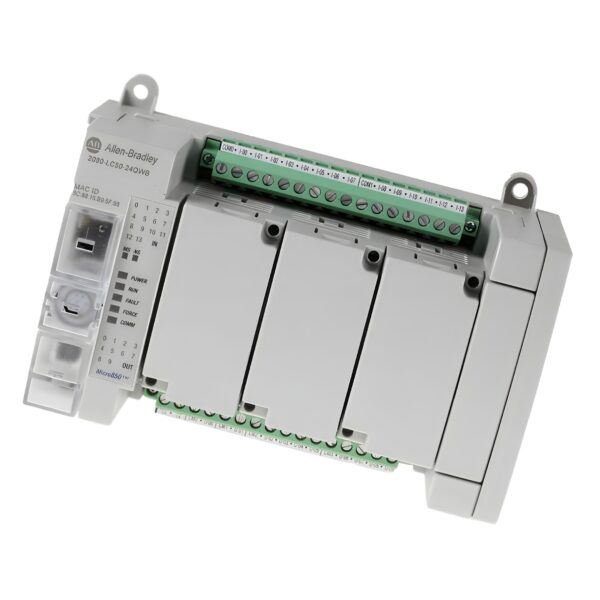

Allen Bradley 2080-LC50-24QWB Micro850 Series PLC CPU

The AB 2080-LC50-24QWB is a versatile and compact Programmable Logic Controller (PLC) from the Micro850 series. It features a built-in combination of 24 digital I/O channels, including 8 high-speed inputs and 6 standard 24V DC inputs with sink/source capability, plus 10 relay outputs for flexible automation control.

Designed for small to mid-size machines, this controller integrates an embedded 24V DC power supply, a non-isolated USB 2.0 programming port, and a 10/100 Mbps Ethernet port supporting EtherNet/IP Class 3 and Modbus TCP/IP protocols. With 4 high-speed counters and expansion support, it’s ideal for motion control, sequencing, and remote I/O communication.

Technical Specifications

Model: 2080LC5024QWB
Series: Micro850
Controller Type: Programmable Logic Controller (PLC)
Form Factor: Compact Brick
Application: Standalone machine control, distributed I/O, motion logic

I/O Configuration

• Total Embedded I/O: 24 Points
• Digital Inputs: 8 High-Speed + 6 Standard (Sink/Source, 24V DC)
• Digital Outputs: 10 Relay Outputs
• High-Speed Counters: 4
• Input Voltage Type: 24V DC (Sink/Source)
• Output Type: Relay

Communication & Connectivity

USB Port: 1 × USB 2.0, non-isolated (for programming)
Ethernet Port: 1 × RJ-45, 10/100 Mbps
Supported Protocols: EtherNet/IP Class 3, Modbus TCP/IP
Expansion Ports: Supports 2085 series I/O modules

Electrical Specifications

Power Supply Type: Embedded
Input Voltage Range: 24V DC
Relay Output Current (Max): 2 A per output, 8 A total per common
Isolation: 1500V AC between field and logic
Integrated Clock: Yes (battery-backed real-time clock)

Mechanical Specifications

Width: Approx. 140 mm
Height: Approx. 90 mm
Depth: Approx. 85 mm
Mounting: DIN rail or panel mount
Wiring Method: Screw terminals

Environmental Specifications

Operating Temperature: 0°C to 55°C
Storage Temperature: –40°C to +85°C
Humidity: 5% to 95% RH, non-condensing
Vibration/Shock: IEC 60068-2 compliant
IP Rating: IP20 (when mounted in enclosure)

Compliance & Certifications

CE Marked: Yes
UL / cUL Listed: Yes
RoHS Compliant: Yes
Standards: IEC 61131-2, EN 61131-2
EMC Compliance: Yes

Key Features & Benefits

✅ 24 Embedded I/O Channels: Includes high-speed inputs and relay outputs

✅ Built-In Ethernet & USB: Easy programming and remote connectivity

✅ Modbus TCP/IP & EtherNet/IP: Open protocol support for versatile networking

✅ Expandable I/O: Add 2085 series modules for custom control setups

✅ Compact, Integrated Design: Perfect for OEMs and machine builders
