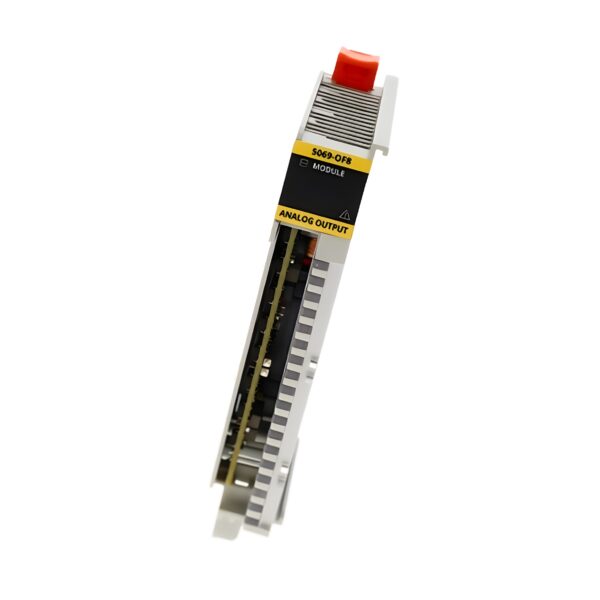

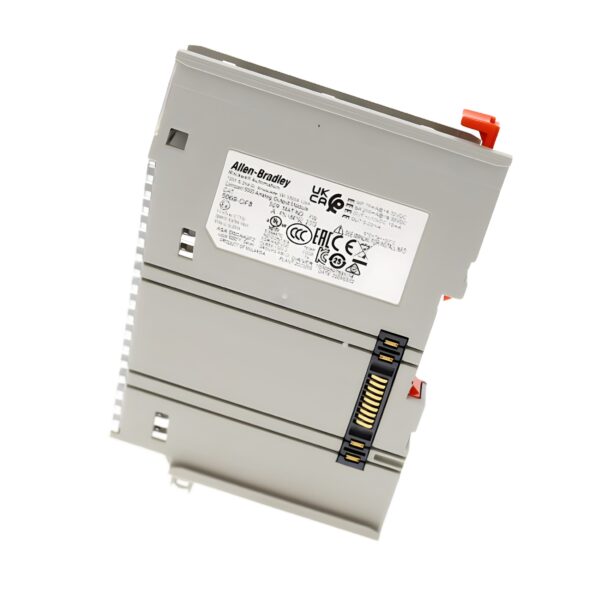

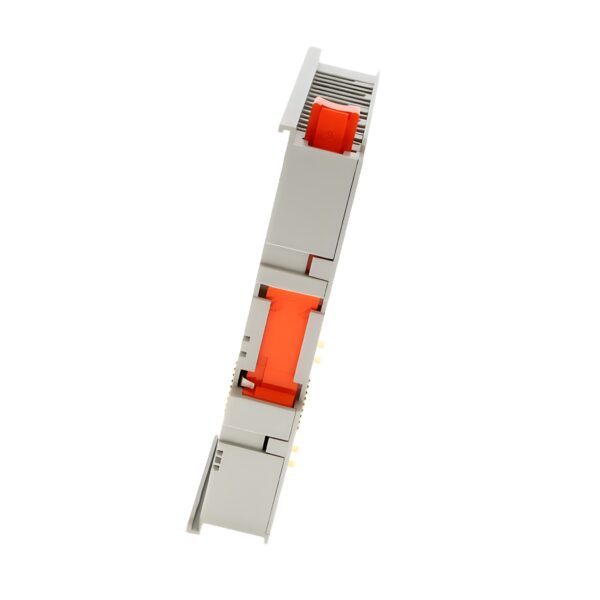

Allen Bradley 5069-OF8 Compact 5000 Analog Output Module

The AB 5069-OF8 is a high-density analog output module designed for Compact 5000 I/O systems. With 8 configurable channels supporting both voltage and current output modes, this unit provides precision analog control for a wide range of industrial automation tasks.

Built with a slim 25.56 mm footprint and high-performance 12-bit digital-to-analog conversion, the 5069-OF8 is ideal for applications requiring multi-channel analog signal output such as actuator control, analog valve regulation, or process automation tasks requiring scalable and repeatable accuracy.

Technical Specifications

Model: 5069OF8
Series: Compact 5000 I/O
Type: Analog Output Module
Channels: 8 analog outputs
Output Signal Types: Voltage or Current (individually configurable per channel)
Resolution: 12-bit D/A conversion
Mounting: DIN rail
Connection Type: Plug-in terminal block
Form Factor: Slim Compact I/O (25.56 mm width)

Electrical Specifications

Output Voltage Ranges: ±10 V, 0–10 V, 0–5 V (software configurable)
Output Current Ranges: 0–20 mA, 4–20 mA (software configurable)
Load Impedance – Voltage Mode: ≥1 kΩ
Load Impedance – Current Mode: ≤600 Ω
Accuracy: ±0.1% full scale (typical)
Update Rate: 1 ms per channel (typical)
Backplane Current Draw: 150 mA @ 3.3V DC
Power Dissipation: Approx. 2.1 W
Isolation Voltage: 50V continuous – basic insulation
Protection Type: Short-circuit and open-load detection

Network & Interface Specifications

System Integration:

• Backplane Communication: Via CompactLogix 5380 or ControlLogix (via 5069-AENTR adapter)
• Data Access: Studio 5000 Logix Designer
• Online Editing: Supported
• Diagnostics: Per channel fault status, overrange/underrange detection

Supported Protocols:
EtherNet/IP (via system adapter)
(Does not support standalone fieldbus connectivity)

I/O Expansion: Supports multiple modules per system chassis

Mechanical Specifications

Width: 25.56 mm
Height: 144.57 mm
Depth: 109.09 mm
Mounting Orientation: Vertical DIN rail
Enclosure Type: Open-type for panel mounting
Terminal Block: Removable plug-in connector
Weight: Approx. 0.25 kg

Environmental Specifications

Operating Temperature: 0…60 °C
Storage Temperature: –40…85 °C
Relative Humidity: 5% to 95% non-condensing
Shock Rating: 30 g operating, 50 g non-operating
Vibration Resistance: 2 g @ 10–500 Hz
Pollution Degree: 2
Certifications: Class I Div 2 hazardous locations

Compliance & Certifications

Certifications: UL, c-UL, CE, RoHS
Explosion Safety (Gas/Dust): None
SIL/PL Rating: Not rated
EMC Compliance: EN 61000-6-2 / 6-4
Standards Met: EN 61131-2
Functional Safety: Not applicable

Key Features & Benefits

✅ 8 Configurable Analog Outputs – Drive voltage or current outputs from one compact module

✅ 12-Bit Resolution – Ensures high accuracy for demanding analog applications

✅ Slim 25.56 mm Profile – Saves panel space while supporting dense I/O architectures

✅ Flexible Signal Ranges – Configurable per channel for maximum adaptability

✅ Integrated Diagnostics – Real-time feedback and fault detection improve reliability
