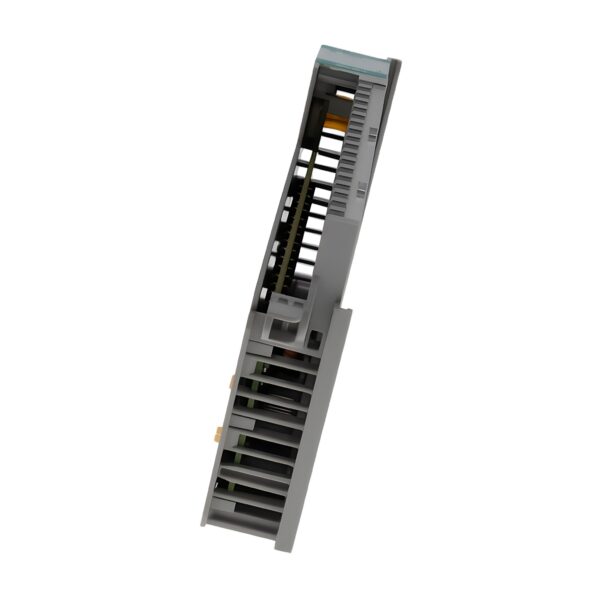

The AB 5069-OB16K is a 16-channel DC digital output module from the Compact 5000 I/O series, engineered for high-performance distributed control in CompactLogix 5380 and ControlLogix 5580 systems.

Designed for 24V DC sourcing outputs, this module supports an aggregate output current of 8 A, and features a conformal coating for extended environmental protection. The plug-in terminal connection and compact 25.56 mm width make it ideal for dense panel installations.

Technical Specifications

Model: 5069OB16K
Series: Compact 5000 I/O
Module Type: Digital Output
Output Channels: 16 (sourcing)
Output Voltage Type: DC
Output Type: Transistor
Mounting: DIN rail (via 5069 system backplane)
Coating: Conformal Coated

Electrical Specifications

• Nominal Output Voltage: 24 V DC
• Permitted Voltage Range: 10…32.1 V DC
• Output Current (Max Total): 8 A
• Short-Circuit Protection: No
• Signal Delay Time: 10 ms (on/off)
• Isolation: Channel-to-backplane, per Compact 5000 design standards

I/O & Connection Details

• Digital Inputs: 0
• Digital Outputs: 16 sourcing
• Output Type: Sourcing transistor
• Connection Type: Plug-in terminal block
• Wiring Method: Screw or spring clamp (depending on accessory)

Mechanical Specifications

• Width: 25.56 mm
• Height: 144.57 mm
• Depth: 109.09 mm
• Weight: Approx. 180 g
• Module Installation: Side-by-side backplane connection with Compact 5000 controllers

Environmental Specifications

• Operating Temperature: 0°C to +60°C
• Storage Temperature: –40°C to +85°C
• Humidity: 5% to 95% RH (non-condensing)
• Protection Rating: IP20 (when installed in enclosure)
• Environmental Coating: Yes – conformal coated for added durability

Compliance & Certifications

• CE Marked: Yes
• UL / cUL Listed: Yes
• RoHS Compliant: Yes
• Standards: IEC/EN 61131-2, IEC 61010

Key Features & Benefits

✅ 16 Sourcing Outputs. High-density digital output module.

✅ 24V DC Operation. Common industrial voltage compatibility.

✅ 8 A Total Output Capacity. Suitable for powering multiple devices.

✅ Conformal Coating. Enhanced protection in harsh environments.

✅ Compact Width (25.56 mm). Ideal for space-constrained panels.

✅ Plug-in Terminal Block. Fast, secure field wiring.

📦 Order the Allen Bradley 5069-OB16K from Drive Outlet Megastore

At Drive Outlet Megastore, we provide unbeatable Allen Bradley 5069-OB16K prices, giving you a high-density, rugged DC output solution for your CompactLogix or ControlLogix I/O system.

With conformal coating for environmental resilience and easy plug-in installation, the 5069-OB16K is the go-to choice for precise control in demanding automation environments.

Check stock now or request a quote.

Efficiency powered. Precision delivered. — Drive Outlet Megastore
