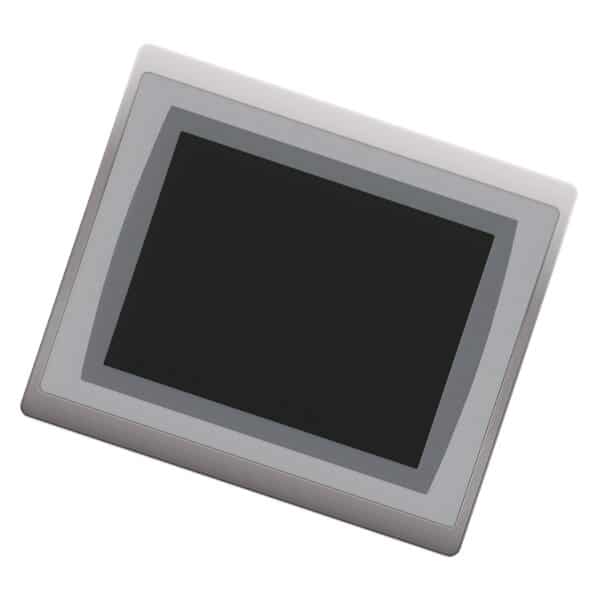

Panelview Plus 7 2711P-T10C22D9P Allen Bradley

The AB 2711P-T10C22D9P is a high-performance HMI from the PanelView Plus 7 Performance series. Designed for demanding industrial automation applications, it features a 10.4-inch SVGA TFT touchscreen, Ethernet communications, and runs Windows 10 IoT, providing advanced visualization, connectivity, and control capabilities.

This operator interface is ideal for complex control systems requiring rapid responsiveness, integrated diagnostics, and secure access across distributed equipment.

Technical Specifications

Model: 2711PT10C22D9P
Series: PanelView Plus 7 Performance
Display Size: 10.4″
Display Resolution: SVGA (800 x 600 pixels)
Display Type: TFT Color Touchscreen
Color Depth: 262,144 colors
Touchscreen Type: Analog resistive
Processor: Performance model CPU
Operating System: Windows 10 IoT Enterprise
Memory: Factory-installed RAM and flash (non-user expandable)
Mounting Type: Panel Mount (Flush with enclosure)

Electrical Specifications

Supply Voltage: 24 V DC
Voltage Type: DC
Power Consumption: Dependent on configuration (approx. 50 W typical)
Protection: Internal fuse protection
EMC Compliance: Industrial immunity and emissions compliant
Power Input Type: Screw terminal block (via rear connector)

Network & Interface Specifications

Communication Ports:

• 1x Ethernet (EtherNet/IP, DLR Supported)
• 2x USB (for keyboard, mouse, or file transfer)
• 0x Serial (RS-232 not included on this model)

Supported Protocols:

• EtherNet/IP
• TCP/IP
• FactoryTalk View SE / ME
• OPC DA / UA (via controller interface)

Expansion Options:

• USB-based peripherals
• External memory for recipe/log backups via USB

Mechanical Specifications

Front Panel Width: 297 mm
Front Panel Height: 252 mm
Unit Depth: 69.6 mm
Mounting Method: Panel / direct wall mounting
Enclosure Rating: IP66 (front), NEMA Type 4X/12
Construction: Industrial-grade plastic with aluminum reinforcement
Weight: Approx. 2.5 kg

Environmental Specifications

Operating Temperature: 0…55 °C
Storage Temperature: –25…70 °C
Relative Humidity: 5% to 95% non-condensing
Shock Rating: 15 g
Vibration Rating: 2 g
Pollution Degree: 2
Cooling: Passive convection – no fans required
Application Suitability: Indoor use in protected industrial enclosures

Compliance & Certifications

Certifications: UL, c-UL, CE, RoHS
EMC Standards: EN 61000-6-2 / EN 61000-6-4
Safety Standards: IEC 61010-2-201, EN 61131-2
Hazardous Location Ratings: Class I, Div 2 (when mounted in a rated enclosure)
Use With: CompactLogix, ControlLogix, Micro800, and other Rockwell Automation controllers

Key Features & Benefits

✅ 10.4″ SVGA TFT Touchscreen – Clear and responsive display for real-time process visibility

✅ Windows 10 IoT OS – Allows advanced diagnostics, security, and future-ready connectivity

✅ Embedded EtherNet/IP Port – Supports DLR and seamless integration into Logix systems

✅ IP66 Front Rating – Designed for use in harsh, washdown, and industrial environments

✅ USB Expansion Ports – Easily connect peripherals or transfer logs and firmware updates
