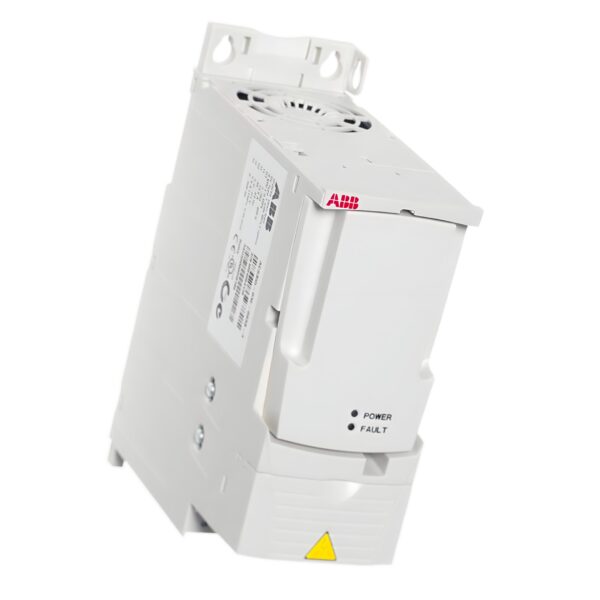

ABB ACS355-01E-06A7-2 Inverter Drive – 1.1 kW, 1PH, IP20
The ABB ACS355-01E-06A7-2 is a high-performance AC inverter drive built to handle 1.1 kW (1.5 HP) motor control via V/f and Sensorless Vector Control with fast, reliable torque response. Designed to accept single-phase 230 V input, it delivers up to 6.7 A continuous output to 3-phase 230 V motors, offering robust compatibility with both standard AC induction and permanent magnet synchronous motors.
Engineered for OEMs, conveyors, fans, and automated machinery, this compact drive features Safe Torque Off (SIL 3), flexible mounting options, and efficient thermal performance. It is easily programmed via DriveWindow or FlashDrop, enabling rapid configuration and commissioning.
Technical Specifications
Model: ACS355-01E-06A7-2
Series: ACS355
Drive Type: AC Frequency Inverter
Power Rating: 1.1 kW (1.5 HP)
Enclosure Type: IP20 / Open Type
Mounting: DIN-rail, rear, or side wall-mount
Application: Fans, OEM panels, small conveyors, automation control
Electrical Specifications
- Input Voltage: 200–240 V AC
- Input Phase: Single-phase (1PH)
- Input Frequency: 50/60 Hz ±5%
- Input Current: 16.1 A (11 A with 1.2 mH choke)
- Output Voltage: 3PH, 0–240 V
- Output Current (Nominal): 6.7 A
- Output Frequency Range: 0–600 Hz
- Overload Capacity: 150% for 60 s, 175% for 2 s
- Heat Loss: 97.4 W
- Braking: External resistor required (40–130 Ω)
I/O & Communication Interfaces
- Digital Inputs: 5
- Digital Outputs: 1
- Analog Inputs: 2
- Analog Outputs: 1
- Relay Output: 1 contact set
- Programming Port: FlashDrop or PC via DriveWindow
- Fieldbus Support: Optional modules available
Mechanical Specifications
- Frame Size: R1
- Width: 70 mm
- Height: 169 mm (239 mm incl. clamp plate)
- Depth: 161 mm
- Weight: 1.2 kg
- Cooling Method: Natural convection
- Mounting Options: DIN-rail, wall, rear/side with multiple bracket options
Environmental Specifications
- Operating Temperature: 0°C to 40°C
- Storage Temperature: –40°C to 70°C
- Humidity: 5%–95% RH (non-condensing)
- Ventilation Clearance: 75 mm above/below, 0 mm sides (side-by-side install supported)
- IP Rating: IP20 (open frame)
Compliance & Certifications
- CE Marked: Yes
- UL / cUL Listed: Yes
- RoHS Compliant: Yes
- EMC Standard: IEC/EN 61800-3 2nd Environment C3
- Safety Function: STO (Safe Torque Off), SIL 3 certified
Key Features & Benefits
✅ Sensorless Vector & V/f Control: Accurate torque and speed control for precision applications.
✅ Single-Phase Input to 3PH Output: Perfect for compact industrial and commercial use.
✅ Safe Torque Off (SIL 3): Built-in safety function for motor disconnection.
✅ Versatile I/O Options: Adaptable to many control and automation systems.
✅ Compact IP20 Housing: DIN or wall mounting for flexible panel integration.
📦 Order the ABB ACS355-01E-06A7-2 from Drive Outlet Megastore
At Drive Outlet Megastore, we offer unbeatable ABB ACS355-01E-06A7-2 prices, ensuring top value for OEMs and automation engineers. As the direct successor to the ACS350-01E-06A7-2, this unit offers modern efficiency with enhanced safety, flexibility, and power density.
Check stock now or request a quote.
Efficiency powered. Precision delivered. — Drive Outlet Megastore
