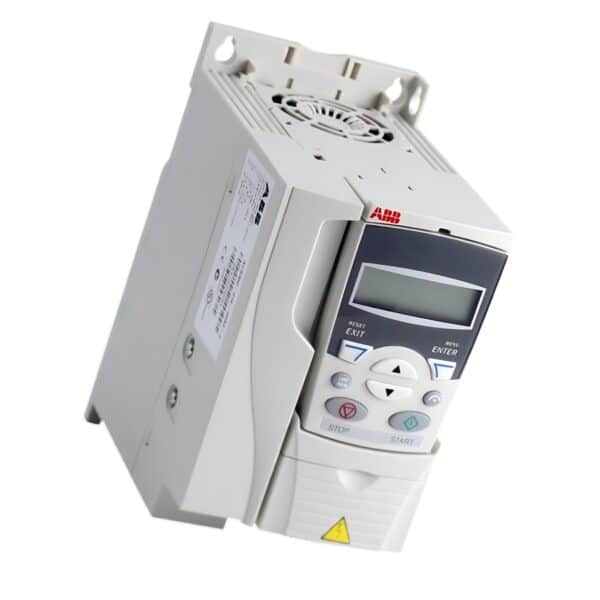

ABB ACS355-03E-09A8-2 Inverter Drive – 2.2 kW, 3PH, IP20
The ABB ACS355-03E-09A8-2 is a compact, cabinet-mountable three-phase inverter drive engineered for 2.2 kW (3 HP) motors, delivering robust performance through V/f and Sensorless Vector Control. Accepting a three-phase 200–240 V AC input, it provides 9.8 A output with an R2 frame size, perfect for high-precision control of induction or PM motors in industrial environments.
Equipped with Safe Torque Off (SIL 3), wide protocol compatibility, and up to 96.3% energy efficiency at high load, this model is trusted for OEM panels, conveyors, and demanding motion control systems.
Technical Specifications
Model: ACS355-03E-09A8-2
Series: ACS355
Drive Type: AC Frequency Inverter
Power Rating: 2.2 kW (3 HP)
Enclosure Type: IP20 / Open Type
Mounting: Cabinet/module mounting (R2 frame)
Application: OEM panels, conveyors, hoists, packaging, woodworking
Electrical Specifications
- Input Voltage: 200–240 V AC
- Input Phase: Three-phase (3PH)
- Input Frequency: 50/60 Hz ±5%
- Output Voltage: 3PH, 0–240 V
- Output Current (Nominal): 9.8 A
- Apparent Output Power: 3.9 kVA
- Efficiency Class: IE2
- Standby Power Loss: 7 W
- Output Frequency Range: 0–600 Hz
- Overload Capacity: 150% for 60 s, 175% for 2 s
- Braking: External resistor required (not included)
I/O & Communication Interfaces
- Digital Inputs: 5
- Digital Outputs: 1
- Analog Inputs: 2
- Analog Outputs: 1
- Relay Output: 1 contact set
- Programming Port: FlashDrop or PC via DriveWindow
- Fieldbus Support: MODBUS, LON, DeviceNet, PROFIBUS, CAN, EtherNet/IP, PROFINET IO, TCP/IP
- Other Interfaces: RS-232, RS-485
Mechanical Specifications
- Frame Size: R2
- Width: 105 mm
- Height: 169 mm (239 mm incl. clamp plate)
- Depth: 165 mm
- Weight: 1.7 kg
- Cooling Method: Natural convection
- Mounting Options: Rear or side for cabinet integration
Environmental Specifications
- Operating Temperature: 0°C to 40°C
- Storage Temperature: –40°C to 70°C
- Humidity: 5%–95% RH (non-condensing)
- Ventilation Clearance: 75 mm above/below, 0 mm sides
- IP Rating: IP20 (open frame)
Efficiency Performance (IEC 61800-9-2 Standards)
| Load Condition | Efficiency (%) |
|---|---|
| No Load 0/25% | 81.7% |
| No Load 0/50% | 87.8% |
| No Load 0/100% | 90.6% |
| Partial Load 50/25% | 89.7% |
| Partial Load 50/50% | 93.1% |
| Partial Load 50/100% | 94.6% |
| High Load 90/50% | 95.6% |
| High Load 90/100% | 96.3% |
Compliance & Certifications
- CE Marked: Yes
- UL / cUL Listed: Yes
- RoHS Compliant: Yes
- EMC Standard: IEC/EN 61800-3 2nd Environment C3
- Safety Function: STO (Safe Torque Off), SIL 3 certified
Key Features & Benefits
✅ Sensorless Vector & V/f Control: Smooth torque and speed regulation across motor types.
✅ Safe Torque Off (SIL 3): Integrated safety function without external components.
✅ Protocol Flexibility: Compatible with MODBUS, PROFIBUS, CAN, Ethernet/IP, and more.
✅ Cabinet-Friendly R2 Frame: Ideal for panel builders and machinery OEMs.
✅ Energy Efficient: Up to 96.3% efficiency at full load for long-term savings.
📦 Order the ABB ACS355-03E-09A8-2 from Drive Outlet Megastore
At Drive Outlet Megastore, we offer unbeatable ABB ACS355-03E-09A8-2 prices, combining performance, flexibility, and compact size for demanding industrial control environments. Built for system integrators and OEMs seeking reliable 2.2 kW motor control in a space-saving design.
Check stock now or request a quote.
Efficiency powered. Precision delivered. — Drive Outlet Megastore
