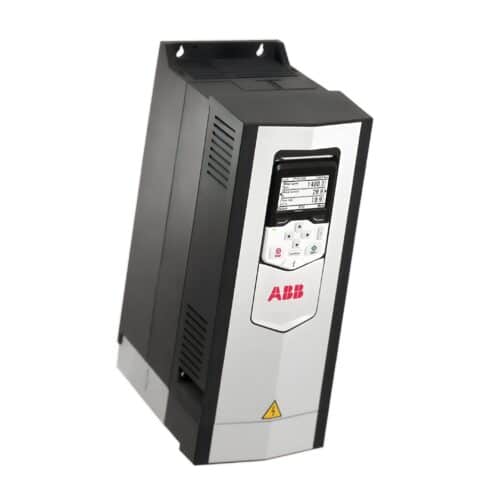

ABB ACS880-01-124A-5 Inverter Drive – 100HP, 3ph, IP21, ACS880
ABB ACS880-01-124A-5 Overview
| Attribute | Details |
|---|---|
| Commercial Alias | ACS880 01 124A |
| Product ID | 3AUA0000090442 |
| Country of Origin | Finland (FI) |
| Customs Tariff Number | 85044086 |
| HS Code | 850440 – Electrical transformers, static converters |
| Invoice Description | ACS880-01-124A-5 PN: 75 kW, IN: 124 A |
| Made to Order | Yes |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit | Piece |
Dimensions
| Attribute | Details |
|---|---|
| Net Weight | 42.2 kg / 93.035 lb |
| Net Dimensions (L x W x H) | 357 mm x 252 mm x 727 mm |
| Packaging Dimensions (L x W x H) | 870 mm x 325 mm x 578 mm |
| Packaging Units | 1 case |
Technical Specifications
| Attribute | Details |
|---|---|
| Number of Phases | 3 |
| Degree of Protection (IP) | IP21 |
| NEMA Enclosure Type | Type 1 |
| Operating Frequency Range (f) | 47.5 … 63 Hz |
| Frame Size | R6 |
| Input Voltage (Uin) | 380 … 500 V |
| Mounting Type | Wall-mounted |
| Operating Humidity (RHamb) | 5% – 95% |
| Maximum Ambient Temperature | 40 °C |
| Sound Level | 68 dB(A) |
Communications & Interfaces
| Supported Protocols | CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, PROFIsafe, Other Bus Systems | | Hardware Interfaces | RS-485 (1), USB (1) | | Analog Inputs/Outputs | 2 / 2 | | Digital Inputs/Outputs | 6 / 2 |
Performance Ratings
| Attribute | Normal Use | Light-Overload Use | Heavy-Duty Use |
|---|---|---|---|
| Output Current (A) | 124 A | 118 A | 96 A |
| Output Power (kW) | 75 kW | 75 kW | 55 kW |
| Apparent Power Output (kVA) | 107 kVA |
Efficiency
| Operating Point | Absolute Loss | Relative Loss | Efficiency |
|---|---|---|---|
| 0 / 25% | 422 W | 0.4% | 93.3% |
| 0 / 50% | 592 W | 0.6% | 95.0% |
| 0 / 100% | 1122 W | 1.0% | 95.2% |
| 50 / 25% | 463 W | 0.4% | 96.3% |
| 50 / 50% | 671 W | 0.6% | 97.2% |
| 50 / 100% | 1314 W | 1.2% | 97.2% |
| 90 / 50% | 771 W | 0.7% | 98.2% |
| 90 / 100% | 1673 W | 1.6% | 98.0% |
UL Ratings
| Attribute | Details |
|---|---|
| Heavy-Duty Use Power (UL) | 75 HP |
| Light-Overload Use Power (UL) | 100 HP |
| Heavy-Duty Use Current (UL) | 96 A |
| Light-Overload Use Current (UL) | 124 A |
Key Features
✅ High Efficiency: Achieves up to 98.2% efficiency, ensuring energy savings.
✅ Heavy-Duty Design: Optimized for demanding industrial applications like pumps, conveyors, and compressors.
✅ Compact Build: Wall-mounted for easy installation in tight spaces.
✅ Versatile Connectivity: Compatible with various industrial communication standards.
The ABB ACS880-01-124A-5 provides exceptional performance and flexibility, making it an ideal choice for high-power industrial drive solutions.
📦 Order Today for Fast UK & Europe Delivery!
At Drive Outlet Megastore, we offer the best ABB ACS880-01-124A-5 prices, with fast shipping available across the UK & Europe.
For more details on the ACS880-01-124A-5 Drives, or to speak with an expert about the best isolation solution for your application, contact Drive Outlet Megastore.
Our team is ready to help you find the perfect drive for your electrical distribution needs. Get in touch today!
