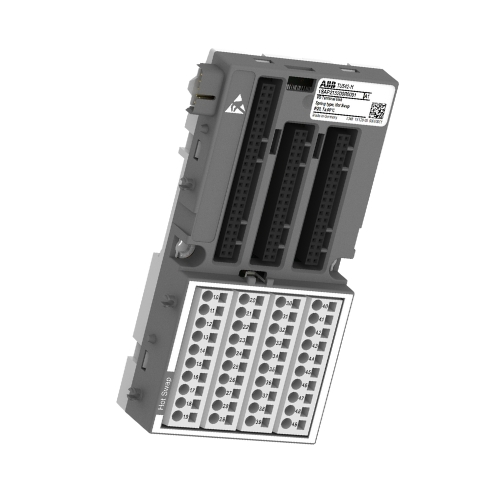

ABB TU542-H I/O Terminal Unit (3ABD00038956)

£229.94 inc VAT

In Stock · Delivered in 3–5 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsABB
Product Type Distributed Automation I/Os
Extended Product Type TU542-H
ABB Type Designation TU542-H
Mounting Type DIN Rail
Product Main Type TU542
WEEE Type Business to Business (B2B)
Product Dimensions (L × W × H) 28 mm × 67.5 mm × 135 mm
Package Dimensions (L × W × H) 147 mm × 78 mm × 40 mm
Order Multiple 1 piece
Invoice Description I/O terminal unit. For 24 VDC high current modules. Spring terminals. Hot Swap (TU542-H)
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It InstantlySend us the competing price or quote for a personalised offer.

🛡️ 24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

SKU: TU542-H Category: Tag: Brand:
Guaranteed Safe Checkout
Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

ABB TU542-H I/O Terminal Unit (3ABD00038956)

The TU542-H ABB is a high-performance I/O terminal unit from the S500 series, designed for 24 VDC high-current modules in AC500 PLC systems. Featuring spring terminal connections and hot-swap capability , this module allows seamless installation and replacement without system downtime—ideal for high-demand automation applications requiring continuous operation.

Technical Specifications

Manufacturer ABB
Product ID 3ABD00038956
Extended Product Type TU542-H
ABB Type Designation TU542-H
Function For 24 VDC High Current Modules, Spring Terminals, Hot Swap
Degree of Protection IP20
Mounting Type DIN Rail
Product Main Type TU542
Product Type Distributed Automation I/Os

Mechanical Dimensions

Product Net Weight 0.164 kg
Gross Weight 0.194 kg
Product Dimensions (L × W × H) 28 mm × 67.5 mm × 135 mm
Package Dimensions (L × W × H) 147 mm × 78 mm × 40 mm
Package Units 1 carton

Compliance & Classification

eClass 27-24-22-92
ETIM (8/9/10) EC000810 – PLC Mounting Rack
UNSPSC Code 32151703
CE Declaration of Conformity 3ADR980146
RoHS Compliance Following EU Directive 2011/65/EU and Amendment 2015/863
REACH Declaration 3ADR980139
REACH Date 2024-12-06
WEEE Category 5 – Small Equipment
WEEE Type Business to Business (B2B)
Made to Order No

Ordering Information

Minimum Order Quantity 1 piece
Order Multiple 1 piece
Selling Unit Piece
CN8 Code 85389091
Invoice Description I/O terminal unit. For 24 VDC high current modules. Spring terminals. Hot Swap (TU542-H)
