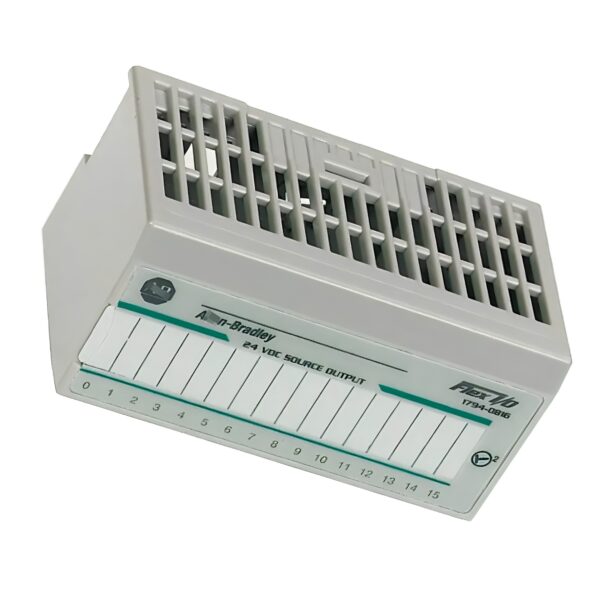

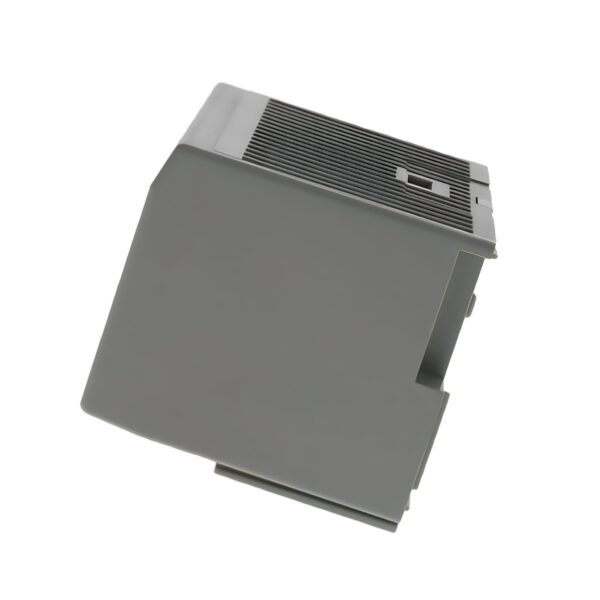

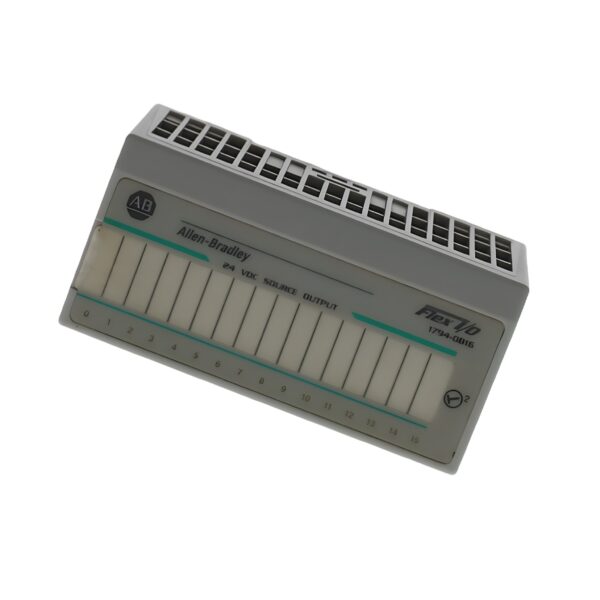

Allen Bradley 1794-OB16 Terminal Base

£316.19 inc VAT

In Stock · Delivered in 5–7 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsAllen Bradley
Series FLEX I/O
Part Number 1794OB16
Total Output Current Capacity 8 A
Module Type Digital Output Module
Output Type Sourcing (Positive Logic)
Mounting Type DIN Rail
Connection Type Screw Terminal (via base)
Nominal Output Voltage 24V DC
Output Voltage Range 24…24 V DC
Dimensions (H x W x D) 94 x 94 x 69 mm
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It!Send us the competing price or quote for a personalised offer.

24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

Allen Bradley 1794-OB16 Terminal Base

The AB 1794-OB16 is a 16-point FLEX I/O digital output module designed to provide efficient and modular control of DC output signals in industrial automation systems. This module delivers reliable performance in distributed control architectures and supports a wide variety of machine and process applications.

Technical Specifications

Manufacturer Allen Bradley
Series FLEX I/O
Part Number 1794OB16
Module Type Digital Output Module
Output Channels 16 (Sourcing)
Nominal Output Voltage 24V DC
Terminal Base Compatibility TB2 / TB3 / TB3S

Electrical Specifications

Output Voltage Range 24…24 V DC
Output Type Sourcing (Positive Logic)
Total Output Current Capacity 8 A
Short-Circuit Protection Not Available
Configurable Outputs Yes
Configurable Inputs No

Mechanical Specifications

Mounting Type DIN Rail
Connection Type Screw Terminal (via base)
Dimensions (H x W x D) 94 x 94 x 69 mm
IP Rating IP20
Housing Material Industrial-grade thermoplastic

Environmental Specifications

Operating Temperature 0°C to +55°C
Storage Temperature -40°C to +85°C
Relative Humidity 5% to 95% (non-condensing)
Vibration Resistance 5 g, 10…500 Hz
Shock Resistance 30 g

Compliance & Certifications

CE Marked Yes
UL Listed Yes
CSA Certified Yes
RoHS Compliant Yes
ATEX Rated No
EMC Compliance EN 50081-2 / EN 50082-2

Related Products & Helpful Links

Frequently Asked Questions

How can I check whether 1794-OB16 is the correct replacement?

Check the exact manufacturer part number, electrical ratings, interface type, mounting and equipment compatibility against your existing equipment and the manufacturer’s datasheet.

How quickly can 1794-OB16 be delivered?

This product is listed as in stock, with estimated UK delivery in 3–5 working days. Delivery depends on order confirmation, courier services and destination.

Where can I check specifications and compatibility?

Review the specification information above and the product’s Downloads or Data Sheets tab, where documents are supplied. Our team can help check part numbers and installation compatibility.

What warranty does Drive Outlet Megastore offer?

Drive Outlet offers its own 2-year return-to-base warranty unless otherwise stated. Manufacturer warranties may not apply; please review the Terms and Conditions before ordering.

Weight 1.5 kg
