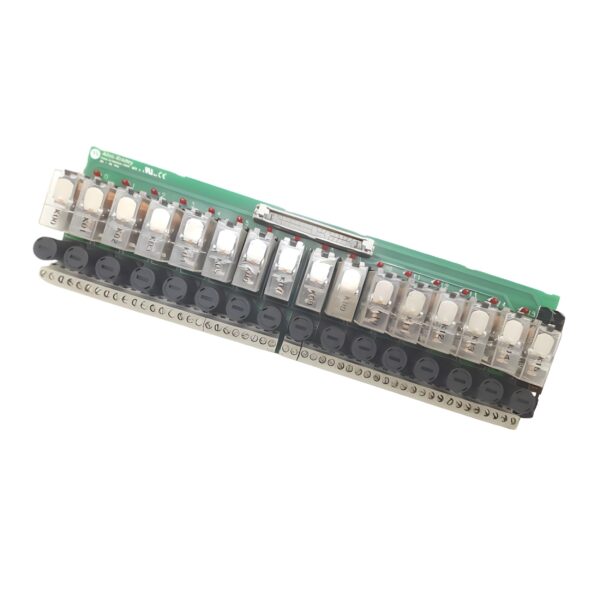

Allen Bradley 1492-XIM4024-16RF 16-Way Relay Interface Module – 24V DC Coil, 40-Pin Connector, Fused Outputs for CompactLogix 32-Point I/O

The Allen Bradley 1492-XIM4024-16RF is a 16-way relay interface module designed to provide a clean, high-density connection between PLC I/O and field devices. Featuring a 24V DC coil system, 40-pin master connector, and individually fused relay outputs, this module is optimised for reliable switching and simplified wiring in modern industrial control panels.

Engineered for seamless integration with Allen Bradley 1769 CompactLogix 32-point I/O expansion modules, the 1492-XIM4024-16RF reduces wiring time, improves organisation, and enhances maintainability. DIN rail mounting and clearly structured connections help panel builders achieve professional, serviceable and space-efficient designs.

Technical Specifications

Model: 1492-XIM4024-16RF Allen Bradley
Series: 1492-XIM
Product Type: 16-Way Relay Interface Module
Number of Relays: 16
Coil Voltage: 24V DC
Main Connector: 40-pin relay master interface
Fusing: Integrated fusing on relay outputs
Compatible I/O: 1769 CompactLogix 32-point I/O expansion modules
Mounting Method: 35 mm top hat DIN rail
Width: 280.67 mm
Height: 83.05 mm
Depth: 70.61 mm

Electrical & Performance Details

• Control Voltage: 24V DC relay coil operation
• Rated Current (Total): 96 A (see OEM documentation for per-channel ratings and fuse characteristics)
• Interface: 40-pin master connector for rapid connection to PLC I/O
• Control-Side Connection: Plug-in style connection to I/O
• Field-Side Connection: Screw terminals for secure field wiring
• Function: Provides relay isolation between PLC outputs and field loads with fused protection

Mechanical Specifications

• Width: 280.67 mm
• Height: 83.05 mm
• Depth: 70.61 mm
• Mounting: 35 mm DIN rail (top hat rail)
• Connection Types: Plug-in (control side), screw terminals (field side)
• Design: High-density layout for multi-channel relay interfacing

Environmental & Application Suitability

• Pollution Degree: 2 (suitable for typical industrial control cabinet environments)
• Typical Applications: CompactLogix panels, machine control, process automation, I/O marshalling, OEM control systems
• Use Case: Ideal where multiple relay outputs, fusing, and fast PLC connectivity are required
• Installation Environment: Mounted inside protected industrial enclosures

Compliance & Certifications

• CE Marked: Yes
• UL / cUL: Typically recognised as part of Allen Bradley 1492 system (refer to datasheet for details)
• RoHS Compliant: Yes

Key Features & Benefits

✅ 16-way relay interface for efficient connection of multiple outputs in a single compact module.

✅ 40-pin master connector enables rapid, error-reduced wiring to CompactLogix 32-point I/O.

✅ Integrated fusing improves protection and simplifies fault isolation.

✅ High DIN rail density helps maximise space in modern control panels.

✅ Plug-in and screw terminals streamline installation, maintenance, and replacement.

✅ Optimised for OEMs and panel builders needing clean, professional PLC interface wiring.
