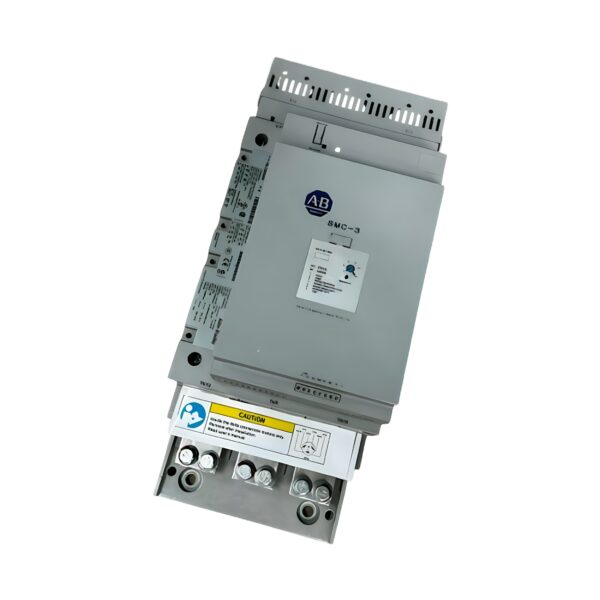

Allen Bradley 150-C201NBR SMC-3 Soft Starter – 160kW (201A) 200–480V, 3-Phase, 24V AC/DC Control, Open Type Motor Controller

The Allen Bradley 150-C201NBR is a high-capacity SMC-3 soft starter designed for smooth motor acceleration and deceleration in heavy-duty industrial environments. With a 201A operating current rating and compatibility with 200–480V 3-phase supply systems, this unit can start motors up to 160kW at 400V—reducing mechanical shock, electrical stress, and long-term maintenance demands.

Equipped with a 24V AC/DC control input, 3-wire control logic, and integrated motor overload protection, the 150-C201NBR is ideal for high-inertia loads such as pumps, crushers, industrial fans, conveyors, and large-scale process equipment operating in continuous-duty environments.

Technical Specifications

Model: 150-C201NBR Allen Bradley
Brand: Allen Bradley
Series: SMC-3 Soft Starters
Type: Solid-State 3-Wire Soft Starter
Rated Motor Power: 160 kW (at 400 V)
Rated Operating Current: 201 A
Rated Operating Voltage (Ue): 200–480 V AC, 3-Phase
Control Voltage: 24 V AC/DC
Frequency: 50/60 Hz
Ideal For: Pumps, crushers, conveyors, heavy HVAC, and continuous industrial systems

Electrical Specifications

• Voltage Range: 200–480 V AC, 3-Phase
• Rated Current: 201 A continuous
• Motor Rating: 160 kW at 400 V
• Control Voltage: 24 V AC/DC
• Control Logic: 3-wire Start/Stop
• Protection: Integrated electronic motor overload
• Additional Safety: Phase loss, stalled rotor, and undervoltage monitoring
• Soft Start/Stop: Adjustable ramp-up and ramp-down settings

Mechanical Specifications

• Mounting Style: Panel-mount (Open Type)
• Chassis: Industrial open-frame for enclosure installation
• Cooling Method: Natural or forced cabinet airflow
• Power Terminals: Heavy-duty screw clamp lugs
• Protection Rating: IP2X (when mounted inside suitable enclosure)

Environmental Specifications

• Max Ambient Temperature: 50°C without derating
• Humidity: 5–95% RH (non-condensing)
• Altitude: Up to 1,000 m without derating
• Application Category: Heavy-duty industrial process environments

Compliance & Certifications

• CE Marked: Yes
• UL / cUL Listed: Yes
• RoHS Compliant: Yes
• Standards: IEC / EN 60947-4-2 & IEC / EN 60947-1

Key Features & Benefits

✅ Large Motor Capacity. Supports motors up to 160kW for demanding workloads.

✅ Soft Start/Stop Control. Reduces wear on couplings, belts, and gear systems.

✅ Integrated Overload Relay. Eliminates the need for separate protection hardware.

✅ 24V Control Interface. Ideal for PLC-based automation and machine panels.

✅ Industrial Reliability. Built for continuous operation in harsh environments.

✅ Trusted Allen Bradley Quality. Long service life and proven performance.
