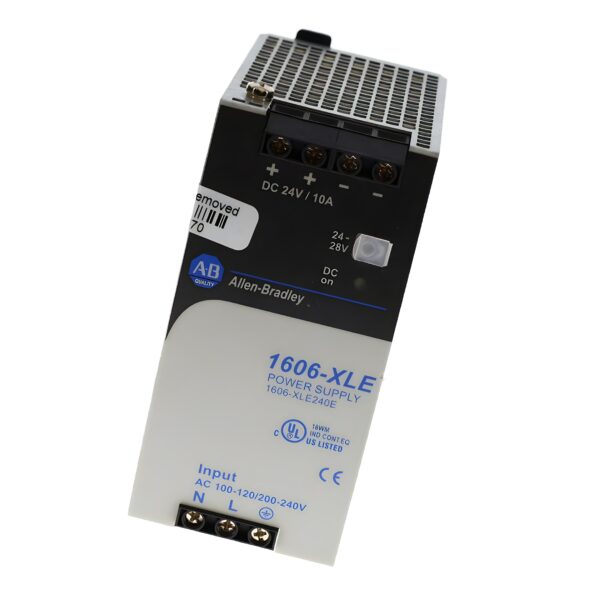

Allen Bradley 1606-XLE240E Essential Power Supply

The AB 1606-XLE240E is a compact and cost-effective DIN rail power supply from the Essential XLE series. Designed for industrial automation applications, this model delivers a regulated 24V DC output at 10A with high efficiency and a robust construction.

With a universal input range of 100–240V AC and a power output of 240 W, the 1606-XLE240E supports 120% power boost for peak loads and features an IP20-rated enclosure for reliable control panel integration.

Technical Specifications

Model: 1606XLE240E
Series: Bulletin 1606-XLE Essential
Type: Switched Mode Power Supply
Mounting Type: DIN Rail
Use Case: General automation power supply, machine panels, control cabinets
Phase Configuration: Single-phase input

Electrical Specifications

Input Voltage Range (AC): 100…240 V AC
Rated Output Voltage: 24 V DC
Output Voltage Range (Adjustable): 24…28 V DC
Nominal Output Current: 8.6 A
Max Output Current: 10 A
Power Output: 240 W
Power Boost: Up to 120% for short durations
Input Frequency: 50/60 Hz
Input Type: Screw terminals
Output Type: DC, regulated
Efficiency: Up to 93% (typical)
Hold-Up Time: >20 ms @ full load

Mechanical Specifications

Width: 60 mm
Height: 124 mm
Depth: 117 mm
Mounting Orientation: Vertical
Mounting Method: 35 mm DIN rail (EN 60715)
Weight: Approx. 0.9 kg
Cooling Method: Natural convection

Environmental Specifications

IP Rating: IP20 (finger-safe front)
Operating Temperature: -25…+70 °C (with derating above 60 °C)
Storage Temperature: -40…+85 °C
Relative Humidity: 5% to 95% (non-condensing)
Pollution Degree: 2
Altitude: Up to 2000 m without derating
Protection Features:

• Overload protection
• Short-circuit protection
• Overvoltage protection
• Thermal protection

Compliance & Certifications

Certifications:

• CE
• UL Listed
• cULus
• RoHS
• EN 61000-6-2, EN 61000-6-3 (EMC)
  Standards Compliance:
• EN 60950-1 / UL 508 / UL 60950-1
  Safety Class: Class I (PE connection required)
  Isolation Voltage: Input to output 3.0 kV AC

Key Features & Benefits

✅ Compact 60 mm Housing – Saves space on DIN rail installations

✅ 240 W Output with 120% Power Boost – Delivers headroom for peak loads

✅ High Efficiency up to 93% – Reduces energy waste and heat buildup

✅ Wide Input Range (100–240V AC) – Suitable for global applications

✅ Industrial-Grade Reliability – Built for long service life and reduced maintenance
