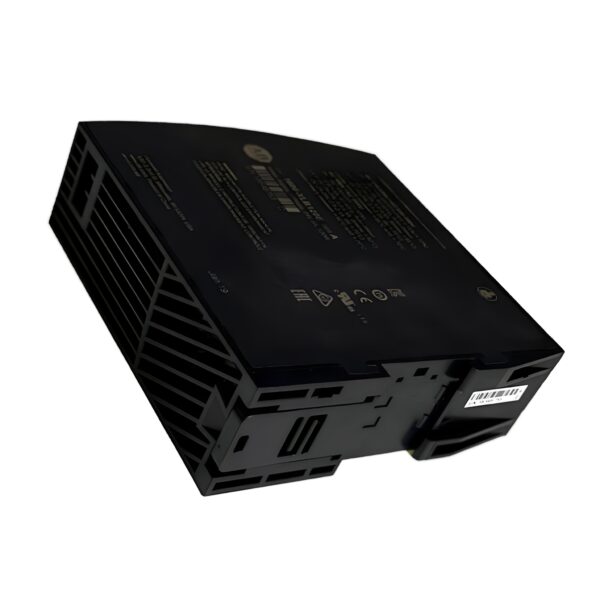

Allen Bradley 1606-XLB120E Basic Power Supply

The AB 1606-XLB120E is a cost-effective Basic Series switched mode power supply designed for industrial applications requiring dependable 24V DC output. Delivering 5 A current at 120 W power output, this compact DIN rail-mounted unit accepts a wide AC input range from 85–132V AC (50 Hz) and 170–264V AC (60 Hz), ensuring compatibility with global power standards.

Rated for long operational life and featuring up to 95.2% efficiency, the 1606-XLB120E provides robust performance in control panels, automation systems, and factory floor applications. With an IP20 enclosure, screw terminal connections, and a narrow 39 mm width, it is ideal for tight cabinet layouts where reliability and simplicity are paramount.

Technical Specifications

Model: 160XLB120E
Series: 1606-XLB Basic Power Supplies
Type: Switched Mode Power Supply
Output Voltage: 24V DC (adjustable 24…28V)
Output Current: 5 A
Power Output: 120 W
Mounting Type: DIN Rail
Application: General-purpose 24V DC supply for PLCs, sensors, relays, and control circuits

Electrical Specifications

Nominal Output Voltage: 24 V DC
Adjustable Output Range: 24…28 V DC
Max Output Current: 5 A
Power Rating: 120 W
Input Voltage Range (50 Hz): 85…132 V AC
Input Voltage Range (60 Hz): 170…264 V AC
Voltage Type: AC
Input Frequency: 50/60 Hz
Efficiency: Up to 95.2% (model-dependent)
Hold-up Time: Model-specific (consult datasheet)
Connection Type: Screw terminal block

Mechanical Specifications

Width: 39 mm
Height: 124 mm
Depth: 124 mm
Mounting Type: DIN rail (top hat rail)
Enclosure Type: Compact metal casing
Cooling Method: Convection (fanless)
Installation Position: Vertical recommended

Environmental Specifications

Operating Temperature: –25…+70 °C (de-rating may apply above 60 °C)
Storage Temperature: –40…+85 °C
Relative Humidity: 5%…95% non-condensing
IP Rating: IP20
Shock/Vibration: IEC 60068 compliant
Certifications: CE, UL, cULus, RoHS
Application in Commercial/Residential Areas: Permitted

Compliance & Communication

Electrical Safety Standards: UL 508, EN 60950-1
EMC Compliance: EN 61000-6-2 (Immunity), EN 61000-6-3 (Emissions)
Inrush Current Limiting: Yes
Protection Features:
– Overload protection
– Short-circuit protection
– Overvoltage protection
– Thermal protection
Communication Interface: None (standalone supply)

Key Features & Benefits

✅ Compact 120 W Design – Delivers reliable 24V DC power in a slim 39 mm package

✅ Global Input Voltage Range – Accepts both low and high AC line voltages for worldwide use

✅ High Efficiency – Up to 95.2% for reduced energy loss and lower panel temperatures

✅ DIN Rail Mounting – Easy integration into control panels and distributed systems

✅ IP20 Metal Enclosure – Rugged housing suitable for industrial environments

✅ Basic Yet Robust – Designed for long service life and continuous 24/7 operation
