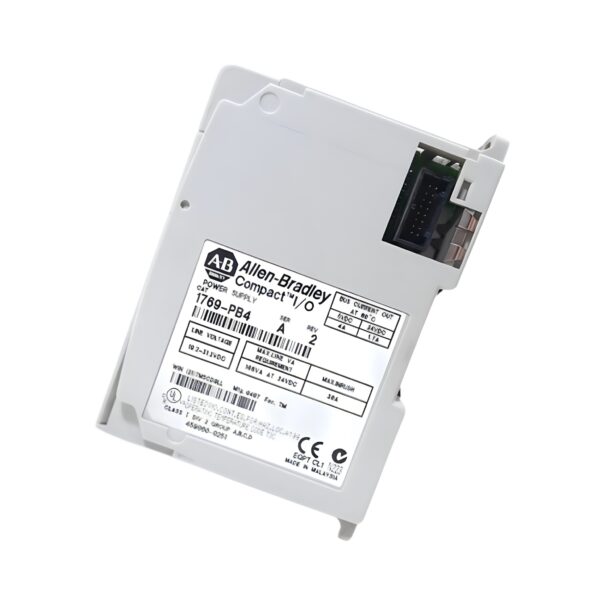

Allen Bradley 1769-PB4 Power Supply

The AB 1769-PB4 is a DC power supply module designed for use with CompactLogix and MicroLogix 1500 systems. Delivering up to 2A at 5V DC and 0.8A at 24V DC, this expansion power supply supports a combined power output of 100W and provides reliable operation for a wide range of Compact I/O modules.

With a 24V DC input and compact form factor, the 1769-PB4 mounts directly onto a DIN rail or panel alongside other 1769 modules, supplying power for controller systems and field I/O. It is ideal for distributed and machine-level control installations where efficient, modular expansion is required.

Technical Specifications

Model: 1769PB4
Series: Compact I/O
Type: Expansion Power Supply
Input Voltage: 24V DC
Output Voltage: 5V DC / 24V DC
Output Current:
– 2 A @ 5V DC
– 0.8 A @ 24V DC
Total Power Output: 100 W
Redundancy: No
Mounting Type: DIN rail or panel mount
Application: CompactLogix / MicroLogix 1500 expansion power for I/O modules

Electrical Specifications

Input Voltage Range: 24…24 V DC
Input Type: DC only
Output Voltage: 5V DC, 24V DC
Maximum Output Current:
– 2.0 A (5V DC)
– 0.8 A (24V DC)
Power Output Capacity: 100 W
Backplane Current Draw: Supplies backplane power to adjacent modules
Inrush Current: Model-specific (consult datasheet)
Overload Protection: Integrated circuit protection
Isolation: Yes (galvanic isolation between input and outputs)

Mechanical Specifications

Width: 70 mm
Height: 118 mm
Depth: 78 mm
Mounting Type: DIN rail or panel
Enclosure Type: Compact modular housing
Connection Type: Plug-in terminal blocks (screw clamp)
Positioning: Left-most power supply or mid-point in expansion rail

Environmental Specifications

Operating Temperature: 0…+60 °C
Storage Temperature: –40…+85 °C
Relative Humidity: 5%…95% non-condensing
IP Rating: IP20 (when mounted in enclosure)
Certifications: CE, UL, cULus, RoHS
Shock/Vibration Resistance: IEC 60068 compliant
Application in Commercial/Residential Areas: Permitted

Compliance & Communication

Chassis Compatibility: CompactLogix, MicroLogix 1500
Backplane Compatibility: Supports 1769 I/O modules via bus connection
Communication Support: None (power supply only)
Diagnostics: Status LED indicators (power OK)
EMC Compliance: Industrial emissions and immunity standards

Key Features & Benefits

✅ Dual Voltage Output – Simultaneously provides 5V and 24V DC for system and field device power

✅ Modular Integration – Seamlessly fits into Compact I/O racks for distributed control systems

✅ 100W Total Output – Supports a wide range of modules with reliable regulated power

✅ Compact Design – 70 mm width fits tight control panel layouts

✅ DIN or Panel Mountable – Flexible installation options for OEMs and panel builders

✅ No Redundancy Needed – Simple, reliable power solution for non-redundant systems
