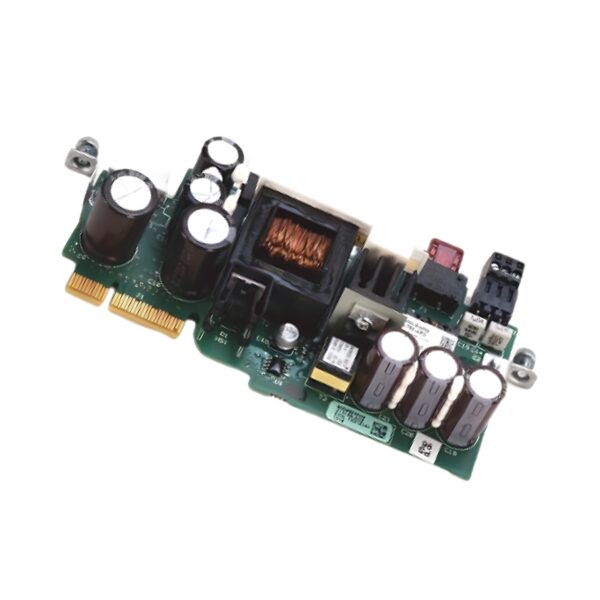

Allen Bradley 20-750-APS Auxiliary Power Supply

The AB 20-750-APS is a dedicated 24V auxiliary power supply module designed for use with PowerFlex 750-Series drives, including PowerFlex 753 and PowerFlex 755. This compact unit delivers 24V DC to support internal drive control circuits or maintain control power during main power loss.

The 20-750-APS mounts directly to the drive, offering plug-and-play installation with no separate wiring required. It ensures critical control functions, such as communication and diagnostics, remain active during downtime, startup, or transition to safe-state operation. Ideal for applications requiring safe motor control continuity and controller responsiveness in automation systems.

Technical Specifications

Model: 20750APS
Series: PowerFlex 750
Type: Auxiliary Power Supply Module
Power Output: 24V DC
Voltage Class: Low-voltage auxiliary
Supported Drives: PowerFlex 753 / PowerFlex 755
Control Power Support: Yes
Mounting: Direct mount to PowerFlex 750-Series drives
Application: Maintains control power to logic and communication systems during main power loss

Electrical Specifications

Output Voltage: 24 V DC
Nominal Current Output: Matches PowerFlex 750-Series control requirements
Input Power Source: Internal from drive or external 24V DC system
Control Circuit Supply: Yes
Redundant Power Option: Compatible with redundant configurations
Protection Functions: Overvoltage, short circuit, reverse polarity
Isolation: Electrically isolated from motor power circuits
Signal Type: DC logic supply

Mechanical Specifications

Width: Compact module footprint
Height: Matches drive chassis interface
Depth: Designed for flush mount with PF750 drives
Mounting Type: Snap-on / integrated
Enclosure Type: Open type for panel/cabinet installation
Cooling: Passive, ambient air convection
Weight: Lightweight module (~200 g)
Cable Type: No external cable – direct drive interface

Environmental Specifications

Operating Temperature: 0…50 °C
Storage Temperature: –40…85 °C
Relative Humidity: 5% to 95% non-condensing
IP Rating: IP00 (for cabinet use)
Vibration Resistance: Compliant with industrial environments
Shock Resistance: IEC-compliant
Certifications: CE, cULus, RoHS
Application in Commercial/Residential Areas: Permitted (with EMC-compliant drive)

Compliance & Communication

EtherNet/IP Support: Maintains drive control network during loss of motor power
DeviceNet / Serial Support: Retains communication to control system
Used With: Drives that include 20-750 series control units
Communication Protocol Support: Via host drive
EMC Compatibility: Depends on integrated drive’s compliance

Key Features & Benefits

✅ 24V Auxiliary Output – Delivers stable low-voltage power to maintain control circuitry and drive logic

✅ Integrated Mounting – Snap-mounts directly to PowerFlex 753 / 755 for easy installation

✅ Maintains Network Communication – Keeps drives and controllers connected during downtime or safe stop conditions

✅ Supports Safety Functions – Critical for applications requiring motion control shutdown with communication still live

✅ Compact and Efficient – No need for separate wiring or external power supplies

✅ Allen Bradley Certified – Purpose-built for PowerFlex 750-series compatibility

📦 Order the Allen Bradley 20-750-APS from Drive Outlet Megastore

At Drive Outlet Megastore we offer unbeatable Allen Bradley 20-750-APS prices. With multiple units available, we ensure fast delivery and technical assistance for all PowerFlex 750-Series accessories.

Click here to request a quote or buy now

Drive Outlet Megastore – your trusted supplier for Allen Bradley PowerFlex 750 drive accessories and industrial automation solutions.
