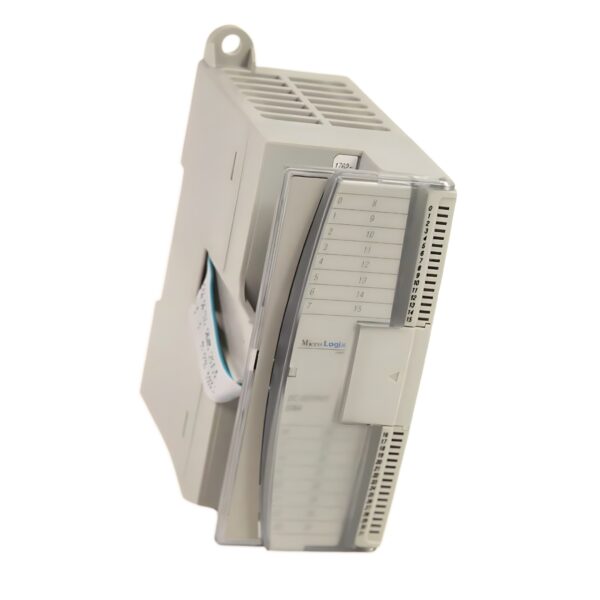

Allen Bradley 1762-OB16 Digital Output Module

£339.19 inc VAT

In Stock · Delivered in 3–5 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsAllen Bradley
Output Current Defined per MicroLogix specifications
Model MicroLogix 1762-OB16
Series MicroLogix 1200
Module Type Digital Output Module
Output Type Transistor (sourcing)
Rated Output Voltage 24 VDC
Connector Type Screw terminal
Enclosure Type IP20 (Open-type)
Mounting DIN rail
Permitted Voltage Range 24…24 VDC
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It!Send us the competing price or quote for a personalised offer.

🛡️ 24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

SKU: 1762-OB16 Category: Tags: , , Brand:
Guaranteed Safe Checkout
Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

Allen Bradley 1762-OB16 Digital Output Module

The AB 1762-OB16 is a 16-point digital output module designed for use with the MicroLogix 1200 PLC platform. Providing 24V DC transistor sourcing outputs, it enables reliable, high-speed switching in industrial automation systems. This compact module connects via screw terminals and supports direct DIN rail mounting, offering flexibility in panel layouts.

Technical Specifications

Model MicroLogix 1762-OB16
Series MicroLogix 1200
Module Type Digital Output Module
Output Points 16
Mounting DIN rail
Connector Type Screw terminal
Application Discrete I/O control for OEMs and industrial systems

Electrical Specifications

Rated Output Voltage 24 VDC
Output Type Transistor (sourcing)
Permitted Voltage Range 24…24 VDC
Short-Circuit Protection Not available
Output Current Defined per MicroLogix specifications
Backplane Current Draw Minimal (via MicroLogix controller)

Mechanical Specifications

Width 40.4 mm
Height 90 mm
Depth 87 mm
Weight Approx. 0.2 kg
Enclosure Type IP20 (Open-type)
Wiring Method Screw connection terminal block

Environmental Specifications

Operating Temperature 0°C to 55°C
Storage Temperature –40°C to 85°C
Humidity 5% to 95% (non-condensing)
Vibration Resistance IEC 60068-2-6
Shock Resistance IEC 60068-2-27

Compliance & Certifications

CE Marked Yes
UL / cUL Listed Yes
RoHS Compliant Yes
Certifications CE, c-UL-us, C-Tick
