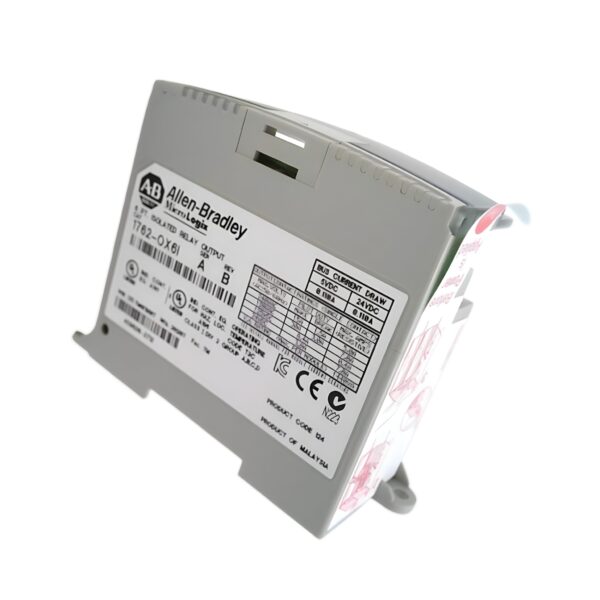

Allen Bradley 1762-OX6I Relay Output Module

£235.69 inc VAT

In Stock · Delivered in 3–5 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsAllen Bradley
Output Current 7.5A (total, resistive load)
Model 1762-OX6I Allen Bradley
Product Type Relay Output Module
Series MicroLogix 1200 Expansion I/O
Output Type Isolated relay (AC/DC compatible)
Output Voltage Range 10…230V AC / 10…30V DC
Contact Type Type C (Form C, SPDT)
Connection Type Screw terminals for secure field wiring
Voltage Range 10…230V AC / 10…30V DC operation
Mounting DIN Rail (35 mm top hat)
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It InstantlySend us the competing price or quote for a personalised offer.

🛡️ 24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

SKU: 1762-OX6I Category: Tag: Brand:
Guaranteed Safe Checkout
Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

Allen Bradley 1762-OX6I Relay Output Module

The Allen Bradley 1762-OX6I is a 6-point isolated relay output module for the MicroLogix 1200 PLC platform, designed to provide flexible switching of both AC and DC loads. Each output is electrically isolated, allowing for high versatility in controlling multiple circuit types within a single compact module.

Technical Specifications

Model 1762-OX6I Allen Bradley
Series MicroLogix 1200 Expansion I/O
Product Type Relay Output Module
Number of Digital Outputs 6 (Form C relays – SPDT)
Number of Digital Inputs 0
Output Type Isolated relay (AC/DC compatible)
Output Voltage Range 10…230V AC / 10…30V DC
Output Current 7.5A (total, resistive load)
Output Configuration Normally Open (NO) / Normally Closed (NC)
Field Connection Screw terminals
Short-Circuit Protection No (external fusing recommended)

Electrical & Performance Details

Outputs 6 independent relays with isolation between channels
Voltage Range 10…230V AC / 10…30V DC operation
Contact Type Type C (Form C, SPDT)
Switching Capacity Suitable for resistive, inductive, and pilot-duty loads
Isolation Each relay channel electrically isolated for mixed-voltage operation
Interface Directly connects to MicroLogix 1200 controller base

Mechanical Specifications

Height 90 mm
Width 40.4 mm
Depth 87 mm
Mounting DIN Rail (35 mm top hat)
Connection Type Screw terminals for secure field wiring

Environmental & Application Suitability

Typical Applications Lighting control, solenoids, valves, motor contactors, alarms, and general automation
Use Case Expands the output capability of MicroLogix 1200 systems with isolated AC/DC relay control
Installation Environment Industrial control enclosures with suitable ambient conditions

Compliance & Certifications

CE Marked Yes
UL / cUL Listed Yes
RoHS Compliant Yes

Related Products & Helpful Links

Frequently Asked Questions

How can I check whether 1762-OX6I is the correct replacement?

Check the exact manufacturer part number, electrical ratings, interface type, mounting and equipment compatibility against your existing equipment and the manufacturer’s datasheet.

How quickly can 1762-OX6I be delivered?

This product is listed as in stock, with estimated UK delivery in 3–5 working days. Delivery depends on order confirmation, courier services and destination.

Where can I check specifications and compatibility?

Review the specification information above and the product’s Downloads or Data Sheets tab, where documents are supplied. Our team can help check part numbers and installation compatibility.

What warranty does Drive Outlet Megastore offer?

Drive Outlet offers its own 2-year return-to-base warranty unless otherwise stated. Manufacturer warranties may not apply; please review the Terms and Conditions before ordering.

Weight 3 kg
