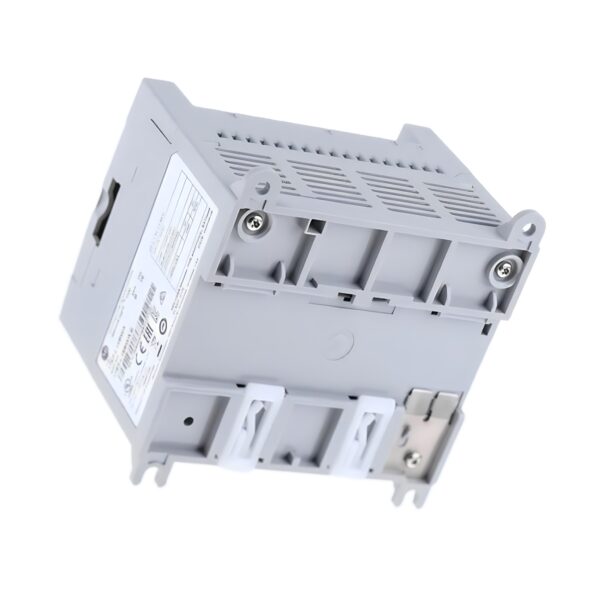

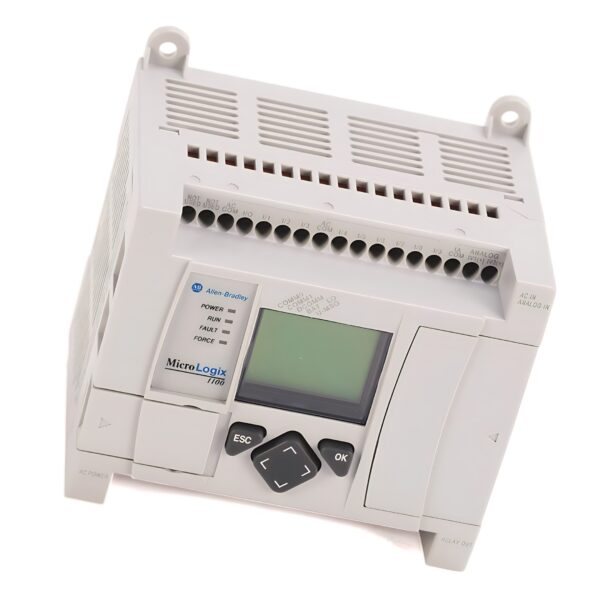

Allen Bradley 1763-L16BWA MicroLogix 1100 Small Logix Controller
The AB 1763-L16BWA is a compact programmable logic controller from the MicroLogix 1100 family, engineered for small-scale automation tasks. It features 10 digital inputs (24 VDC), 2 analog inputs (0–10 VDC), and 6 relay outputs, making it a flexible solution for basic control applications.
Powered by 120–240 VAC, the 1763L16BWA includes an integrated LCD, onboard Ethernet port, and support for online editing. Although discontinued by the manufacturer, it remains in active use across legacy systems due to its ease of programming and reliable performance.
Technical Specifications
| Model: |
MicroLogix 1763-L16BWA
|
| Series: |
MicroLogix 1100
|
| Device Type: |
Small Logic Controller
|
| Status: |
Discontinued
|
| Application: |
General-purpose automation and OEM machines
|
| Display: |
Built-in LCD for diagnostics and monitoring
|
| Mounting: |
DIN rail or panel mount
|
Electrical Specifications
| Power Supply: |
120–240 VAC
|
| Digital Inputs: |
10 x 24 VDC
|
| Digital Outputs: |
6 x Relay (dry contact)
|
| Analog Inputs: |
2 x 0–10 VDC
|
| Output Type: |
Relay
|
| Input Voltage Range: |
24 VDC for digital inputs
|
| Relay Output Voltage: |
30 VDC / 240 VAC max (resistive load)
|
Communication & Expansion
| Communication Ports: |
1 x RS-232, 1 x RS-485, 1 x Ethernet/IP
|
| Expansion Support: |
Supports up to 4 1762 I/O modules
|
| Programming Software: |
RSLogix 500 or Connected Components Workbench (CCW)
|
| Real-Time Clock: |
Integrated
|
| Data Logging & Messaging: |
Supported
|
Mechanical Specifications
| Width: |
Approx. 120 mm
|
| Height: |
Approx. 90 mm
|
| Depth: |
Approx. 87 mm
|
| Weight: |
~0.4 kg
|
| Enclosure Type: |
IP20 (Open-type)
|
Environmental Specifications
| Operating Temperature: |
0°C to 55°C
|
| Storage Temperature: |
–40°C to 85°C
|
| Relative Humidity: |
5% to 95% (non-condensing)
|
| Vibration Resistance: |
IEC 60068-2-6
|
| Shock Resistance: |
IEC 60068-2-27
|
Compliance & Certifications
| CE Marked: |
Yes
|
| UL / cUL Listed: |
Yes
|
| RoHS Compliant: |
Yes
|
| Certifications: |
c-UL-us, CE, C-Tick, KC
|
Key Features & Benefits
✅
| Compact Control: |
10 digital inputs, 6 relay outputs, and 2 analog inputs in one unit.
✅ |
| Integrated Display: |
Built-in LCD for simple diagnostics and status monitoring.
✅ |
| Multi-Protocol Support: |
Ethernet/IP, RS-232, and RS-485 onboard.
✅ |
| Modular Expansion: |
Compatible with 1762 expansion I/O modules.
✅ |
| Legacy Reliability: |
Still in use across many applications despite being discontinued.
|
📦 Legacy Support from Drive Outlet Megastore
At Drive Outlet Megastore we offer unbeatable Allen Bradley 1763-L16BWA prices where stock is available. Though this MicroLogix 1100 model has been discontinued, we continue to support legacy installations with stocked and refurbished units.
Check stock now or request a quote
Small controller. Lasting value. — Drive Outlet Megastore
