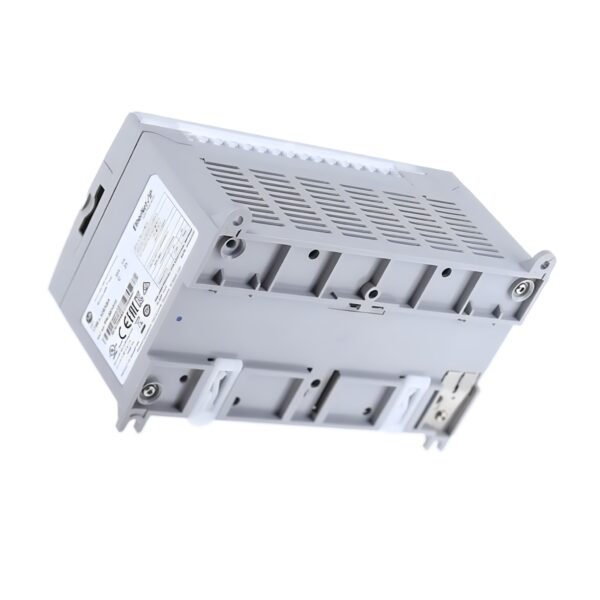

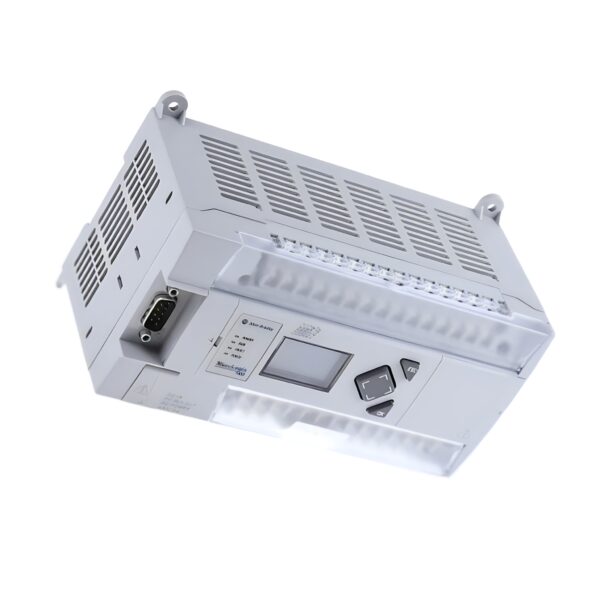

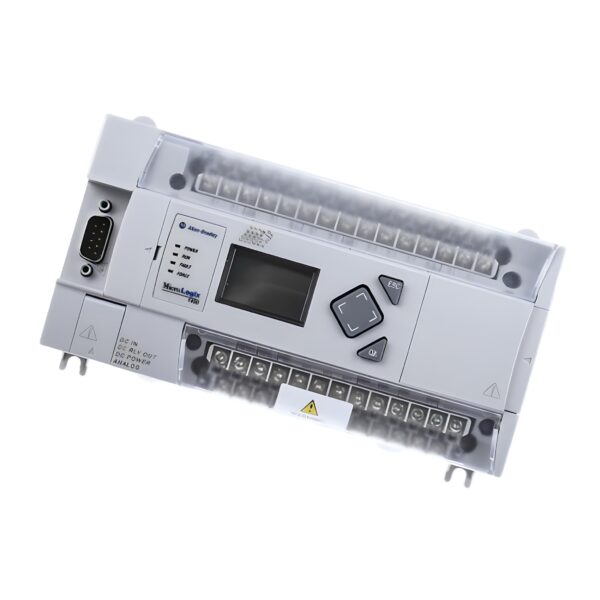

Allen Bradley 1766-L32BXBA MicroLogix 1400 Controller

£910.75 inc VAT

In Stock · Delivered in 3–5 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsAllen Bradley
Model 1766L32BXBA
Series MicroLogix 1400
Type Programmable Logic Controller (PLC)
Digital Output Current per Channel Up to 1 A (relay), 0.5 A (DC)
Input Type 20 x 24V DC digital (12 fast)
Output Type 6 x 24V DC digital (3 fast), 6 x relay
Mounting Type DIN rail or direct wall mount
Digital Input Voltage 24 V DC (sink/source)
Enclosure Type Rating Open-type
Resolution (Analog I/O) 10-bit
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It!Send us the competing price or quote for a personalised offer.

🛡️ 24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

SKU: 1766-L32BXBA Category: Tags: , , Brand:
Guaranteed Safe Checkout
Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

Allen Bradley 1766-L32BXBA MicroLogix 1400 Controller

The AB 1766-L32BXBA is a high-performance MicroLogix 1400 programmable logic controller (PLC), offering enhanced I/O capability, built-in analog functions, and versatile communication options in a compact form factor. Equipped with 20 digital inputs (including 12 high-speed), 12 digital outputs (6 relay + 6 DC), 4 analog inputs, and 2 analog outputs, this unit is engineered for demanding automation and machine control tasks.

Technical Specifications

Model 1766L32BXBA
Series MicroLogix 1400
Type Programmable Logic Controller (PLC)
Input Type 20 x 24V DC digital (12 fast)
Output Type 6 x 24V DC digital (3 fast), 6 x relay
Analog Inputs 4 (voltage)
Analog Outputs 2 (voltage)
User Program Memory 20 KB
Mounting Type DIN rail or direct wall mount
Display Integrated LED/LCD
Input Power Supply 24V DC

Electrical Specifications

Digital Input Voltage 24 V DC (sink/source)
Digital Output Voltage 24 V DC (source) and Relay 10–230 V AC/DC
Digital Output Current per Channel Up to 1 A (relay), 0.5 A (DC)
Analog Input Range 0–10 V DC
Analog Output Range 0–10 V DC
Input Impedance Approx. 200 kΩ
Resolution (Analog I/O) 10-bit
Power Consumption Approx. 6.7 W
Isolation Optical and transformer isolation between I/O and logic

Communication Interfaces

Ethernet Ports 1 x 10/100 Mbps (EtherNet/IP, Modbus TCP)
Serial Ports 2 x RS-232/RS-485 (DF1, Modbus RTU/ASCII)
USB Programming Port No
Protocol Support – EtherNet/IP – Modbus RTU – Modbus TCP – DF1
HMI/SCADA Integration Compatible with FactoryTalk View, RSLogix 500

Mechanical Specifications

Height 87 mm
Width 180 mm
Depth 90 mm
Weight Approx. 640 g
Housing Rugged thermoplastic
Mounting Orientation Horizontal
Front Installation Possible Yes

Environmental Specifications

Degree of Protection IP20
Operating Temperature 0…55 °C
Storage Temperature –40…85 °C
Relative Humidity 5% to 95% non-condensing
Vibration Resistance 2.5 g @ 10–500 Hz
Shock Resistance 30 g operational
Pollution Degree 2
Enclosure Type Rating Open-type
Certifications CE, UL, c-UL, CSA

Compliance & Safety

Category (EN 954-1) Category 3
Functional Safety Rating Not SIL rated
Standards Met EN 61131-2, IEC 61010
Application Suitability Industrial automation, OEM machinery, remote control systems

Related Products & Helpful Links

Frequently Asked Questions

How can I check whether 1766-L32BXBA is the correct replacement?

Check the exact manufacturer part number, electrical ratings, interface type, mounting and equipment compatibility against your existing equipment and the manufacturer’s datasheet.

How quickly can 1766-L32BXBA be delivered?

This product is listed as in stock, with estimated UK delivery in 3–5 working days. Delivery depends on order confirmation, courier services and destination.

Where can I check specifications and compatibility?

Review the specification information above and the product’s Downloads or Data Sheets tab, where documents are supplied. Our team can help check part numbers and installation compatibility.

What warranty does Drive Outlet Megastore offer?

Drive Outlet offers its own 2-year return-to-base warranty unless otherwise stated. Manufacturer warranties may not apply; please review the Terms and Conditions before ordering.

Weight 0.64 kg
