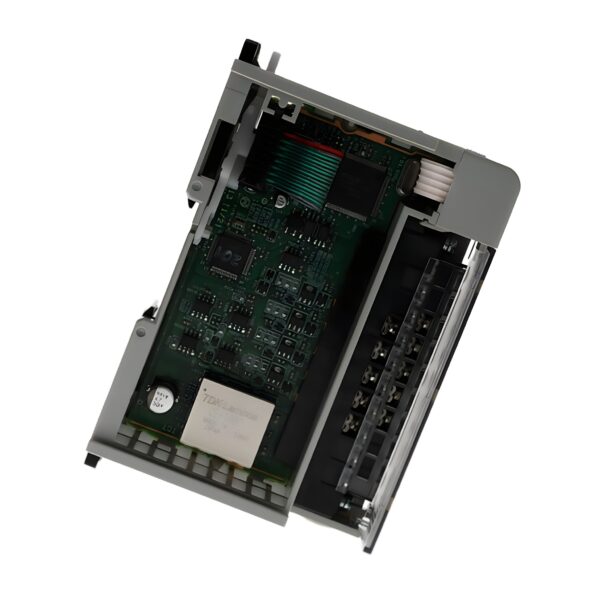

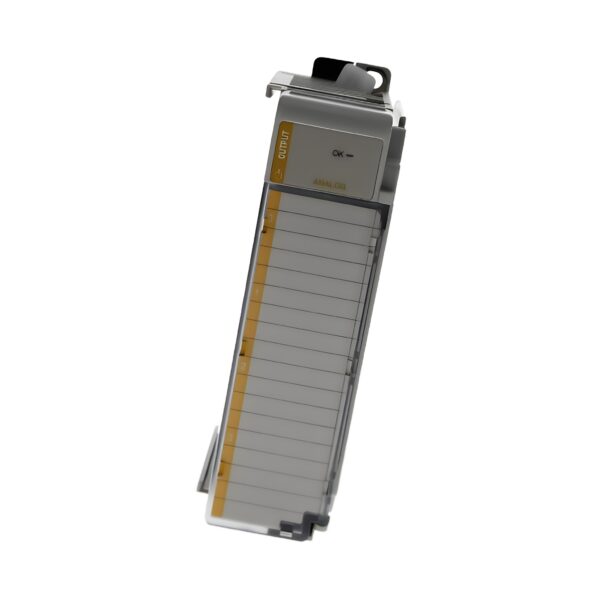

Allen Bradley 1769-OF4 Analog Output Module

The AB 1769-OF4 is a high-performance Compact I/O analog output module designed for use with CompactLogix and MicroLogix 1500 systems. With four individually configurable analog output channels, it supports both current (0–20 mA) and voltage (±10V) signals. This module is ideal for driving analog actuators, proportional valves, and other devices in industrial automation environments.

With high resolution and robust output capabilities, the 1769-OF4 enhances precision and flexibility in analog control applications.

Technical Specifications

Manufacturer: Allen Bradley
Series: Compact I/O
Part Number: 1769OF4
Module Type: Analog Output
Resolution: 16-bit (hardware), 15-bit effective

Electrical Specifications

Analog Outputs: 4 channels
Output Signal Ranges:
– Voltage: ±10 V
– Current: 0–20 mA
Isolation Voltage: 30V (continuous), basic insulation
Conversion Rate: ~2.5 ms/channel
Accuracy: ±0.5% full scale typical
Load Resistance – Voltage Mode: >1 kΩ
Load Resistance – Current Mode: 0–500 Ω
Output Update Rate: All channels updated every scan
Power Supply Voltage: Supplied from backplane

Mechanical Specifications

Width: 87 mm
Height: 118 mm
Depth: 35 mm

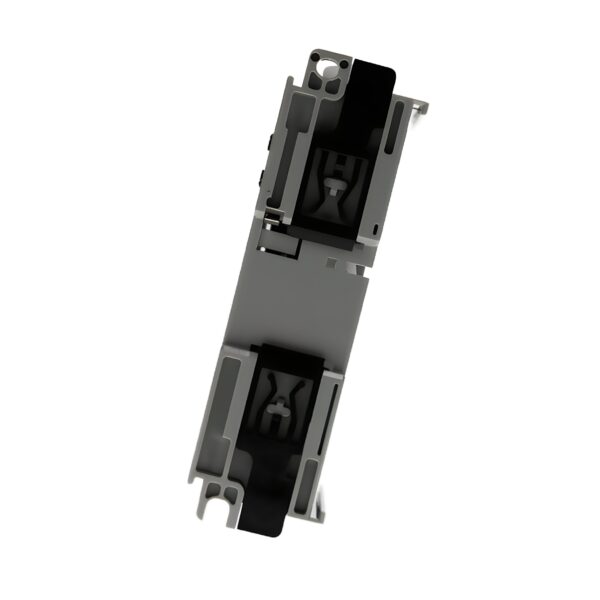

Mounting Type: DIN rail
Plug Type: Screw terminal block
Front Installation Possible: Yes

Environmental Specifications

Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 5–95% non-condensing
IP Rating: IP20
Pollution Degree: 2
Shock: 30 g
Vibration: 5 g at 10…500 Hz

Compliance & Certifications

CE Marked: Yes
cULus Listed: Yes
RoHS Compliant: Yes
ATEX Certified: No
Explosion Safety (Gas/Dust): None
Conformal Coated: No

Supported Protocols:
– EtherNet/IP (via parent controller)
– TCP/IP: Yes (via system)
– Modbus/SERCOS/DeviceNet: Not directly supported by module

Key Features & Benefits

✅ 4 Analog Outputs – Supports both ±10V and 0–20mA signals for versatile control

✅ High Resolution – 16-bit digital-to-analog conversion ensures precise output control

✅ Compact Form Factor – Ideal for space-constrained control panels and systems

✅ Compatible with CompactLogix & MicroLogix 1500 – Seamless integration into Rockwell platforms

✅ Simple Installation – Screw terminal connection and DIN rail mountable

✅ Field-Proven Reliability – Trusted by OEMs and system integrators worldwide
