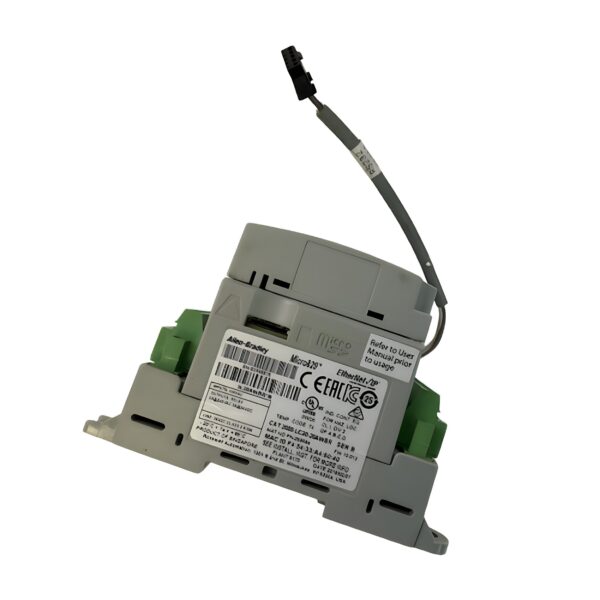

Allen Bradley 2080-LC20-20AWBR Micro820 Programmable Controller – 20 I/O, Ethernet/IP, Relay Outputs, Analog I/O, MicroSD Support

The Allen Bradley 2080-LC20-20AWBR is a compact, flexible Micro820 programmable logic controller (PLC) designed for small machine automation, OEM control panels, and distributed control applications. Offering a mix of digital, analog, relay, and communication capabilities in a single, compact unit, this controller provides exceptional versatility for cost-effective automation projects.

This model features 12 digital inputs (including 8 x 110–120V AC sensing channels), 7 relay outputs, 4 configurable analog inputs with thermistor reference, and 1 analog output. A built-in EtherNet/IP port enables seamless network integration, while the RS-232/RS-485 serial port supports legacy and connected device communication. The controller also includes an internal real-time clock (RTC) and MicroSD card slot for program storage, data logging, and recipe handling.

Technical Specifications

Model: 2080-LC20-20AWBR Allen Bradley
Series: Micro820
Controller Type: Compact Programmable Logic Controller (PLC)
Digital Inputs: 12 total (8 × 110–120V AC)
Digital Outputs: 7 × Relay Outputs
Analog Inputs: 4 configurable (thermistor-capable)
Analog Outputs: 1
Memory Size: 20 kB user program memory
Communication Ports: 1 × Ethernet/IP, 1 × RS-232/485, 1 × USB programming port
Expansion: Supports 2 plug-in modules
Storage: MicroSD Card Supported
Display: Integrated status/diagnostic display

Communication & Networking

• EtherNet/IP: Supported for PLC, SCADA, and HMI communication
• Modbus: Native Modbus RTU (serial) support
• Serial Interface: RS-232/485 non-isolated
• Programming Software: Connected Components Workbench (CCW)

Mechanical & Installation Specifications

• Height: 90 mm
• Width: 100 mm
• Depth: 80 mm
• Mounting: DIN rail, panel, or direct wall mounting
• Form Factor: Compact controller with removable terminal blocks (RTB)

Environmental & Application Suitability

• Operating Environment: Industrial automation and OEM equipment
• Typical Uses: Small machinery, HVAC control, pump and motor control, packaging systems
• Performance Level / SIL: Not rated for safety control functions

Compliance & Certifications

• CE Marked: Yes
• UL / cUL Listed: Yes
• RoHS Compliant: Yes

Key Features & Benefits

✅ 20 integrated I/O channels for versatile machine control in one compact unit.

✅ Built-in Ethernet/IP enables easy network and PLC-to-HMI communication.

✅ Relay outputs allow direct switching of contactors and field devices.

✅ Analog input & output channels for temperature, pressure, and process control.

✅ MicroSD support for data logging, recipes, and easy program backup.

✅ Supports Micro800 plug-in modules for scalable expansion.

✅ Ideal for OEM and distributed automation where cost and footprint matter.
