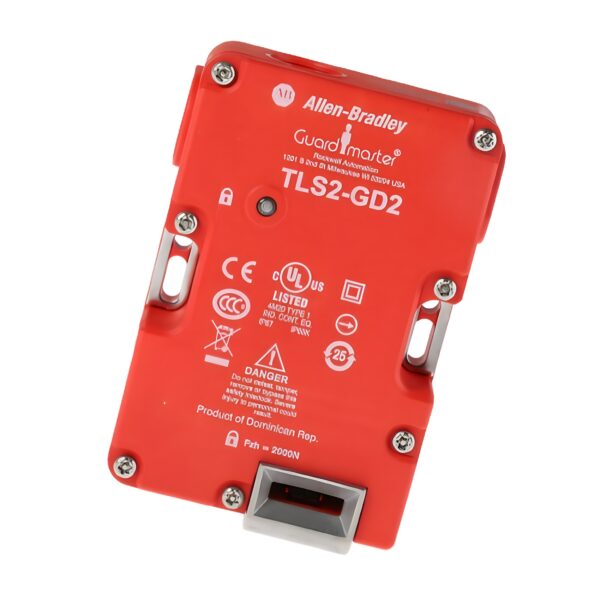

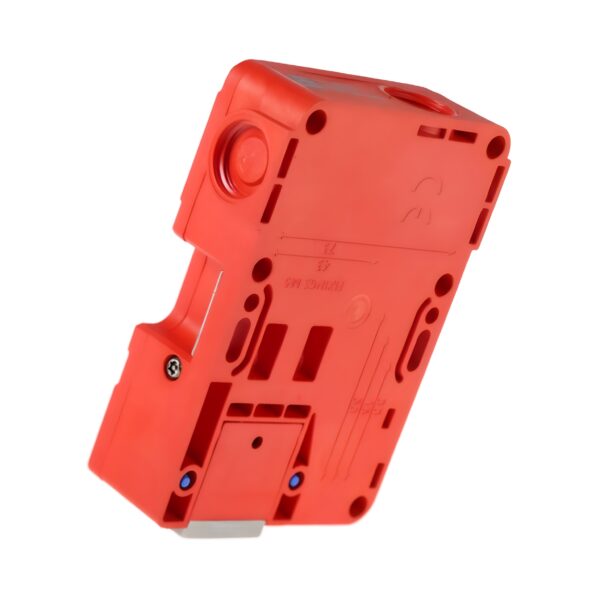

Allen Bradley 440G-T27127 Guard Locking Switch

The AB 440G-T27127 is a TLS-GD2 guard locking safety switch designed for machine access control in safety-related applications. Operating on 24V AC/DC, it provides 2 normally closed (safety) and 1 normally open (auxiliary) contacts in a robust plastic housing. This model uses the operating current principle and offers a high clamping force of 2000 N to secure guards and protect personnel in hazardous zones.

With an ingress protection rating of IP67, quick-break contacts, and M20 conduit entry, the 440G-T27127 is built for demanding industrial environments. This model does not include an actuator, allowing for flexibility in actuator selection based on application needs.

Technical Specifications

Model: 440GT27127
Series: TLS-GD2
Type: Guard Locking Safety Switch
Solenoid Voltage: 24V AC/DC
Contact Configuration: 2 x NC (safety), 1 x NO (auxiliary)
Actuator Included: No
Guard Locking Type: Operating current principle
Switching Contact Type: Quick-break
Conduit Entry: M20 (metric cable entry)
Application: Machine guarding, gate interlocking, personnel protection

Electrical Specifications

Rated Control Supply Voltage (AC 50 Hz): 24 V
Rated Control Supply Voltage (DC): 24 V
Rated Operational Current:
– 6 A @ 125 V AC (AC-15)
– 3 A @ 230 V AC (AC-15)
– 2 A @ 24 V DC (DC-13)
Contact Type: Electromechanical
Number of Changeover Contacts: 0
Number of Normally Closed Contacts: 2
Number of Normally Open Contacts: 1
Safety Function Compliance: Yes
Actuator Release: Requires external actuator (not included)

Mechanical Specifications

Width: 91 mm
Height: 126 mm
Depth: 33 mm
Housing Material: Plastic
Clamping Force: 2000 N
Housing Coating: Uncoated
Mounting Type: Surface mount
Connection Type: M20 metric cable entry
Unlocking Type: No escape release
Status Indication: Yes (visual)

Environmental Specifications

Operating Temperature Range: –20…+60 °C
Storage Temperature: –40…+85 °C
Relative Humidity: 5%…95% non-condensing
IP Rating: IP67 (dust-tight, waterproof)
Explosion Safety – Gas: None
Explosion Safety – Dust: None
Shock/Vibration: IEC 60068 compliant
Certifications: CE, UL, cULus, RoHS
Application in Commercial/Residential Areas: Permitted

Compliance & Communication

Safety Standards: EN ISO 14119, ISO 13849-1
Safety Outputs: Mechanically operated NC contacts
Auxiliary Monitoring: 1 x NO contact
Actuator Monitoring: Yes (with compatible actuator)
Remote Reset: Not applicable
Communication Protocols: Not supported (hardwired device)

Key Features & Benefits

✅ Dual NC Safety Contacts – Complies with highest safety requirements for machine access protection

✅ 24V AC/DC Operation – Suitable for both AC and DC control systems

✅ High Clamping Force – Secures guards with up to 2000 N retention force

✅ Compact IP67 Housing – Built for washdown or dusty environments

✅ M20 Conduit Entry – Standard metric entry for simplified wiring

✅ Flexible Actuator Configuration – Compatible with a variety of TLS-GD2 actuators (sold separately)
