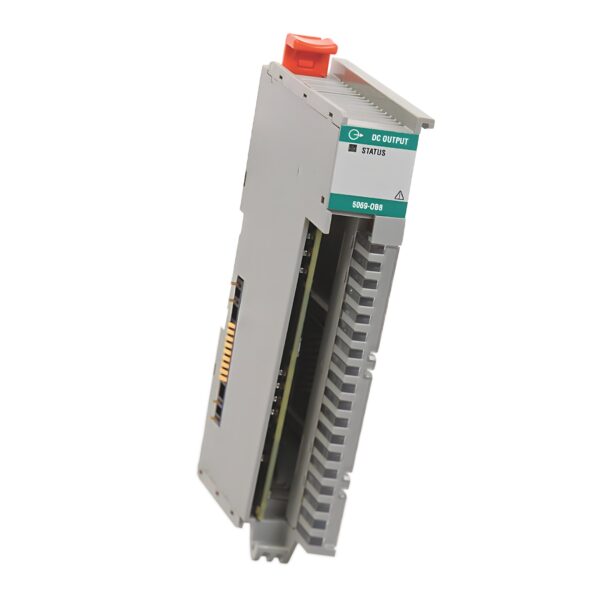

Allen Bradley 5069-OB8 Compact 5000 DC Output Module

The AB 5069-OB8 is a high-performance 8-channel discrete output module designed for use in CompactLogix™ 5380 and 5480 systems. Part of the Compact 5000™ I/O platform, this module provides 2A per channel output current, making it ideal for applications with high current digital loads.

It features a plug-in connection system, robust DC transistor outputs, and a fast 10 ms signal response, providing reliable actuation of solenoids, contactors, relays, or indicator devices across a 12–24V DC range.

Technical Specifications

Series: Compact 5000 I/O
Product Type: Digital Output Module
Model Number: 5069OB8
Channels: 8 x Sourcing (High Current)
Output Type: DC Transistor (Sourcing)
Connection Type: Plug-in terminal block
Mounting: DIN rail compatible
Chassis Platform: CompactLogix 5380 / 5480

Electrical Specifications

Voltage Range: 12…24 V DC
Output Current per Channel: 2 A
Total Output Current (Module): Up to 16 A (depending on system power budget)
Output Type: Sourcing (PNP), Transistor
Short-Circuit Protection: No
Signal Delay (On/Off): 10 ms
Isolation: Channel-to-backplane isolation (if applicable, via system design)

Mechanical Specifications

Width: 25.56 mm
Height: 144.57 mm
Depth: 109.09 mm
Housing: Compact, high-density form factor
Mounting Method: Rail-mounted within Compact 5000 I/O system
Connection: Plug-in connector (removable terminal block or cable interface)

Environmental Specifications

Operating Temperature: 0…60 °C
Storage Temperature: -40…85 °C
Humidity: 5–95% non-condensing
Vibration & Shock: Meets IEC standards for industrial environments
Ingress Protection: IP20 (when installed in enclosure)

Compliance & Standards

Certifications: CE, cULus, RoHS
Conformity: Meets IEC 61131-2 for programmable controller I/O
Product Category: Discrete I/O Modules
Rockwell Compatibility: Fully supported within Studio 5000 Logix Designer

Key Features & Benefits

✅ High Current Output – Supports up to 2A per channel, suitable for direct control of inductive or high-power loads

✅ Fast Switching – Optimized 10 ms signal delay ensures responsiveness in demanding control loops

✅ Compact Design – Slim 25 mm profile maximizes panel space efficiency in high-density systems

✅ Wide DC Range – Compatible with both 12V and 24V DC output applications

✅ Plug-in Connectivity – Quick field wiring and easy replacement with plug-in terminal blocks

📦 Purchase the Allen Bradley 5069-OB8 at Drive Outlet Megastore

At Drive Outlet Megastore we offer unbeatable Allen Bradley 5069-OB8 prices. With 7 units in stock and ready for next-day shipping, this high-current DC output module is perfect for demanding CompactLogix control applications.

Order now or request a quote directly from our sales team

Drive Outlet Megastore – your trusted source for Allen Bradley CompactLogix I/O modules, controllers, and automation accessories.
