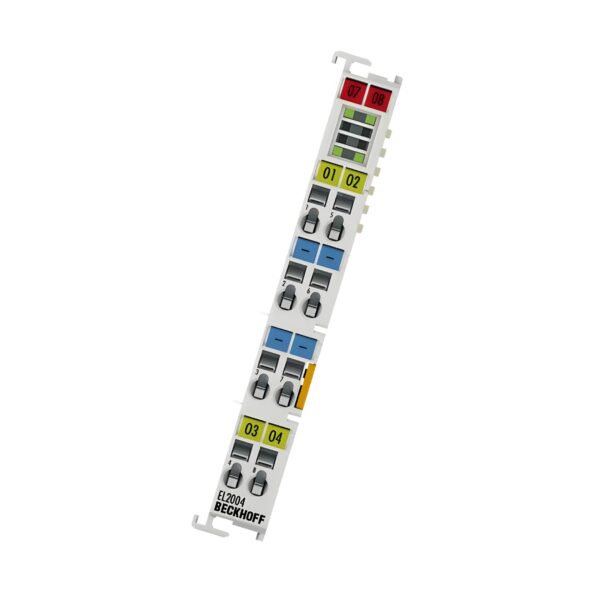

Beckhoff EL2004 EtherCAT Terminal

The Beckhoff EL2004 is a 4-channel digital output EtherCAT Terminal designed for switching binary control signals from an automation system to actuators at the process level. Each output supports up to 0.5 A and is electrically isolated to ensure safe signal transmission. The terminal features short-circuit protection, reverse polarity protection, and supports various load types including ohmic, inductive, and lamp loads.

Compact, robust, and DIN rail mountable, the EL2004 is ideal for distributed I/O applications in harsh industrial environments.

Technical Specifications

Manufacturer: Beckhoff
Part Number: EL2004 Beckhoff
Product Type: Digital Output Terminal
Number of Outputs: 4
Nominal Voltage: 24 V DC (-15%/+20%)
Max. Output Current: 0.5 A per channel (short-circuit proof)
Load Type Compatibility: Ohmic, inductive, lamp load
Switching Times: TON: 60 µs, TOFF: 300 µs
Reverse Voltage Protection: Yes
Breaking Energy: < 150 mJ/channel
Process Image Bit Width: 4 outputs
Electrical Isolation: 500 V (E-bus / field potential)
Special Features: Short-circuit protection, reverse polarity protection

Electrical & Power

Power Supply: Via power contacts
Current Consumption (E-bus): Typ. 100 mA
Current Consumption (Power Contacts): Typ. 15 mA + load
Distributed Clocks: Not supported
Maximum Load (Power Contacts): 10 A

Mechanical Specifications

Dimensions (W x H x D): 12 mm x 100 mm x 68 mm
Housing Type: EL-12-8pin / ES-12-8pin
Material: Polycarbonate
Installation: DIN rail mounting (EN 60715)
Wiring Method:
– Solid: 0.08…2.5 mm²
– Flexible: 0.08…2.5 mm²
– Ferrule: 0.14…1.5 mm²
AWG Range: AWG28…14 (solid/flexible), AWG26…16 (ferrule)
Stripping Length: 8…9 mm / 9…10 mm
Side-by-Side Mounting: Double slot and key connection

Environmental Conditions

Operating Temperature: -25°C to +60°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 95% (non-condensing)
Vibration/Shock Resistance: EN 60068-2-6 / EN 60068-2-27
EMC Compliance: EN 61000-6-2 / EN 61000-6-4
IP Rating: IP20

Certifications & Compliance

Approvals: CE, CCC, UL, ATEX, IECEx, DNV GL
ATEX Marking: II 3 G Ex ec IIC T4 Gc
IECEx Marking: Ex ec IIC T4 Gc

Key Features

✅ 4-Channel Digital Output: Compact and reliable for 24 V DC applications.

✅ Short-Circuit Protection: Robust outputs with automatic recovery.

✅ Flexible Load Compatibility: Handles ohmic, inductive, and lamp loads.

✅ DIN Rail Mounting: Space-saving design for control panels.

✅ Status LEDs: Quick channel diagnostics.

📦 Buy Beckhoff EL2004 Digital Output Terminal – In Stock Now

At Drive Outlet Megastore we offer unbeatable Beckhoff EL2004 prices.

Ideal for machine control systems requiring reliable and safe 24 V DC outputs with flexible load handling.

Contact us today to place your order or speak to a technical advisor.
