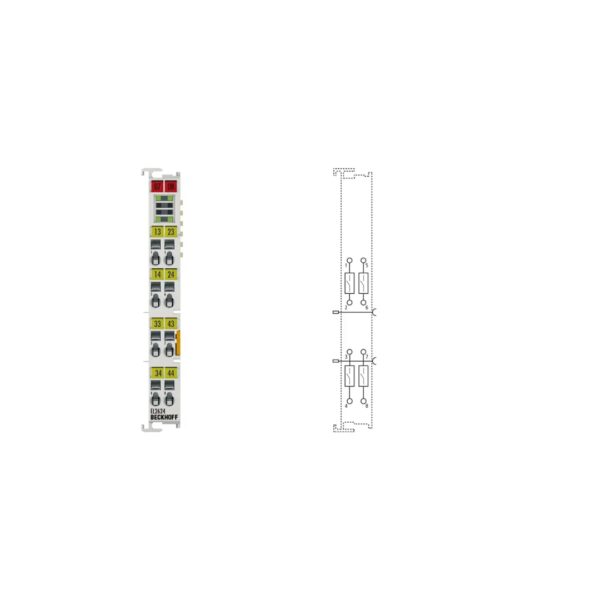

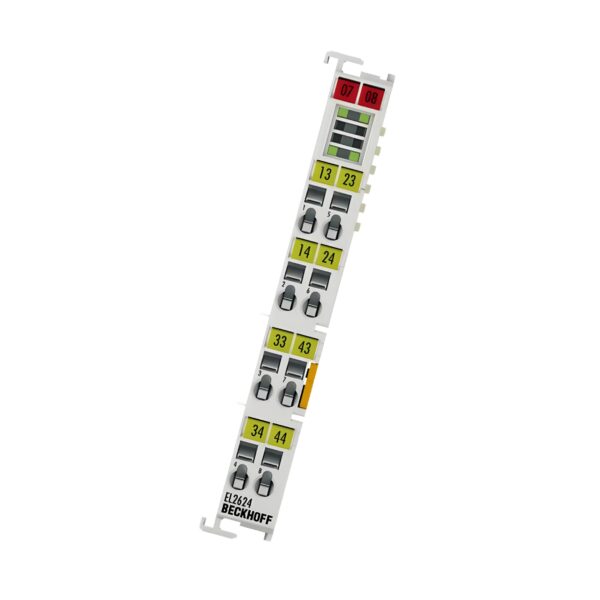

Beckhoff EL2624 EtherCAT Terminal

The Beckhoff EL2624 is a 4-channel relay output EtherCAT Terminal designed for switching ohmic loads in both AC and DC applications. With potential-free contacts and support for up to 125 V AC or 30 V DC, this module ensures safe and isolated switching in industrial automation systems. Each output provides a single make contact relay with high mechanical and electrical durability, making it ideal for general-purpose switching tasks.

The EL2624 also supports standard DIN rail mounting and features LED indicators for quick status visibility.

Technical Specifications

Manufacturer: Beckhoff
Part Number: EL2624 Beckhoff
Product Type: Relay Output Terminal
Number of Outputs: 4 x Make Contacts
Nominal Voltage: 125 V AC / 30 V DC
Switching Current: 0.5 A AC / 2 A DC (ohmic load)
Minimum Load: 10 µA @ 10 mV DC
Contact Type: Potential-free
Process Image Bit Width: 4 outputs
Electrical Isolation: 500 V (E-bus / field potential)
Operating Cycles (Mechanical): Min. 100 million
Operating Cycles (Electrical): Min. 200,000 (1 A / 30 V DC)
Special Features: Relay-based switching, no address/config required

Electrical & Power

Power Supply: Via E-bus
Current Consumption (E-bus): Typ. 200 mA
Current Consumption (Power Contacts): –
Distributed Clocks: Not supported
Maximum Load (Power Contacts): 10 A

Mechanical Specifications

Dimensions (W x H x D): 12 mm x 100 mm x 68 mm
Housing Type: EL-12-8pin / ES-12-8pin
Material: Polycarbonate
Installation: DIN rail mounting (EN 60715)
Wiring Method:
– Solid: 0.08…2.5 mm²
– Flexible: 0.08…2.5 mm²
– Ferrule: 0.14…1.5 mm²
AWG Range: AWG28…14 (solid/flexible), AWG26…16 (ferrule)
Stripping Length: 8…9 mm / 9…10 mm
Side-by-Side Mounting: Double slot and key connection

Environmental Conditions

Operating Temperature: -25°C to +55°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 95% (non-condensing)
Vibration/Shock Resistance: EN 60068-2-6 / EN 60068-2-27
EMC Compliance: EN 61000-6-2 / EN 61000-6-4
IP Rating: IP20

Certifications & Compliance

Approvals: CE, UL

Key Features

✅ 4-Channel Relay Output: Potential-free contacts for safe switching.

✅ Wide Voltage Compatibility: Up to 125 V AC or 30 V DC.

✅ LED Indicators: Real-time output status display.

✅ Compact DIN Rail Design: Easy integration into control cabinets.

✅ High Durability: Up to 100 million mechanical cycles.

📦 Buy Beckhoff EL2624 Relay Output Terminal – In Stock Now

At Drive Outlet Megastore we offer unbeatable Beckhoff EL2624 prices.

Perfect for low-power AC and DC switching with complete electrical isolation, the EL2624 is a dependable solution for industrial automation tasks.

Contact us today to order or speak with our expert team.
