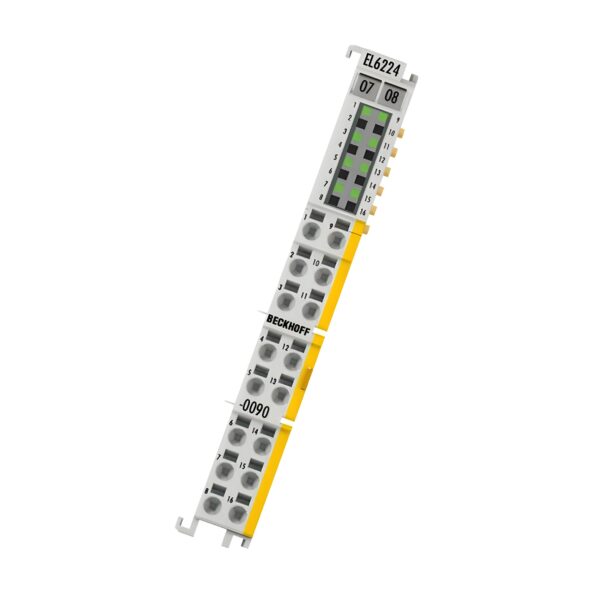

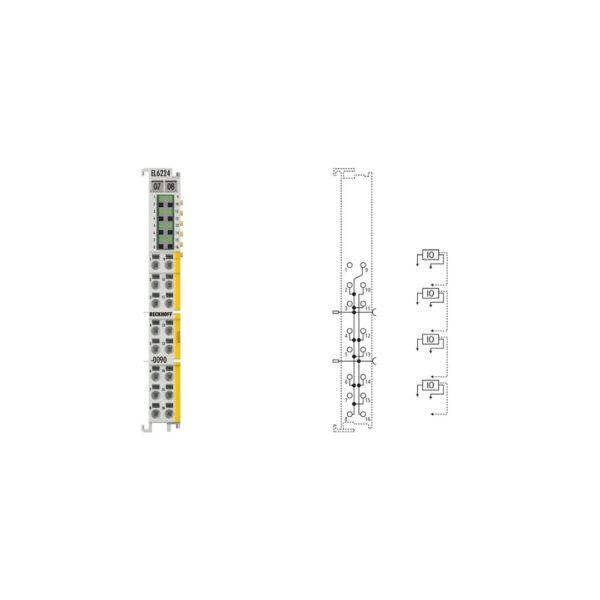

Beckhoff EL6224-0090 EtherCAT Terminal

The Beckhoff EL6224-0090 is a 4-channel communication interface for IO-Link devices, enabling seamless integration of sensors and actuators in EtherCAT networks. Supporting IO-Link specification V1.1, this module allows bi-directional parameter exchange and automatic configuration via TwinCAT or ADS. With TwinSAFE SC (Single Channel) functionality, the EL6224-0090 allows standard IO signals to be used in safety-relevant applications, making it ideal for high-integrity automation tasks. Its HD format provides 16 connection points in a compact 12 mm housing, facilitating space-saving installations.

Technical Specifications

Manufacturer: Beckhoff
Part Number: EL6224-0090 Beckhoff
Product Type: IO-Link Communication Terminal
Number of IO-Link Interfaces: 4
IO-Link Specification: V1.1
Connection Type: 3-wire
Supported Baud Rates: 4.8 kbaud, 38.4 kbaud, 230.4 kbaud
Max Cable Length: 20 m
Supply Current per Device: 500 mA
Special Features: TwinSAFE SC, TwinCAT parameterization

Electrical & Power

Field Voltage: 24 V DC via power contacts
Power Supply: Via E-bus and power contacts
Current Consumption (E-bus): Typ. 120 mA
Power Contacts: Yes
Electrical Isolation: 500 V (E-bus / signal voltage)

Mechanical Specifications

Dimensions (W x H x D): 12 mm x 100 mm x 68 mm
Housing Type: EL-12-16pin (HD with signal LEDs)
Material: Polycarbonate
Installation: 35 mm DIN rail (EN 60715)
Wiring Method:
– Solid: 0.08…1.5 mm²
– Flexible: 0.25…1.5 mm²
– Ferrule: 0.14…0.75 mm²
AWG Range:
– Solid: AWG28…16
– Flexible: AWG22…16
– Ferrule: AWG26…19
Stripping Length: 8…9 mm
Max. Power Contact Load: 10 A
Side-by-Side Mounting: Double slot and key connection

Environmental Conditions

Operating Temperature: -25°C to +60°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 95% (non-condensing)
IP Rating: IP20
Vibration/Shock Resistance: EN 60068-2-6 / EN 60068-2-27
EMC Compliance: EN 61000-6-2 / EN 61000-6-4

Certifications & Compliance

Approvals: CE, CCC, UL, ATEX, IECEx
ATEX Marking: II 3 G Ex ec IIC T4 Gc
IECEx Marking: Ex ec IIC T4 Gc

Key Features

✅ 4-Channel IO-Link Master: Supports sensors, actuators, or combinations.

✅ TwinSAFE SC Integration: Enables standard signal use in safety systems.

✅ Flexible Data Rates: Operates at 4.8, 38.4, or 230.4 kbaud.

✅ High Density Design: 16 terminals in a compact 12 mm module.

✅ TwinCAT Ready: Full support for configuration and commissioning.
