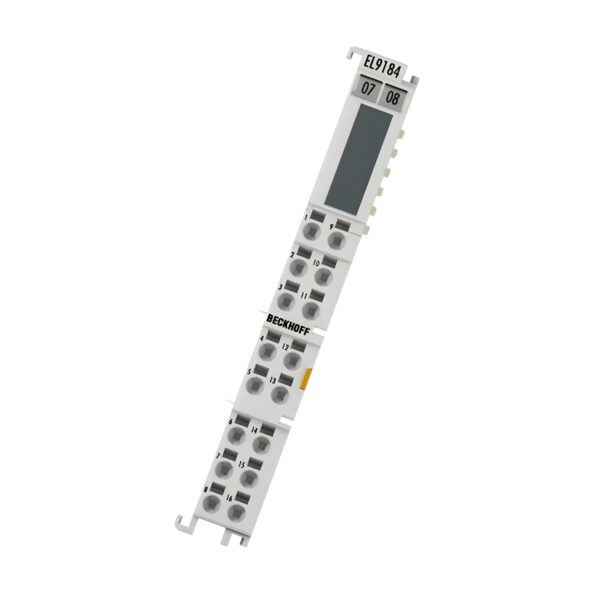

Beckhoff EL9184 EtherCAT Terminal

The Beckhoff EL9184 is a high-density potential distribution terminal designed to simplify 24 V and 0 V DC voltage tapping in EtherCAT systems. It enables eight connections each for 24 V DC and 0 V DC directly from the front of the terminal, reducing the need for external terminal blocks. Featuring tool-free direct plug-in connections for solid conductors and a compact 12 mm housing, the EL9184 supports efficient and organized voltage distribution across control cabinets.

Technical Specifications

Manufacturer: Beckhoff
Part Number: EL9184 Beckhoff
Product Type: Potential Distribution Terminal
Number of Outputs: 8 x 24 V contact, 8 x 0 V contact
Nominal Voltage: ≤ 60 V DC
Current Load Capacity: ≤ 10 A
Bit Width in Process Image: 0
Electrical Isolation: 500 V (E-bus / field potential)
Connection Facility to Power Contact: 8

Mechanical Specifications

Dimensions (W x H x D): 12 mm x 100 mm x 68 mm
Housing Type: EL-12-16pin (HD with signal LEDs)
Material: Polycarbonate
Installation: 35 mm DIN rail (EN 60715)
Side-by-Side Mounting: Supported (without PE)
Wiring Method:
– Solid: 0.08…1.5 mm² (direct plug-in)
– Flexible: 0.25…1.5 mm²
– Ferrule: 0.14…0.75 mm²
AWG Range:
– Solid: AWG28…16
– Flexible: AWG22…16
– Ferrule: AWG26…19
Stripping Length: 8…9 mm
Max. Power Contact Load: 10 A

Environmental Conditions

Operating Temperature: -25°C to +60°C
Storage Temperature: -40°C to +85°C
IP Rating: IP20
Relative Humidity: 95% (non-condensing)

Certifications & Compliance

Approvals: CE, CCC, UL, ATEX, IECEx
ATEX Marking: II 3 G Ex ec IIC T4 Gc
IECEx Marking: Ex ec IIC T4 Gc

Key Features

✅ Dual Power Tapping: 8x 24 V and 8x 0 V connections for streamlined wiring.

✅ Tool-Free Wiring: Direct plug-in technique for solid wires.

✅ Compact High Density: 12 mm wide terminal with 16 connection points.

✅ Integrated Power Contacts: Pass-through design simplifies panel layout.

✅ Robust Isolation: 500 V electrical separation from E-bus.

📦 Buy Beckhoff EL9184 Distribution Terminal – In Stock Now

At Drive Outlet Megastore we offer unbeatable Beckhoff EL9184 prices.

Perfect for clean and organized voltage distribution in control cabinets, the EL9184 is a preferred solution for dense EtherCAT terminal blocks.

Contact us today to place your order or speak with our automation experts.
