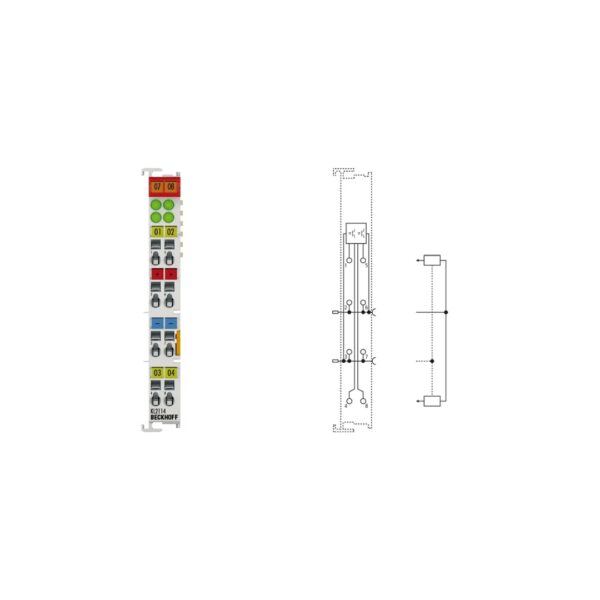

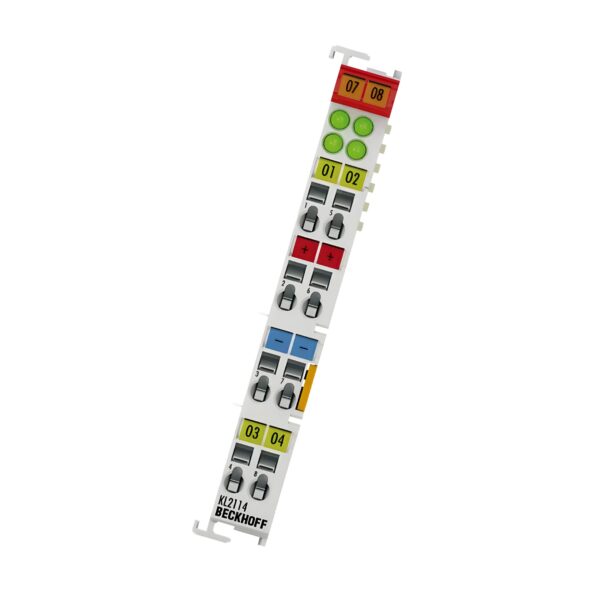

Beckhoff KL2114 Bus Terminal

The Beckhoff KL2114 is a 4-channel digital output terminal designed to connect binary control signals from automation systems to actuators at the field level. Each channel delivers up to 0.5 A at 24 V DC, suitable for ohmic, inductive, or lamp loads. The module features electrical isolation between the field and bus levels and includes integrated short-circuit protection per channel for enhanced safety. Status LEDs provide quick diagnostics for all outputs.

Compact, robust, and easy to integrate, the KL2114 is ideal for space-sensitive automation panels and industrial control systems.

Technical Specifications

Part Number: KL2114 Beckhoff
Number of Outputs: 4
Connection Technology: 2-/3-wire
Nominal Voltage: 24 V DC (-15%/+20%)
Output Current: Max. 0.5 A per channel (short-circuit proof)
Short-Circuit Current: < 2 A
Breaking Energy: < 150 mJ/channel
Load Types Supported: Ohmic, inductive, lamp load
Reverse Voltage Protection: Not included
Bit Width in Process Image: 4 outputs
Electrical Isolation: 500 V (K-bus to field)
Configuration: No address or DIP switch required

Electrical & Power

Current Consumption (Power Contacts): Typ. 30 mA + load
Current Consumption (K-bus): Typ. 9 mA
Power Contacts Max Load: 10 A

Mechanical Specifications

Dimensions (W x H x D): 12 mm x 100 mm x 68 mm
Weight: Approx. 70 g
Material: Polycarbonate
Mounting: 35 mm DIN rail (EN 60715)
Wiring Method: Spring-actuated terminals via screwdriver
Connection Cross-Section (KL-12-8pin):
– Solid: 0.08…2.5 mm²
– Flexible: 0.08…2.5 mm²
– Ferrule: 0.14…1.5 mm²
Connection Cross-Section (KS-12-8pin):
– Solid: 0.08…1.5 mm²
– Flexible: 0.08…1.5 mm²
– Ferrule: 0.14…1.5 mm²
Stripping Length: KL: 8–9 mm / KS: 9–10 mm
Design: Compact terminal housing with signal LEDs or pluggable wiring level

Environmental Conditions

Operating Temperature: 0°C to +55°C
Storage Temperature: -25°C to +85°C
Relative Humidity: 95% (no condensation)
Vibration/Shock: EN 60068-2-6 / EN 60068-2-27
Protection Rating: IP20
Installation Position: Variable

Certifications & Compliance

Standards: EN 61131-2
CE Marked: Yes
UL Listed: Yes
ATEX: II 3 G Ex ec IIC T4 Gc
IECEx: Ex ec IIC T4 Gc
Other Approvals: CCC, IECEx

Features & Benefits

✅ 4 Outputs in 12 mm Width: Ideal for space-constrained applications.

✅ Short-Circuit Protection: Reliable operation and load safety.

✅ LED Status Indicators: Quick channel diagnostics.

✅ Flexible Load Support: Handles resistive, inductive, and lamp loads.

✅ DIN Rail Mounting: Fast installation and modular expansion.

✅ Certified for Hazardous Zones: ATEX and IECEx approved.
