Danfoss 131B0494 Inverter Drive – 4kW, IP20

The Danfoss VLT® AutomationDrive FC 302 (131B0494) is designed for advanced motor control and energy-efficient operation in industrial automation systems. With 4.0 kW (5 HP) capacity, PROFIBUS DP MCA 101, and graphical LCP, this drive ensures precise control, reliability, and ease of use in demanding industrial environments.

Technical Specifications

Model: 131B0494 (FC-302P4K0T5E20H2XGXXXXSXXXXA0BXCXXXXDX)
Type: High-Efficiency Industrial Drive for Automation & Motor Control

Power & Performance

• Power Rating: 4.0 kW / 5.0 HP
• Phase: Three-phase
• Mains Voltage: 380 – 500 VAC
• RFI Filter: H2, RFI Filter

Build & Design

• Enclosure Type: IP20 / Chassis (E20)
• Frame Size: A2
• Coating PCB: Not Coated PCB
• Brake Chopper: No Brake Chopper
• Local Control Panel (LCP): Graphical LCP

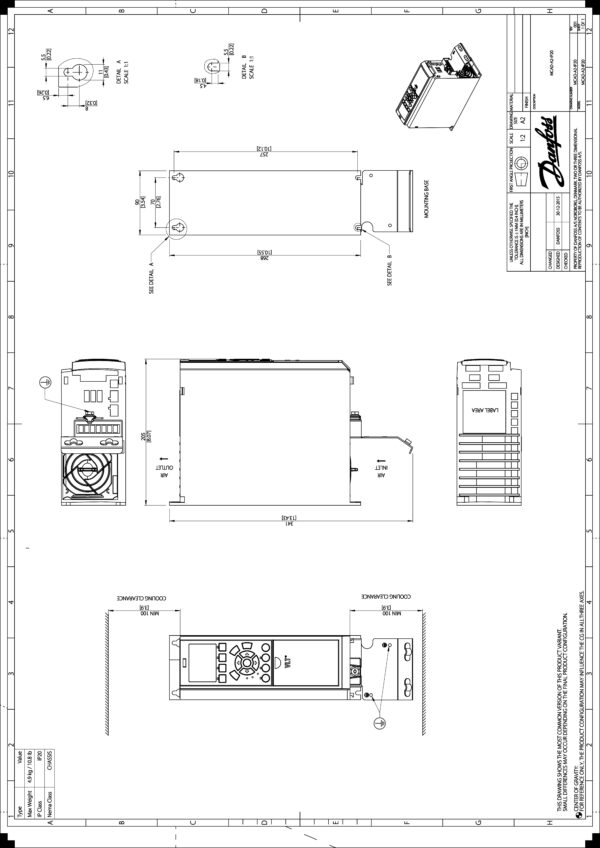

Physical Specifications

• Gross Weight: 4.76 kg
• Net Weight: 4.24 kg
• Volume: 21.569 L
• Dimensions:
  • Height: 268 mm
  • Width (no C options): 90 mm
  • Width (with two C options): 150 mm
  • Depth: 205 mm
  • Depth with Option A/B: 220 mm
• EAN: 5702427102392

Additional Options & Features

• Mains Option: No Mains Option
• Software Release: Latest Standard Software (SXXX)
• Standard Cable Entries: Included
• A Option: PROFIBUS DP MCA 101 (A0)
• B Option: No B Option (BX)

Compliance & Standards

• ECCN EU: Y901
• ECCN US: 3A999.a

Key Features & Benefits:

✅ Optimized Motor Control: Designed for industrial automation with high precision and energy efficiency.

✅ Integrated PROFIBUS DP MCA 101: Enables seamless communication in industrial automation networks.

✅ Advanced RFI Protection: Built-in H2 RFI filter ensures compliance with EMC standards.

✅ User-Friendly Graphical LCP: Intuitive Local Control Panel (LCP) for easy configuration and monitoring.

✅ Robust & Reliable: Built to withstand harsh industrial environments with continuous operation capability.
