Danfoss 131N8039 Inverter Drive – 0.55kW, IP20

The Danfoss VLT® AutomationDrive FC 302 (131N8039) is designed for precise motor control in industrial automation environments. With 0.55 kW (0.75 HP) power output, PROFINET MCA 120 connectivity, and IP20 chassis, this drive ensures seamless integration into industrial control systems, delivering energy efficiency and reliability.

Technical Specifications

Model: 131N8039 (FC-302PK55T5E20H1XXXXXXSXXXXALBXCXXXXDX)
Type: High-Performance AC Drive for Industrial Automation

Power & Performance

• Power Rating: 0.55 kW / 0.75 HP
• Phase: Three-phase
• Mains Voltage: 380 – 500 VAC
• Overload Capacity (HO Mode): 160%

Build & Design

• Enclosure Type: IP20 / Chassis (E20)
• Frame Size: A2
• RFI Filter: H1 (RFI Class A1/B – C1)
• Brake Chopper: No Brake Chopper (X)
• Local Control Panel (LCP): No LCP (X)
• Coating PCB: Not Coated (X)

Physical Specifications

• Gross Weight: 4.97 kg
• Net Weight: 4.45 kg
• Volume: 21.569 L

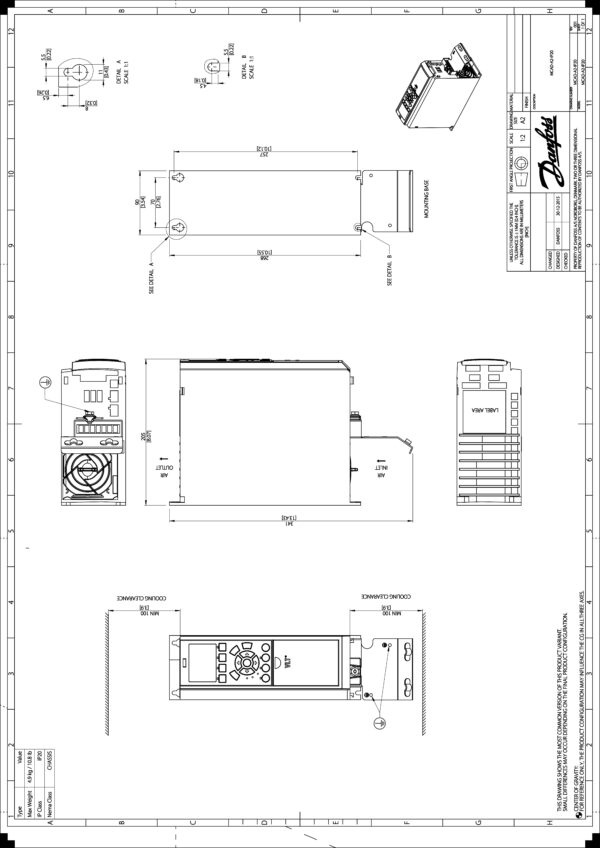

• Dimensions (H x W x D): 268 mm x 90 mm x 205 mm
• Depth with Option A/B: 220 mm
• EAN: 5702427890411

Performance & Efficiency

• Power (160% Overload – HO Mode): 0.55 kW
• kVA: 1.25
• Power Loss (HO Mode): 42 W

Electrical Ratings

• Continuous Current (HO Mode): 1.8 A
• Intermittent Current (HO Mode): 2.88 A

Additional Options & Features

• Mains Option: No Mains Option (X)
• Software Release: Latest Standard Software (SXXX)
• Software Language Pack: Standard Language Pack (X)
• A Option: PROFINET MCA 120 (AL)
• B Option: No B Option (BX)
• C0 Option MCO: No C0 Option (CX)
• C1 Option: No C1 Option (X)
• C Option Software: No Software Option (XX)
• D Option: No D Option (DX)
• Standard Cable Entries: Included

Compliance & Standards

• ECCN EU: Y901
• ECCN US: 3A999.a

Key Features & Benefits:

✅ Compact & Efficient: Space-saving A2 frame size with low energy consumption.

✅ Seamless PROFINET Integration: Advanced MCA 120 module for industrial networking.

✅ High Efficiency & Precision: 160% overload handling for demanding applications.

✅ Advanced Motor Control: Delivers stable performance for industrial automation.
