Danfoss 131F9941 Inverter Drive – 55kW, IP20

The Danfoss VLT® HVAC Drive FC 102 (131F9941) is designed for advanced HVAC applications, providing energy-efficient motor control in commercial buildings, industrial ventilation, and heating/cooling systems. With its 55 kW (75 HP) power capacity, integrated RFI Class A1/B (C1) compliance, and graphical LCP, this drive ensures seamless operation and intelligent energy management.

Technical Specifications

Model: 131F9941 (FC-102P55KT4E20H3XGXXXXSXXXXAXBXCXXXXDX)
Type: High-Efficiency AC Drive for HVAC Applications

Power & Performance

• Power Rating: 55 kW / 75 HP
• Phase: Three-phase
• Mains Voltage: 380 – 480 VAC
• RFI Filter: H3 (RFI Class A1/B (C1))

Build & Design

• Enclosure Type: IP20 / Chassis (E20)
• Frame Size: C3
• Coating PCB: Not Coated
• Brake Chopper: Not Included
• Local Control Panel (LCP): Graphical Display (G)

Physical Specifications

• Gross Weight: 37.11 kg
• Net Weight: 35.71 kg
• Volume: 188.19 L

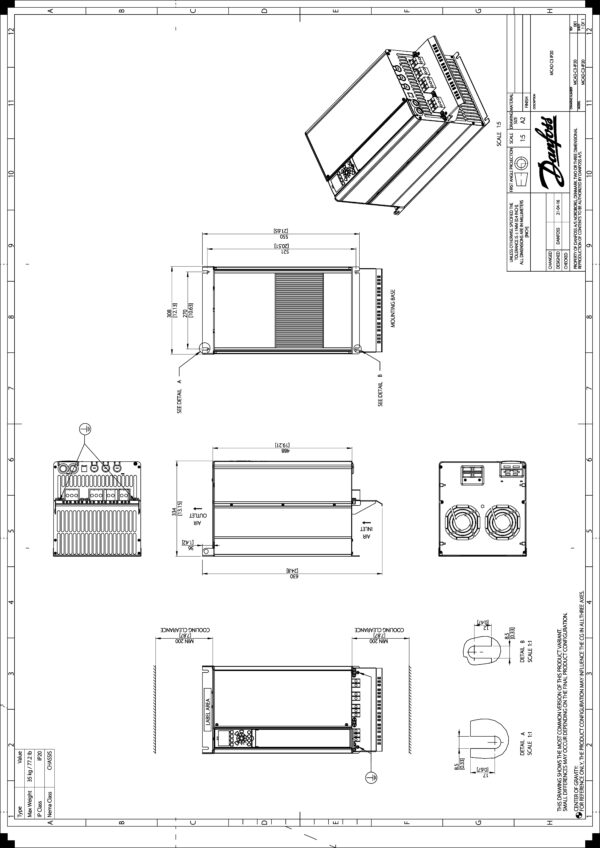

• Dimensions (H x W x D): 550 mm x 308 mm x 333 mm
• EAN: 5702427500495

Performance & Efficiency

• Power (110% Normal Overload – NO): 55 kW
• kVA: 73.4
• Power Loss (NO Mode): 1083 W

Electrical Ratings

• Continuous Current (NO): 106 A
• Intermittent Current (NO): 117 A
• Continuous Current (NO): 105 A
• Intermittent Current (NO): 116 A

Additional Options & Features

• Mains Option: No Mains Option
• Software Release: Latest Standard Software (SXXX)
• Software Language Pack: Standard Language Pack
• Standard Cable Entries: Included
• No Additional Adaptation Required

Compliance & Standards

• ECCN EU: Y901
• ECCN US: 3A999.a

Key Features & Benefits:

✅ Optimized for HVAC Applications: Precise control for fans, pumps, and compressors.

✅ Energy-Saving Performance: Reduces energy consumption with variable speed control.

✅ Graphical Control Panel: Allows intuitive setup, monitoring, and diagnostics.

✅ Durable & Reliable: Designed for high-efficiency and extended operational life.

✅ Seamless Integration: IP20-rated chassis for easy installation in control panels.
