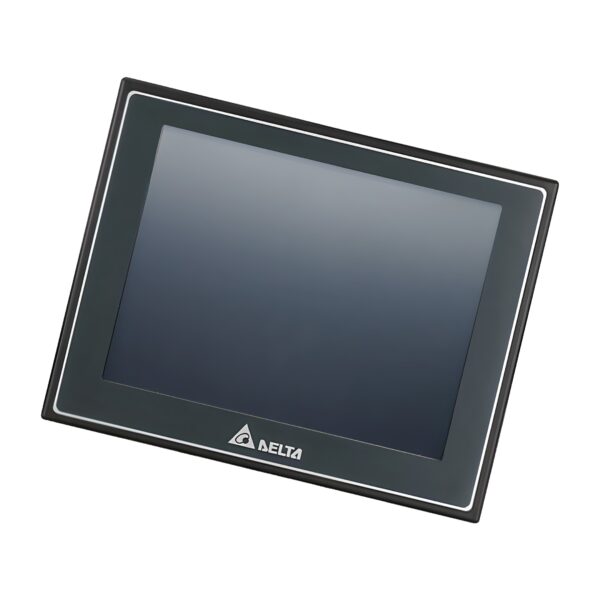

Delta DOP-107EG DOP-100 Series 7″ HMI Touchscreen
The Delta DOP-107EG is a high-brightness 7″ HMI touchscreen from the DOP-100 Series, engineered for industrial automation environments requiring multi-protocol communication and advanced visual control. With a sharp 800×600 resolution, multiple RS communication ports, and a rugged IP65 / NEMA 4 / UL Type 4X front panel, this model is ideal for both OEMs and high-reliability plant environments.
Technical Specifications
- Model: DOP-107EG Delta
- Series: DOP-100
- Display Type: 7″ TFT LCD
- Resolution: 800 × 600 pixels
- Display Colors: 16-bit
- Luminance: 450 cd/m²
- Touch Panel: Resistive
Performance & Memory
- MCU: ARM Cortex-A8, 800 MHz
- Flash ROM: 256 MB
- RAM: 256 MB
- Power Consumption: 8.4 W

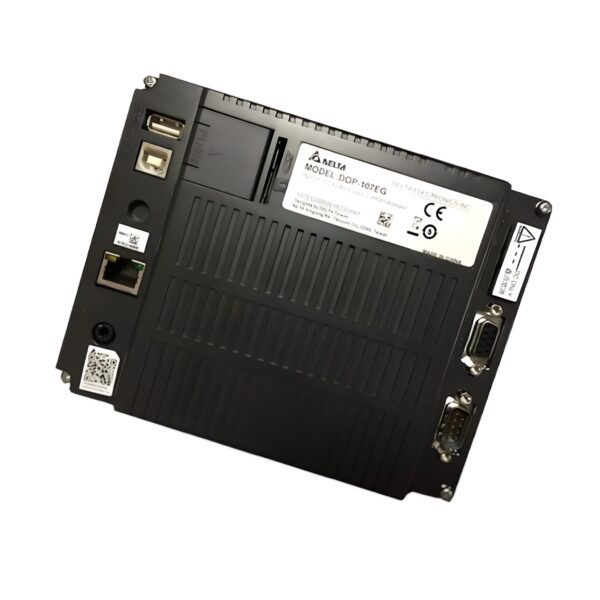

Connectivity
- COM1: RS-232 (non-isolated)
- COM2: RS-232 (with flow control) / RS-485 (non-isolated)
- COM3: RS-422 / RS-485 (non-isolated)
- USB Ports: 1 × USB Host v2.0, 1 × USB Slave v2.0
Mechanical & Environmental
-
- Front Panel Protection: IP65 / NEMA4 / UL Type 4X
- Installation: Panel Mount
- Dimensions (W × H × D): 7.24 × 5.66 × 2.02 in (184 × 144 × 51.3 mm)
Key Features & Benefits
✅ High Resolution: 800×600 display with 450 cd/m² brightness for clear visibility in industrial environments.
✅ Triple Serial Ports: Supports RS-232, RS-422, and RS-485 for versatile integration.
✅ Rugged Protection: IP65 and UL Type 4X rated front panel ensures dust and water resistance.
✅ Fast CPU: ARM Cortex-A8 processor for responsive screen interaction and real-time control.
✅ Dual USB Interfaces: For HMI programming, data logging, and peripheral expansion.
📦 Buy Delta DOP-107EG Online – In Stock & Ready to Ship
At Drive Outlet Megastore we offer unbeatable Delta DOP-107EG prices.
This industrial-grade HMI delivers high-resolution graphics, robust communication capabilities, and a rugged build, making it ideal for advanced machine interface applications.
Fast UK delivery and full 2-year warranty included.
