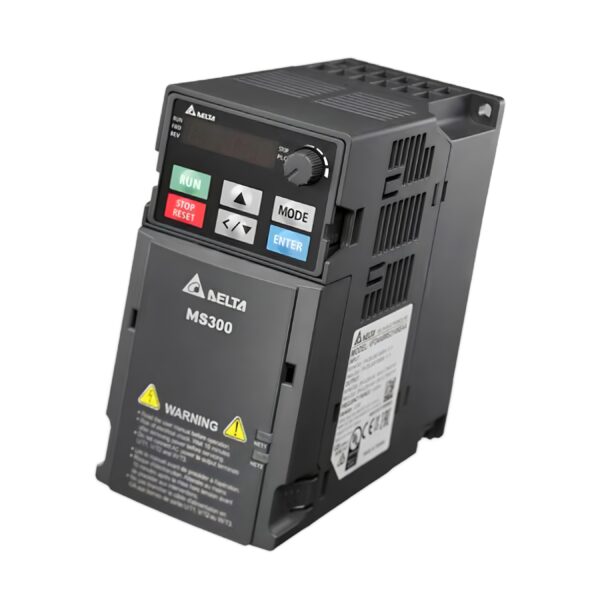

Delta VFD13AMS43ANSAA Inverter Drive – 5.5kW, IP20
The Delta VFD13AMS43ANSAA is a high-performance AC drive from the MS300 Series, engineered for compact installation and powerful motor control. It supports both normal duty and heavy duty ratings, offering output currents of up to 15.7 A (ND) and 13 A (HD). With a wide frequency range (0–599 Hz), optional EMC filtering, and IP20 protection, the VFD13AMS43ANSAA is ideal for a wide variety of industrial applications requiring precision and space-saving designs.
Technical Specifications
- Model: VFD13AMS43ANSAA Delta
- Series: MS300
- Function: Sensorless Vector AC Drive with Optional EMC Filter
- Motor Power: 7.5 HP / 5.5 kW
- Input Voltage: 460 V AC
- Input Phase: 3-Phase
- Frequency Range: 0 … 599 Hz
Electrical Characteristics
- Normal Duty Output Current: 15.7 A
- Heavy Duty Output Current: 13 A
- Overload (ND): 120% for 60 s / 150% for 3 s
- Overload (HD): 150% for 60 s / 200% for 3 s
- Motor Control Type: Sensorless Vector
- EMC Filter: Optional
Mechanical & Installation
- Frame Size: D1
- Enclosure Rating: IP20
- Dimensions (W × H × D): 4.29 × 8.15 × 6.06 in (109 × 207 × 154 mm)
- Weight: 5.29 lbs (2.4 kg)
Key Features & Benefits
✅ Compact Design: Space-saving frame for easy control panel integration.
✅ Dual Duty Ratings: Supports both heavy duty and normal duty motor loads.
✅ Wide Frequency Range: Operates up to 599 Hz for versatile applications.
✅ Optional EMC Filter: Enhanced electromagnetic compatibility for sensitive environments.
✅ IP20 Protection: Durable build ideal for clean industrial settings.
📦 Buy Delta VFD13AMS43ANSAA Online – In Stock Now
At Drive Outlet Megastore we offer unbeatable Delta VFD13AMS43ANSAA prices.
Perfect as a drop-in replacement for the older VFD-E series, this MS300 model offers higher overload capabilities and a more compact form factor.
Fast UK delivery and full 2-year warranty included.
