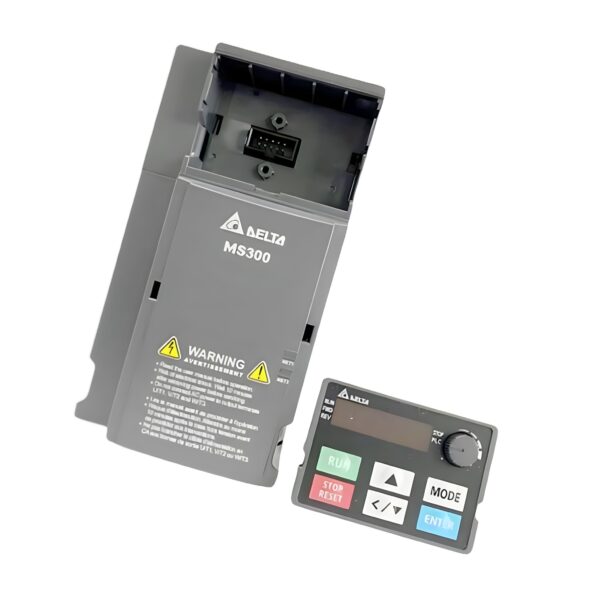

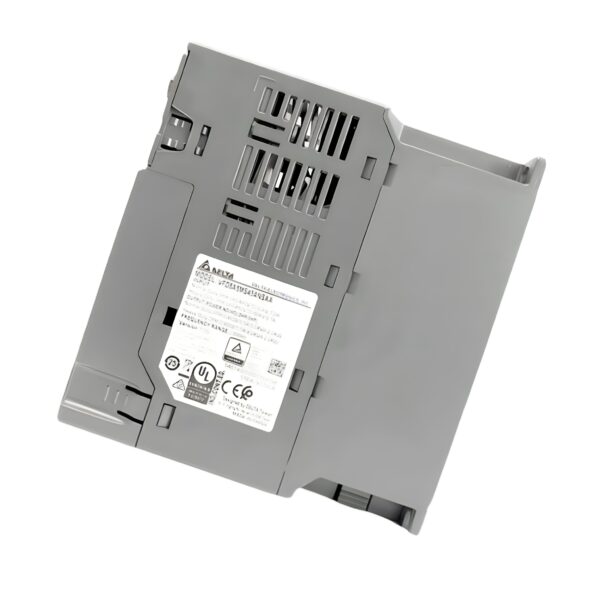

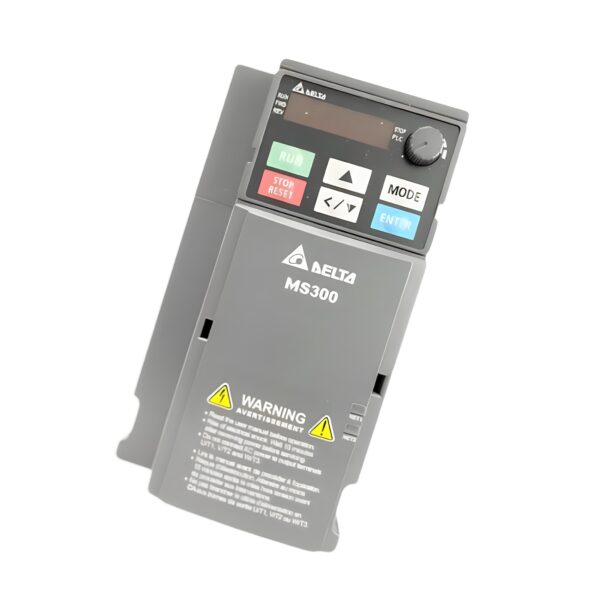

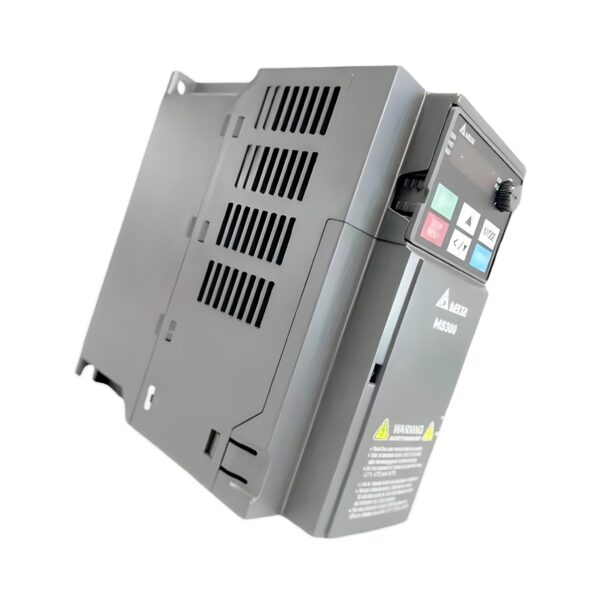

Delta VFD5A5MS43ANSAA Inverter Drive – 2.2kW, 3PH, IP20
The Delta VFD5A5MS43ANSAA is a compact and efficient AC drive from the MS300 Series, built for controlling 3HP (2.2kW) motors at 460V. Designed with advanced motor control in mind, it supports sensorless vector operation, both normal duty and heavy duty ratings, and an optional EMC filter. With a high frequency range and compact C1 frame, this inverter is a powerful solution for industrial automation in tight control panels.
Technical Specifications
- Model: VFD5A5MS43ANSAA Delta
- Series: MS300
- Function: Sensorless Vector AC Drive with Dual Duty Ratings
- Motor Power: 3 HP / 2.2 kW
- Input Voltage: 460 V AC
- Input Phase: 3-Phase
- Frequency Range: 0 … 599 Hz
Electrical Characteristics
- Normal Duty Output Current: 6.5 A
- Heavy Duty Output Current: 5.5 A
- Overload (ND): 120% for 60 s / 150% for 3 s
- Overload (HD): 150% for 60 s / 200% for 3 s
- Motor Control Type: Sensorless Vector
- EMC Filter: Optional
Mechanical & Installation
- Frame Size: C1
- Enclosure Rating: IP20

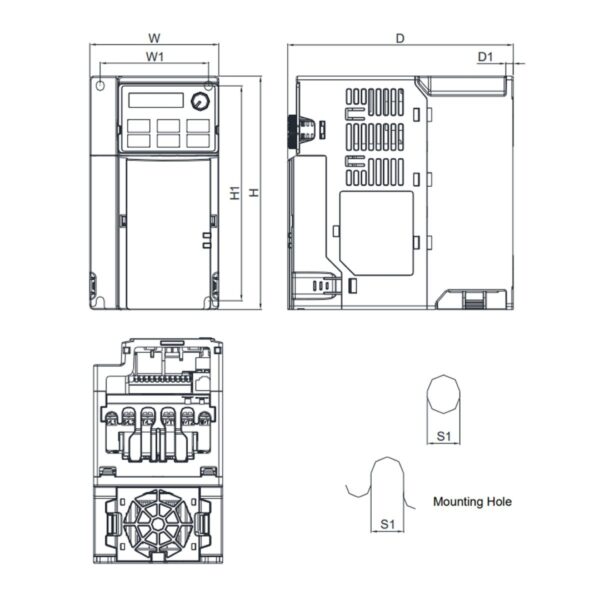

- Dimensions (W × H × D): 3.43 × 6.18 × 5.98 in (87 × 157 × 152 mm)
- Weight: 2.8 lbs (1.27 kg)
Key Features & Benefits
✅ Advanced Motor Control: Sensorless vector operation for smoother performance.
✅ Dual Duty Rated: Supports both heavy and normal duty loads.
✅ Wide Frequency Output: Up to 599 Hz for high-speed applications.
✅ Optional EMC Filter: Enhanced electromagnetic compatibility when needed.
✅ Compact IP20 Frame: Space-saving C1 size ideal for panel integration.
📦 Buy Delta VFD5A5MS43ANSAA Online – In Stock with Fast Shipping
At Drive Outlet Megastore we offer unbeatable Delta VFD5A5MS43ANSAA prices.
This compact MS300 drive is a direct upgrade from the VFD-E Series, offering improved overload protection and tighter control in a smaller package.
Order now with rapid UK delivery and full 2-year warranty.
