Pepperl+Fuchs ENA58IL-S10CA5-1213B17-ABP Absolute Encoder

£632.44 inc VAT

In Stock · Delivered in 3–5 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsPepperl+Fuchs
Model ENA58IL-S10CA5-1213B17-ABP
Product Type Absolute Rotary Encoder
Part Number ENA58IL-S10CA5-1213B17-ABP
Supply Voltage 4.5 V DC to 30 V DC (SSI, SSI + RS422) 10 V DC to 30 V DC (SSI + Push/Pull)
Resolution Single Turn: Up to 16 Bit Multiturn: Up to 16 Bit Overall Resolution: Up to 32 Bit
Detection Type Magnetic sampling
Output Type RS422, Push/Pull
Communication Interfaces SSI SSI + incremental track (RS422 standard conformity)
Connection Options M12 connector, 8-pin M23 connector, 12-pin Cable: Ø7 mm, 6 x 2 x 0.14 mm², 1 m standard length (see order code for variations)
Linearity Error ≤ ± 0.1°
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It InstantlySend us the competing price or quote for a personalised offer.

🛡️ 24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

SKU: ENA58IL-S10CA5-1213B17-ABP Category: Tags: , Brand:
Guaranteed Safe Checkout
Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

Pepperl+Fuchs ENA58IL-S10CA5-1213B17-ABP Absolute Encoder

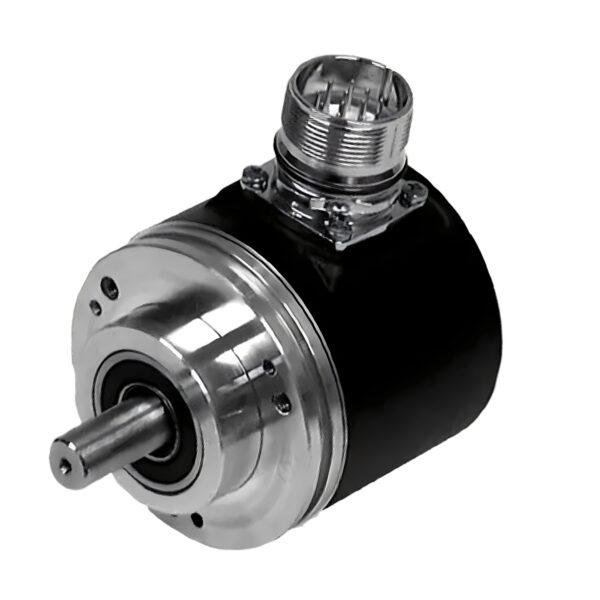

The Pepperl Fuchs ENA58IL-S10CA5-1213B17-ABP is a rugged absolute rotary encoder utilizing magnetic sampling for high-precision positioning, designed for demanding industrial applications. With multiturn capabilities, SSI communication, and robust construction, it offers reliable feedback even under dynamic and harsh operating conditions.

Technical Specifications

Model ENA58IL-S10CA5-1213B17-ABP
Part Number ENA58IL-S10CA5-1213B17-ABP
Product Type Absolute Rotary Encoder
Detection Type Magnetic sampling
Linearity Error ≤ ± 0.1°
UL File Number E223176 (“For use in NFPA 79 Applications only,” if UL marking is present)

Electrical Interface

No-Load Supply Current Typical 50 mA
Power Consumption Approx. 1.5 W
Time Delay Before Availability < 450 ms
Output Code Gray code, binary code
Code Course (Counting Direction) Adjustable
Transfer Rate 0.1 to 2 Mbit/s
Cycle Time < 100 µs
Supply Voltage 4.5 V DC to 30 V DC (SSI, SSI + RS422) 10 V DC to 30 V DC (SSI + Push/Pull)
Communication Interfaces SSI SSI + incremental track (RS422 standard conformity)
Resolution Single Turn: Up to 16 Bit Multiturn: Up to 16 Bit Overall Resolution: Up to 32 Bit

Additional specifications

SSI

Inputs

Input 1 Type: Counting direction selection (cw/ccw) Signal Voltage High: 4.75 V to UB or unconnected (cw descending) Signal Voltage Low: 0 V to 2 V (cw ascending) Input Current: < 6 mA Switch-On Delay: < 250 ms
Input 2 Type: Zero-set (PRESET 1) with falling edge Signal Voltage High: 4.75 V to UB Signal Voltage Low: 0 V to 2 V Input Current: < 6 mA Minimum Signal Duration: 1.1 s

Outputs

Pulses 1024, 2048, 4096 pulses
Output Type RS422, Push/Pull
Signal Output A+, B+, /A, /B

Mechanical Data

Housing Material Nickel-plated steel, painted
Flange Material Aluminum
Shaft Material Stainless steel
Mass Approx. 300 g (with cable)
Maximum Rotational Speed 12,000 min⁻¹
Moment of Inertia 50 g·cm²
Starting Torque < 5 N·cm
Shaft Load Axial: 40 N Radial: 110 N
Connection Options M12 connector, 8-pin M23 connector, 12-pin Cable: Ø7 mm, 6 x 2 x 0.14 mm², 1 m standard length (see order code for variations)

Safety-Related Data

Functional Safety Parameters MTTFd: 700 years at 40 °C Mission Time (TM): 20 years L10: 5.5 × 10⁹ revolutions at 40/110 N axial/radial shaft load Diagnostic Coverage (DC): 0%

Ambient Conditions

Operating Temperature 0 °C to +60 °C (32 °F to 140 °F)
Storage Temperature -40 °C to +85 °C (-40 °F to 185 °F)
Relative Humidity 90% non-condensing

Certificates and Compliance

European Conformity (CE)
United Kingdom Conformity (UKCA)
North American Certification (cCSAus)

Related Products & Helpful Links

Frequently Asked Questions

How can I check whether ENA58IL-S10CA5-1213B17-ABP is the correct replacement?

Check the exact manufacturer part number, electrical ratings, interface type, mounting and equipment compatibility against your existing equipment and the manufacturer’s datasheet.

How quickly can ENA58IL-S10CA5-1213B17-ABP be delivered?

This product is listed as in stock, with estimated UK delivery in 3–5 working days. Delivery depends on order confirmation, courier services and destination.

Where can I check specifications and compatibility?

Review the specification information above and the product’s Downloads or Data Sheets tab, where documents are supplied. Our team can help check part numbers and installation compatibility.

What warranty does Drive Outlet Megastore offer?

Drive Outlet offers its own 2-year return-to-base warranty unless otherwise stated. Manufacturer warranties may not apply; please review the Terms and Conditions before ordering.

Weight 0.3 kg
