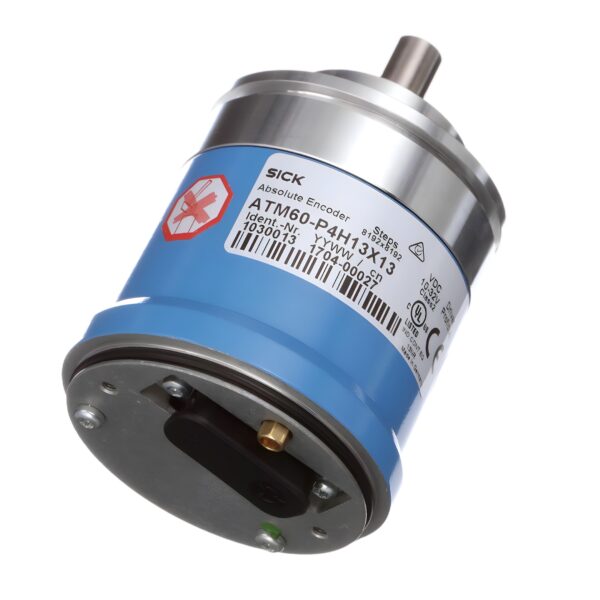

SICK ATM60-P4H13X13 Absolute Multiturn Encoder (1030013)

Name: SICK ATM60-P4H13X13 Absolute Multiturn Encoder (1030013)
SKU: ATM60-P4H13X13
Price: 862.44 GBP
Availability: InStock

£862.44 inc VAT

In Stock · Delivered in 3–5 Working Days

Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.

Technical SpecificationsSICK

Model	ATM60-P4H13X13
Manufacturer Part Number	1030013
Series	ATM60
Resolution	13-bit singleturn (8,192 steps) 13-bit multiturn (8,192 revolutions) Combined resolution: 13 bit × 13 bit
Encoder Type	Absolute Multiturn
Shaft Type	Solid shaft, face mount flange
Enclosure Rating	IP67 with shaft seal IP66 or IP43 without seal (config-dependent)
Address Range	0–127 via DIP switch or software
SCIP Number	f7ea3457-d696-4a67-8bf5-675d8b6447d4
Net Weight	0.59 kg

✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It InstantlySend us the competing price or quote for a personalised offer.

🛡️ 24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

SKU: ATM60-P4H13X13 Category: Encoders Tags: 1030013, ATM60-P4H13X13 Brand: SICK

Guaranteed Safe Checkout

Extra Features

100% Brand New & Genuine OEM Product
Includes Full 2-Year Warranty for Peace of Mind
Fast UK & Worldwide Shipping – Fully Tracked
Expert Technical Support from Our In-House Engineers
Found a Better Price? We’ll Match or Beat It Instantly

SICK ATM60-P4H13X13 Absolute Multiturn Encoder (1030013)

ATM60P4H13X13 – The SICK ATM60-P4H13X13 is a robust, high-precision absolute multiturn encoder featuring a 13-bit singleturn and 13-bit multiturn resolution (8,192 × 8,192 steps), offering precise angle tracking and position feedback for demanding automation environments.

Technical Specifications

Model	ATM60-P4H13X13
Manufacturer Part Number	1030013
Series	ATM60
Encoder Type	Absolute Multiturn
Interface	PROFIBUS DP (RS-485), Encoder Profile Class 2 (07hex)
Measuring Step	0.043°
Repeatability	±0.1°
Error Limits	±0.25°
Power Supply	10–32 V DC
Baud Rate	9.6 kBaud to 12 MBaud (auto detect)
Address Range	0–127 via DIP switch or software
Initialization Time	1,250 ms
Shaft Type	Solid shaft, face mount flange
Shaft Diameter / Length	10 mm / 19 mm
Max Speed	≤6,000 rpm
Angular Acceleration	≤500,000 rad/s²
Moment of Inertia (Rotor)	35 gcm²
Bearing Lifetime	3.6 × 10⁹ revolutions
Net Weight	0.59 kg
Country of Origin	Germany
Lifecycle Status	Archived Product
Resolution	13-bit singleturn (8,192 steps) 13-bit multiturn (8,192 revolutions) Combined resolution: 13 bit × 13 bit
Start-Up Torque (20 °C)	2.5 Ncm (with shaft seal) 0.5 Ncm (without shaft seal)
Operating Torque (20 °C)	1.8 Ncm (with shaft seal) 0.3 Ncm (without shaft seal)
Enclosure Rating	IP67 with shaft seal IP66 or IP43 without seal (config-dependent)
Permissible Shaft Load	Radial: 300 N Axial: 50 N
Material	Shaft: Stainless steel Flange: Aluminum Housing: Die-cast aluminum

Function & Application

Purpose	The ATM60-P4H13X13 delivers high-resolution absolute position feedback across both rotational angle and full revolutions , making it ideal for positioning systems in robotics, printing, packaging, and automated material handling. Its robust mechanical design , high shock resistance , and IP-rated sealing ensure reliable operation in harsh industrial environments.

Robotics and motion control
Conveyor and hoisting systems
Print and label machinery
Precision rotary indexing tables
Industrial automation systems requiring multiturn feedback

Compliance & Classification

RoHS Compliance	Yes
WEEE Take-Back Obligation	Yes
European Conformity (CE)	Yes
cULus Certification	Yes
SCIP Number	f7ea3457-d696-4a67-8bf5-675d8b6447d4
Commodity Code	85437090
Product Class	Archived

Frequently Asked Questions

How can I check whether ATM60-P4H13X13 is the correct replacement?

Check the exact manufacturer part number, electrical ratings, interface type, mounting and equipment compatibility against your existing equipment and the manufacturer’s datasheet.

How quickly can ATM60-P4H13X13 be delivered?

This product is listed as in stock, with estimated UK delivery in 3–5 working days. Delivery depends on order confirmation, courier services and destination.

Where can I check specifications and compatibility?

Review the specification information above and the product’s Downloads or Data Sheets tab, where documents are supplied. Our team can help check part numbers and installation compatibility.

What warranty does Drive Outlet Megastore offer?

Drive Outlet offers its own 2-year return-to-base warranty unless otherwise stated. Manufacturer warranties may not apply; please review the Terms and Conditions before ordering.

Weight	0.59 kg
