SICK WF80-60B410 Fork Sensor (6028441)

WF8060B410 – The SICK WF80-60B410 is a high-performance optical fork sensor with an 80 mm fork width and 59 mm depth, capable of detecting objects as small as 0.2 mm. Equipped with an infrared LED light source, this rugged sensor offers fast response times, selectable PNP/NPN outputs, and reliable light/dark switching, making it ideal for precision detection tasks such as label positioning and edge detection.

Technical Specifications

• Model: WF80-60B410
• Part Number: 6028441
• Series: WF Fork Sensors
• Detection Principle: Optical
• Light Source: Infrared LED
• Minimum Detectable Object (MDO): 0.2 mm
• Adjustments: Plus/minus button (sensitivity, light/dark switching, key lock)
• Teach-In Mode: Not available
• Output Function: Light/dark switching, selectable
• Switching Output Type: PNP / NPN
• Output Current: Max. 100 mA
• Switching Frequency: 10 kHz
• Response Time: ≤ 100 µs
• Jitter: 40 µs
• Response Time Stability: ± 20 µs
• Initialization Time: 100 ms
• Connection Type: M8 male connector, 4-pin
• Operating Voltage: 10–30 V DC
• Ripple: <10%
• Current Consumption: 40 mA
• Circuit Protection: Reverse polarity, UV protected, short-circuit protected output
• Switching Voltage (PNP): HIGH = UV ≤ 2 V / LOW ≈ 0 V
• Switching Voltage (NPN): HIGH = approx. UV / LOW ≤ 2 V
• Enclosure Rating: IP65
• Housing Material: Aluminum
• Protection Class: III

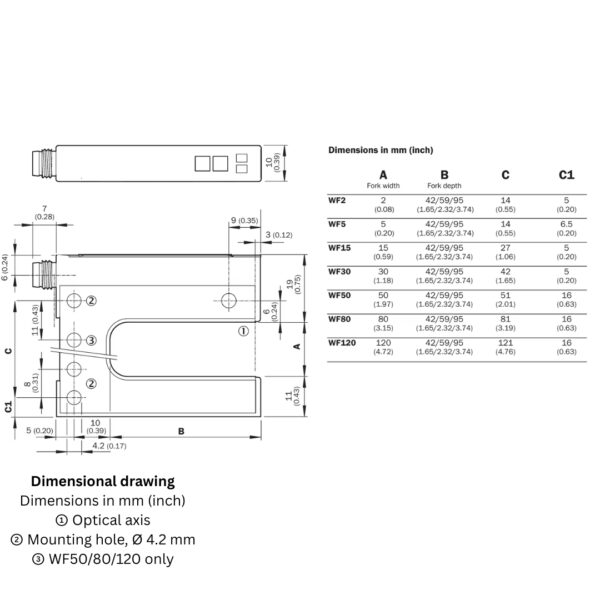

Weight & Dimensions

• Weight: Approx. 36 g to 160 g
• Fork Width: 80 mm
• Fork Depth: 59 mm
• Country of Origin: Germany
• Lifecycle Status: Active product

Function & Application

Purpose:
The WF80-60B410 SICK fork sensor provides high-speed, accurate optical detection of small parts, edges, or labels. It is commonly used in label detection, position verification, and web edge control, particularly in tight mechanical spaces that benefit from a fixed fork geometry.

Typical Applications:

• Label detection in packaging lines
• Edge detection on transparent film or paper
• Bottle label verification
• High-speed part counting
• Printing and textile machine sensing

Compliance & Classification

• European Conformity (CE): Yes
• WEEE Take-Back Obligation: Yes
• RoHS Compliance: Yes
• Protection Class: III
• Enclosure Rating: IP65
• UL/cUL Certification: Confirmed

SCIP Number: Not applicable
Commodity Code: 90318080
Product Class: A – Returnable stock item

Key Features & Benefits:

✅ 0.2 mm Sensitivity: Detects even the smallest labels and edges.

✅ 80 mm Fork Width: Fits a wide range of applications with fixed beam alignment.

✅ Infrared Light Source: Ensures consistent detection performance across materials.

✅ 10 kHz Switching Frequency: Supports high-speed production and packaging lines.

✅ Durable & Compact: Lightweight aluminum housing with IP65 protection.
