WTB16I-24161120A00

SICK WTB16I-24161120A00 Photoelectric Sensor (1218669)

£224.19 inc VAT

In Stock · Delivered in 5–7 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsSICK
Model WTB16I-24161120A00
Series W16
Part Number 1218669
Sensing Range 10 mm to 1,500 mm
Recommended Sensing Range 100 mm to 600 mm
Supply Voltage 10–30 V DC
Output Current (Max) ≤ 100 mA
Sensor Type Photoelectric proximity sensor
Connection M12, 4-pin male connector
Switching Frequency 1,000 Hz
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It InstantlySend us the competing price or quote for a personalised offer.

24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

SICK WTB16I-24161120A00 Photoelectric Sensor (1218669)

WTB16I24161120A00 – The SICK WTB16I-24161120A00 is a compact, high-performance photoelectric proximity sensor with background suppression , offering a sensing range of 10 mm to 1,500 mm . Featuring infrared LED emission , dual digital outputs , and IO-Link communication , this sensor is engineered for robust detection of objects—even in the presence of challenging backgrounds or varying reflectivity.

Technical Specifications

Model WTB16I-24161120A00
Part Number 1218669
Series W16
Sensor Type Photoelectric proximity sensor
Functional Principle Background suppression
Sensing Range 10 mm to 1,500 mm
Recommended Sensing Range 100 mm to 600 mm
Minimum Distance to Background 70 mm (black 6% / white 90% at 600 mm)
Adjustment Method Teach-Turn, BluePilot LED feedback
Light Source Infrared LED (850 nm)
Light Spot Shape Point
Spot Size (at 800 mm) Ø 12 mm
LED Life Expectancy 100,000 h at 25°C
Response Time ≤ 500 µs
Repeatability 150 µs
Switching Frequency 1,000 Hz
Output Current (Max) ≤ 100 mA
Supply Voltage 10–30 V DC
Current Consumption ≤ 30 mA (no load at 24 V DC)
Ripple ≤ 5 Vpp
Protection Class III

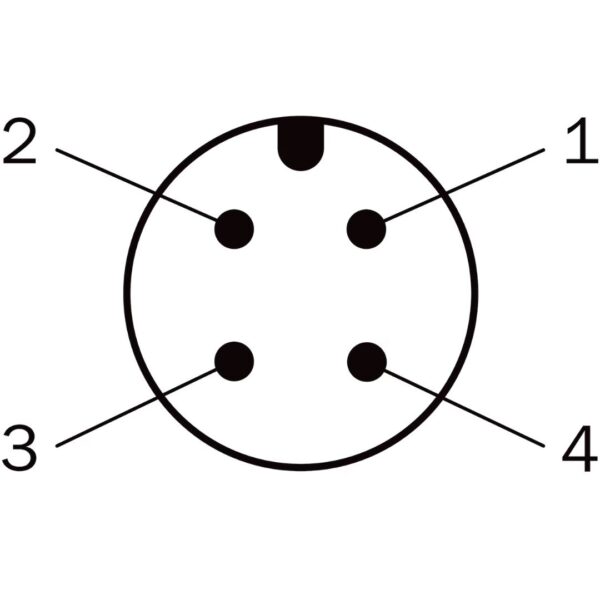

Connection M12, 4-pin male connector
Enclosure Rating IP66/IP67 (ECOLAB certified)
Housing Material VISTAL® plastic
Front Screen Material PMMA
Outputs 2 x Push-Pull (PNP/NPN), complementary Light/dark switching (configurable)
Signal Voltage PNP: HIGH ≈ UB – 2.5 V / LOW ≈ 0 V NPN: HIGH ≈ UB / LOW < 2.5 V
Circuit Protection Reverse polarity protection Overcurrent and short-circuit protection

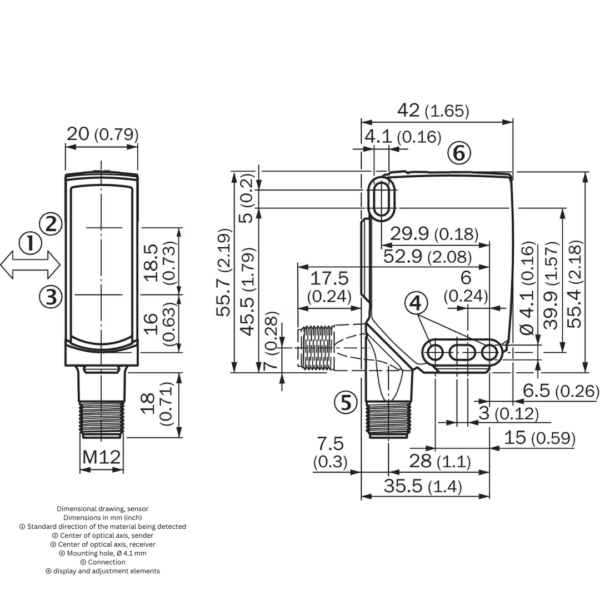

Weight and Dimensions

Weight Approx. 50 g
Dimensions (W × H × D) 20 × 55.7 × 42 mm
Country of Origin Germany
Lifecycle Status Active product

Function & Application

Purpose The WTB16I-24161120A00 is designed for reliable object detection in applications where background suppression is essential. It excels in environments with shiny surfaces , varying background colors , or tight space constraints , thanks to its adjustable detection threshold , IO-Link capabilities , and compact housing .
Presence detection in assembly or packaging lines
Transparent and reflective object detection
Bottle, box, or blister pack recognition
Sensing near moving belts or reflective machine frames
Configurable output logic for smart automation systems

Compliance & Classification

European Conformity (CE) Yes
RoHS Compliance Yes
WEEE Take-Back Obligation Yes
ECOLAB Certified Yes
IO-Link Conformance Yes
cULus Listed Yes
SCIP Number Not applicable
Commodity Code 90318080
Product Class A – Returnable stock item

Related Products & Helpful Links

Frequently Asked Questions

How can I check whether WTB16I-24161120A00 is the correct replacement?

Check the operating voltage, sensing or protective range, output type, connections and required accessories against your existing installation or the relevant manufacturer datasheet.

How quickly can WTB16I-24161120A00 be delivered?

This product is listed as in stock, with estimated UK delivery in 3–5 working days. Delivery depends on order confirmation, courier services and destination.

Where can I check specifications and compatibility?

Review the specification information above and the product’s Downloads or Data Sheets tab, where documents are supplied. Our team can help check part numbers and installation compatibility.

What warranty does Drive Outlet Megastore offer?

Drive Outlet offers its own 2-year return-to-base warranty unless otherwise stated. Manufacturer warranties may not apply; please review the Terms and Conditions before ordering.

Weight 0.05 kg
