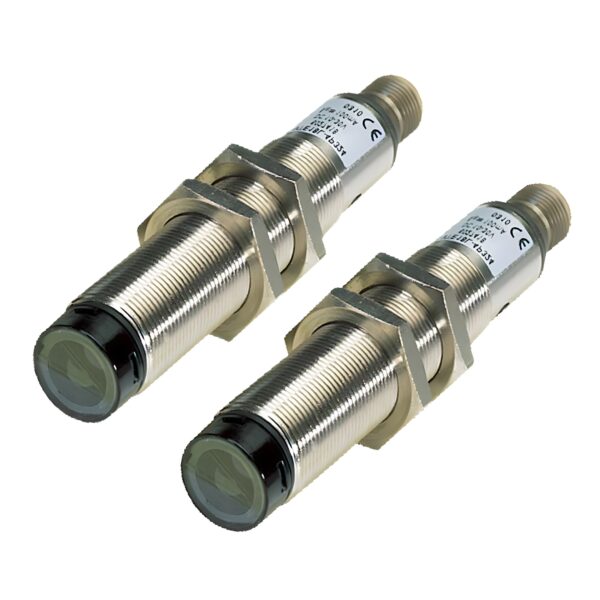

SICK VSE18L-4P324 Photoelectric Laser Sensor (6027931)

The SICK VSE18L-4P324 is a high-performance through-beam photoelectric sensor designed for precise long-distance detection of small objects. With a sensing range up to 60 meters and a focused laser beam with just 0.06° dispersion, this sensor excels in demanding industrial applications where speed, accuracy, and compact design are critical.

Housed in a rugged M18 nickel-plated brass cylindrical body and protected to IP67 standards, the VSE18L is ideal for use in harsh automation environments.

Technical Specifications

Model: VSE18L-4P324 SICK
SICK Part Number: 6027931
Product Type: Through-beam photoelectric sensor (emitter or receiver sold separately)
Application: Long-range object detection, high-speed automation, small object detection
Functional Principle: Through-beam (requires separate emitter and receiver)
Sensing Range:

• Standard: 0 m – 50 m
• Maximum: Up to 60 m
  Optical Focus Angle: 0.06°
  Type of Light: Visible red laser
  Light Source: Laser, Class 1
  Wavelength: 650 nm
  Laser Power Output: 0.4 mW
  Light Spot Size: Ø 40 mm at 50 m
  Adjustment: 270° sensitivity potentiometer
  Switching Mode: Light/dark switching (selectable via control cable)
  Special Applications: Detection of small or fast-moving objects
  Optical Axis: Axial

Electrical Interface

Supply Voltage: 10 V DC to 30 V DC
Ripple: ±10%
Current Consumption: 25 mA
Switching Output: PNP
Switching Mode Selector: Via L/D control wire
Output Current Max.: ≤ 100 mA
Response Time: ≤ 0.5 ms
Switching Frequency: 1,000 Hz
Connection Type: M12 male connector, 4-pin
Circuit Protection:

• A: Short-circuit protection
• B: Reverse polarity protection
• C: Power-up pulse suppression
• D: Transient protection
  Protection Class: III

Mechanical Data

Enclosure Rating: IP67
Housing Style: Cylindrical, M18 x 1
Housing Material: Nickel-plated brass with PC components
Optics Material: Plastic lens with protective glass

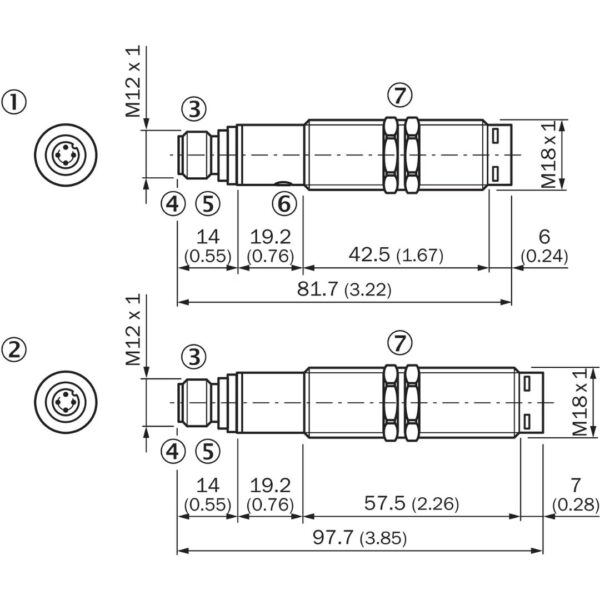

Dimensions (W x H x L): 18 mm × 18 mm × 97.7 mm
Weight: Approx. 120 g
Mounting: Threaded M18 installation
Test Input (Laser Off): TE to 0 V

Safety-Related Data

Laser Class: Class 1 (IEC 60825-1 compliant)
UL File No.: NRKH.E181493
CDRH Conformance: Yes (0312012-00)

Ambient Conditions

Operating Temperature: –15 °C to +55 °C
Storage Temperature: –25 °C to +70 °C

Certificates and Compliance

• European Conformity (CE)
• UL/cUL Listed
• IP67 Protection
• CDRH Compliant
• RoHS Compliant

Applications

Ideal For:

• Long-distance positioning and detection in manufacturing lines
• Logistics and material handling with beam break detection
• Packaging and sorting systems requiring high precision
• Small object detection in high-speed environments

Key Features & Benefits

✅ Ultra-Long Range: Detects targets up to 60 meters.

✅ Laser Precision: Sharp, focused beam for pinpoint detection.

✅ Fast Response: ≤ 0.5 ms for high-speed operations.

✅ Durable Build: IP67-rated metal housing for industrial use.

✅ Flexible Setup: Adjustable sensitivity and switching logic.

📦 Order Today for Fast UK & Europe Delivery!

At Drive Outlet Megastore, we offer unbeatable SICK VSE18L-4P324 prices with rapid delivery and expert support.

Need help selecting matching emitters/receivers or integrating laser sensors? Talk to our technical team today.

Precision at a distance — with SICK and Drive Outlet Megastore.
