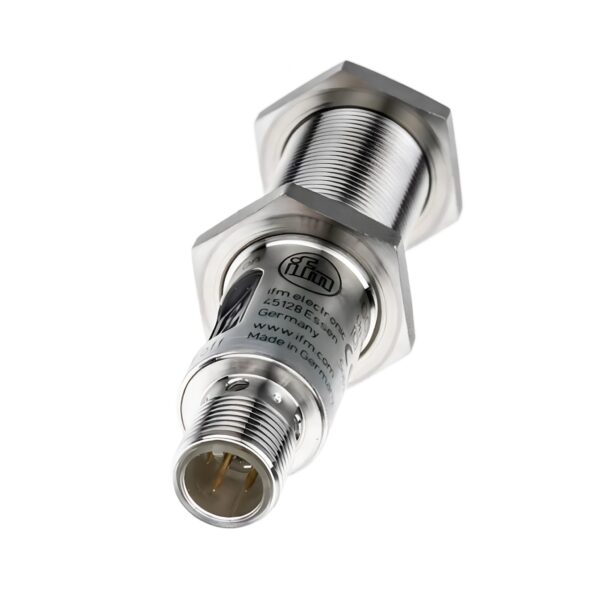

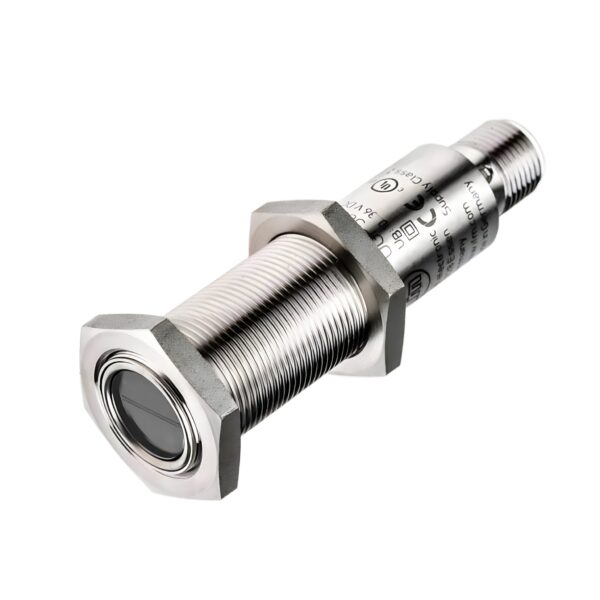

IFM OGP500 Retro-Reflective Sensor – OGP-FPKG/US100

£137.95 inc VAT

In Stock · Delivered in 5–7 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsIFM Electronic
Model OGP500 Sensor
Sensing Range 0.03…5 m (with Ø 80 mm prismatic reflector E20005)
Adjustable Range Yes
Operating Voltage 10…36 V DC
Max Output Current 150 mA (200 mA at ≤60 °C)
Sensor Type Retro-Reflective Photoelectric
Output Type PNP
Housing Type Threaded cylindrical (M18 x 1)
Dimensions L = 72 mm
Switching Frequency 2000 Hz
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It!Send us the competing price or quote for a personalised offer.

24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

IFM OGP500 Retro-Reflective Sensor – OGP-FPKG/US100

The IFM OGP500 is a high-speed retro-reflective photoelectric sensor with polarisation filter, PNP output, and compact M18 threaded housing. It delivers reliable object detection up to 5 metres, with selectable light-on/dark-on logic and fast 2 kHz switching, ideal for tight-space automation, conveyors, and packaging machinery.

Technical Specifications

Model OGP500 Sensor
Manufacturer IFM
Sensor Type Retro-Reflective Photoelectric
Output Type PNP
Light Source Red Light (624 nm)
Housing Style M18 Threaded

Detection Performance

Sensing Range 0.03…5 m (with Ø 80 mm prismatic reflector E20005)
Light Spot Diameter 200 mm (at max range)
Adjustable Range Yes
Factory Default Dark-on mode
Polarisation Filter Yes (prevents false detection from shiny surfaces)

Input / Output Configuration

Total Outputs 1
Electrical Design PNP
Output Function Light-on / Dark-on (programmable)
Max Voltage Drop (DC) 2.5 V
Max Output Current 150 mA (200 mA at ≤60 °C)
Switching Frequency 2000 Hz
Short-Circuit Protection Yes (Pulsed)
Overload Protection Yes

Electrical Characteristics

Operating Voltage 10…36 V DC
Current Consumption 20 mA
Protection Class II
Reverse Polarity Protection Yes

Environmental Conditions

Operating Temperature –25…80 °C
Ingress Protection IP67
EMC Compliance EN 60947-5-2
MTTF 431 years

Mechanical Construction

Housing Type Threaded cylindrical (M18 x 1)
Dimensions L = 72 mm
Weight 52.1 g
Materials Housing: Stainless Steel (316L/1.4404) Lens: PMMA Components: PA, LCP, EPDM, TPU

Display & Feedback

Status Indicator 1 x LED (Yellow – switching status)

Included Accessories

Lock Nuts 2 supplied

Electrical Connection

Connector 1 × M12, A-coded

Frequently Asked Questions

How can I check whether OGP500 is the correct replacement?

Check the operating voltage, sensing or protective range, output type, connections and required accessories against your existing installation or the relevant manufacturer datasheet.

How quickly can OGP500 be delivered?

This product is listed as in stock, with estimated UK delivery in 3–5 working days. Delivery depends on order confirmation, courier services and destination.

Where can I check specifications and compatibility?

Review the specification information above and the product’s Downloads or Data Sheets tab, where documents are supplied. Our team can help check part numbers and installation compatibility.

What warranty does Drive Outlet Megastore offer?

Drive Outlet offers its own 2-year return-to-base warranty unless otherwise stated. Manufacturer warranties may not apply; please review the Terms and Conditions before ordering.

Weight 0.0521 kg
Dimensions 15 × 15 × 15 cm
