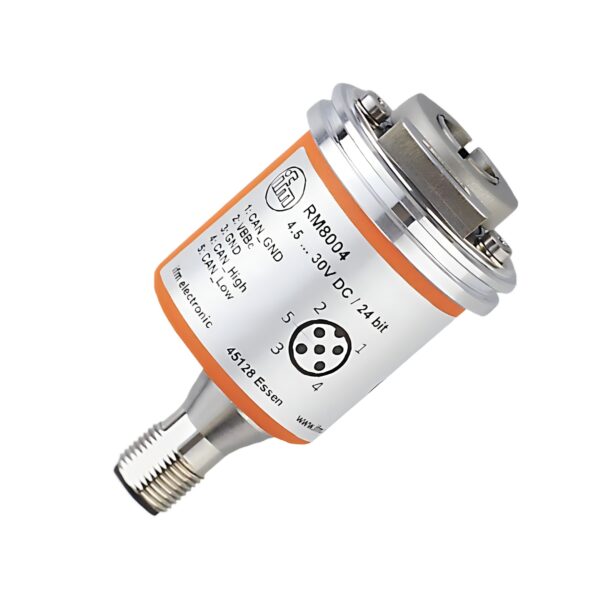

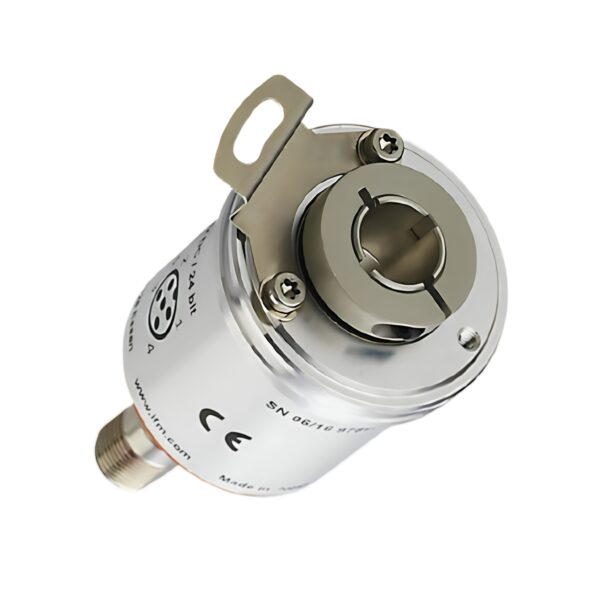

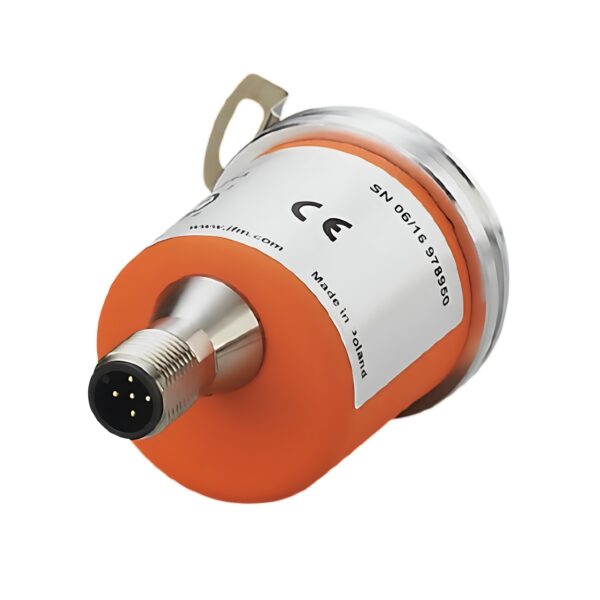

IFM RM8004 Hollow Shaft Absolute Encoder – RMS0024-C24/USU

£402.44 inc VAT

In Stock · Delivered in 3–5 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsIFM Electronic
Model RM8004
Operating Voltage 9–30 V DC (supply class 2 per cULus)
Resolution 4096 steps × 4096 revolutions (24-bit total)
Encoder Type Absolute – Multiturn
Protocol CAN (CANopen)
Dimensions Ø 36.5 mm × 74 mm length
Weight 235.5 g
Protection Class III
Reverse Polarity Protection Yes
Short-Circuit Protection Yes
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It!Send us the competing price or quote for a personalised offer.

🛡️ 24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

SKU: RM8004 Category: Tags: , Brand:
Guaranteed Safe Checkout
Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

IFM RM8004 Hollow Shaft Absolute Encoder – RMS0024-C24/USU

The IFM RM8004 is a robust multiturn absolute encoder with a 12 mm hollow shaft and high-resolution 24-bit positioning for precise tracking of rotary motion in industrial automation systems. Equipped with a CANopen interface , the RM8004 offers full configurability for node ID, scaling, preset values, and direction of rotation.

Technical Specifications

Model RM8004
Manufacturer IFM
Encoder Type Absolute – Multiturn
Shaft Design Hollow shaft open to one side
Shaft Diameter 12 mm
Resolution 4096 steps × 4096 revolutions (24-bit total)
Output Code Binary

Application

Target Use Precise speed, angle, position, and length measurement
Installation Areas OEM equipment, conveyors, motor feedback, robotics
Fixing Flange Ø 36.5 mm

Electrical Characteristics

Operating Voltage 9–30 V DC (supply class 2 per cULus)
Protection Class III
Reverse Polarity Protection Yes
Short-Circuit Protection Yes
Electrical Connection 1 × M12 A-coded (axial)
Current Consumption < 100 mA @ 10 V DC ≤ 50 mA @ 24 V DC

Communication Interface

Protocol CAN (CANopen)
Default Factory Settings Baud Rate: 125 kBit/s Node ID: 32 Profiles: DSP-406 V3.1, DS 301 V4.02, DS 306 V2.0

Software & Programming

Parameter Options Node ID configuration Preset value Baud rate adjustment Direction of rotation Scaling and diagnostics

Measuring Performance

Resolution 4096 steps/rev × 4096 revolutions
Angular Accuracy ±0.25°
Max Mechanical Speed 6000 RPM

Environmental Conditions

Ambient Temperature –40 to +85 °C
Storage Temperature –40 to +85 °C
Humidity Up to 98% RH
Ingress Protection Housing: IP65 Shaft: IP64

Compliance & Certifications

EMC Standards EN 61000 series
Shock Resistance < 300 g (6 ms) – DIN EN 60068-2-27
Vibration Resistance 30 g (10–1000 Hz) – DIN EN 60068-2-6
MTTF 240 years

Mechanical Design

Weight 235.5 g
Dimensions Ø 36.5 mm × 74 mm length
Starting Torque 3 Nm (at 25 °C)
Materials Flange: Aluminium Housing Cap: Steel (powder-coated) Shaft: Hardened Steel
Max Shaft Load Axial: 40 N Radial: 110 N

LED Indicators

Green (solid) Pre-operational mode
Green (flashing) Operational mode
Red (flashing) Error condition
