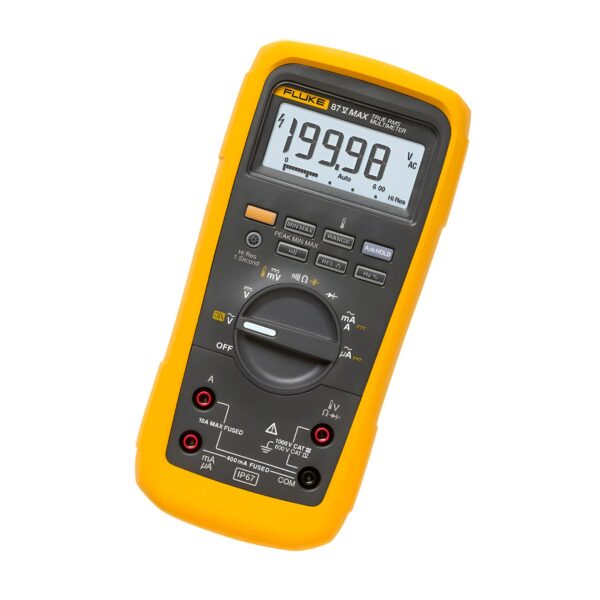

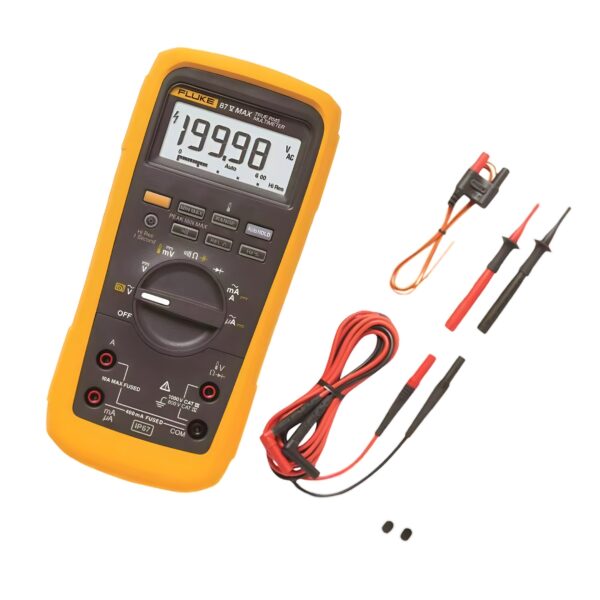

Fluke 87V MAX TRMS Digital Multimeter

The Fluke 87V MAX sets a new benchmark in high-performance, rugged multimeters. Engineered for extreme conditions, this True-RMS digital multimeter features a robust IP67-rated waterproof and dustproof housing, a 4-meter drop-tested design, and an extended operating range down to –40°C (for 20 minutes). It delivers unmatched accuracy, reliability, and durability for demanding industrial, HVAC, and field service environments.

Designed for professionals working with non-linear loads, motor drives, and VFDs, the 87V MAX includes a low-pass filter for accurate VFD measurements, peak min/max capture, a built-in thermometer, and a high-resolution 19,999-count display. Backed by a limited lifetime warranty, it’s Fluke’s most advanced and durable DMM yet.

Technical Specifications

Model: Fluke 87V MAX
Measurement Type: TRMS Digital Multimeter
Display: 6000 counts (standard), 19,999 counts (high-res mode)
Form Factor: Handheld with industrial holster
Backlight: Dual-level white LED + backlit keypad
Diagnostic Tools: Min/Max/Avg, Peak Min/Max (250 μs), Relative Mode, Auto Hold
Special Features: Built-in thermometer, VFD low-pass filter, Input Alert™, Auto Touch Hold

Electrical Specifications

• DC Voltage: 0.1 mV to 1000 V, ±(0.05% + 1)
• AC Voltage (TRMS): 0.1 mV to 1000 V, ±(0.7% + 4), 20 kHz bandwidth (3 dB @ 1 kHz)
• DC Current: 0.1 μA to 10 A (20 A for 30 sec), ±(0.2% + 2)
• AC Current (TRMS): 0.1 μA to 10 A (20 A for 30 sec), ±(1.0% + 2)
• Resistance: 0.1 Ω to 50 MΩ, ±(0.2% + 1)
• Capacitance: 0.01 nF to 9999 μF, ±(1% + 2)
• Frequency: 0.5 Hz to 199.99 kHz, ±(0.005% + 1)
• Duty Cycle: Max 99.9%, ±(0.2%/kHz + 0.1%)
• Conductance: Up to 60.00 nS, ±(1.0% + 10)
• Diode Test: 2.0 V range, ±(1% + 1), 0.001 V resolution

Temperature Measurement

• Measurement Range: –200.0°C to +1090°C (probe dependent)
• Included Probe (80BK): –40.0°C to 260°C, ±2.2°C or 2% (whichever is greater)

Environmental Specifications

• Operating Temperature: –15°C to +55°C (–40°C for 20 min max)
• Storage Temperature: –40°C to +60°C
• Humidity: 0%–90% (0°C–35°C), 0%–70% (35°C–55°C)
• Operating Altitude: Up to 2000 m

Safety & Compliance

• Overvoltage Category: CAT IV 600 V / CAT III 1000 V
• Standards: IEC 61010-1, IEC 61010-2-033
• IP Rating: IP67 (IEC 60529)
• Drop Test: 4 meters (13 feet)
• Certifications: CE, CSA

Mechanical & General Specifications

• Size: 6.0 × 10.1 × 21.5 cm (with holster)
• Weight: 698.5 g (with holster)
• Battery Type: 3 × AA (alkaline)
• Battery Life: Up to 800 hours (without backlight)
• Warranty: Limited lifetime

Key Features & Benefits

✅ IP67-Rated Protection: Fully waterproof and dustproof design.

✅ 4-Meter Drop Tested: Withstands harsh industrial environments.

✅ VFD Low-Pass Filter: Accurate readings on motor drives.

✅ 800-Hour Battery Life: Optimised for long field deployments.

✅ Peak Min/Max Capture: Detects transients down to 250 μs.

📦 Order the Fluke 87V MAX from Drive Outlet Megastore

At Drive Outlet Megastore, we offer unbeatable Fluke 87V MAX prices for engineers and electricians who need durable, high-performance testing equipment. Whether you’re servicing variable speed drives or working outdoors in extreme weather, the Fluke 87V MAX is your ultimate tool.

Check stock now or request a quote.

Extreme precision. Rugged engineering. Fluke performance. — Drive Outlet Megastore
