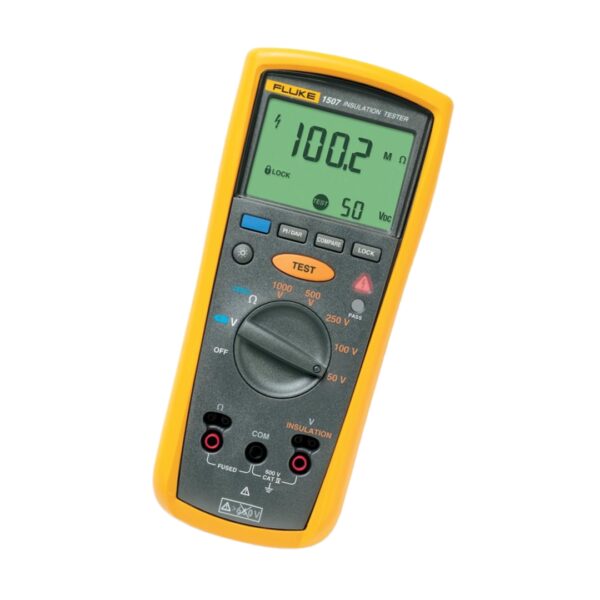

FLUKE 1507
Fluke 1507 Insulation Tester
  1. FLUKE 1507
  2. Fluke 1507 Insulation Tester

Fluke 1507 Insulation Tester

£804.94 inc VAT

In Stock · Delivered in 3–5 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsFluke
Model Fluke 1507
Resolution 0.1 V
Range 0 to 600.0 V
Battery Type Four AA batteries (IEC LR6 / NEDA 15A)
Resolutions 0.01 Ω / 0.1 Ω / 1.0 Ω / 0.01 kΩ
Insulation Resistance Range 0.01 MΩ to 10 GΩ
Test Voltages 50 V, 100 V, 250 V, 500 V, 1000 V
Voltage Accuracy +20%, –0%
Max Voltage on Any Terminal 600 V AC rms or DC
Ranges 20 Ω / 200 Ω / 2000 Ω / 20 kΩ
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It InstantlySend us the competing price or quote for a personalised offer.

🛡️ 24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

SKU: FLUKE 1507 Category: Tag: Brand:
Guaranteed Safe Checkout
Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

Fluke 1507 Insulation Tester

The Fluke 1507 is a rugged, battery-powered insulation resistance tester designed for fast, reliable, and safe testing of electrical insulation in industrial and commercial systems. With selectable test voltages up to 1000 V , a wide resistance range up to 10 GΩ , and compliance with CAT IV 600 V safety standards, it is ideal for commissioning, troubleshooting, and preventative maintenance in harsh environments.

Technical Specifications

Model Fluke 1507
Function Digital Insulation Resistance Tester
Insulation Resistance Range 0.01 MΩ to 10 GΩ
Test Voltages 50 V, 100 V, 250 V, 500 V, 1000 V
Voltage Accuracy +20%, –0%
Short Circuit Current 1 mA nominal
Auto Discharge < 0.5 s (for C ≤ 1 µF)
Live Circuit Protection Inhibits test above 30 V
Max Voltage on Any Terminal 600 V AC rms or DC

Earth Bond Resistance Measurement

Ranges 20 Ω / 200 Ω / 2000 Ω / 20 kΩ
Resolutions 0.01 Ω / 0.1 Ω / 1.0 Ω / 0.01 kΩ
Accuracy ±(1.5% + 3)
Open Circuit Voltage > 4 V, < 8 V
Short Circuit Current > 200 mA

AC/DC Voltage Measurement

Range 0 to 600.0 V
Resolution 0.1 V
Accuracy ±(2% + 3) from 50 Hz to 400 Hz
Input Impedance 3 MΩ nominal, < 100 pF
CMRR > 60 dB (1 kΩ unbalanced)
Overload Protection 600 V rms or DC

Performance & Accuracy

Over-Range Capability 110% of range
Temperature Coefficient 0.05 × accuracy per °C outside 18–28 °C
Insulation Accuracy 50 V & 100 V: ±(3% + 5) 250 V, 500 V, 1000 V: ±(1.5% + 5) up to 2000 MΩ Above 2000 MΩ: ±(10% + 3)

Environmental & Mechanical

Operating Temperature –20 °C to +55 °C
Storage Temperature –40 °C to +60 °C
IP Rating IP40
Size (H × W × L) 5.0 × 10.0 × 20.3 cm
Weight 550 g
Altitude (Operating) 2000 m (CAT IV), 3000 m (CAT III)
Altitude (Storage) 12,000 m
Relative Humidity 0–95% @ 10–30 °C 0–75% @ 30–40 °C 0–40% @ 40–55 °C

Compliance & Safety

Safety Ratings CAT IV 600 V, CAT III 1000 V
Standards IEC/EN 61010-1 2nd Ed., ANSI/ISA 82.02.01, CAN/CSA-C22.2 No. 61010-1-04
Certifications CSA, TÜV
EMC EN 61326-1:1997 (3 V/m immunity)
Vibration Random, 2 g, 5–500 Hz (MIL-PRF-28800F)
Shock 1 m drop test (IEC 61010-1)

Power Supply

Battery Type Four AA batteries (IEC LR6 / NEDA 15A)
Battery Life (Insulation Tests) ≥1000 tests at 1000 V, 1 MΩ, 5 s ON/25 s OFF
Battery Life (Resistance Tests) ≥2500 tests at 1 Ω, 5 s ON/25 s OFF

Included Accessories

Test Leads TL224
Test Probes TP74
Alligator Clips PN 1958654 (red), PN 1958646 (black)
Remote Probe Included
Holster Included
