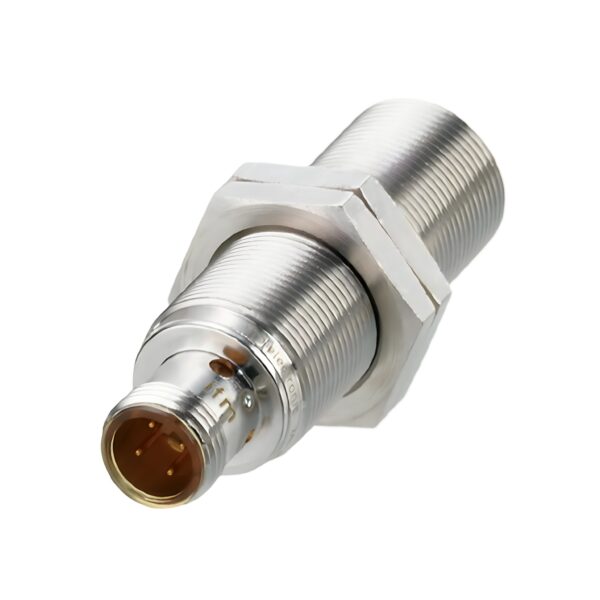

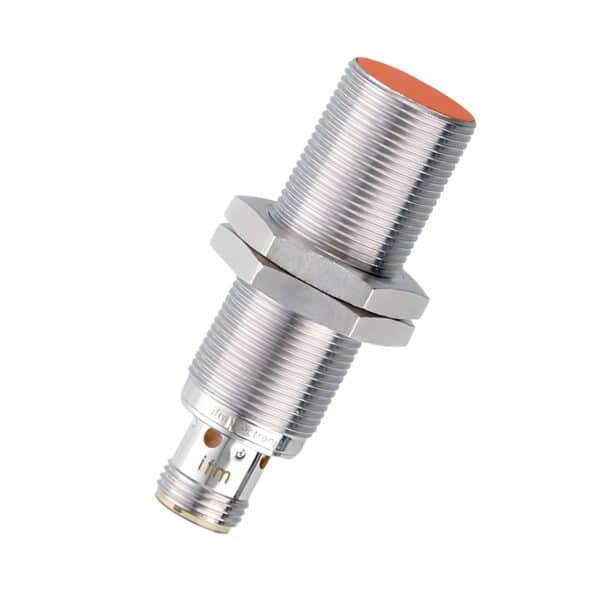

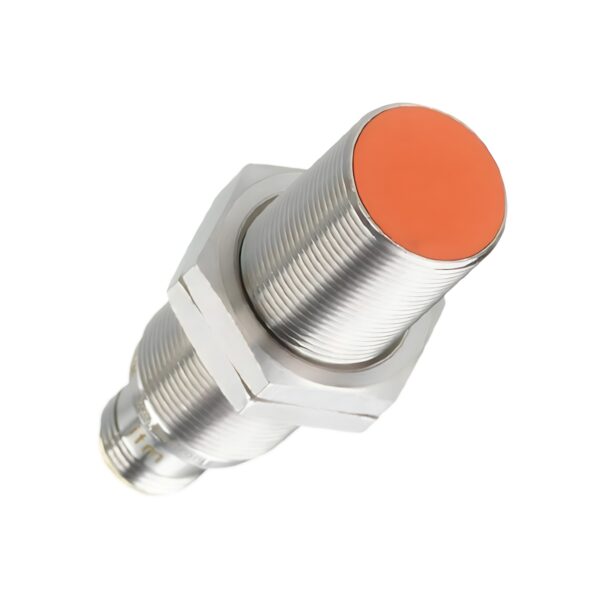

IFM IG6086 Inductive Analogue Sensor

The IFM IG6086 is a precision-engineered inductive analogue sensor designed for reliable object detection and accurate distance measurement in industrial environments. Featuring a threaded M18 housing with flush mounting capability, the IG6086 offers a measuring range of 0.5 to 5 mm, a fast response time under 10 ms, and parameterisable PNP/NPN outputs alongside a linear 4–20 mA analogue output. Its IO-Link communication, rugged brass housing with white bronze coating, and extensive EMC and shock resistance certifications make it ideal for demanding automation and sensing applications.

Technical Specifications

Model: IG6086 Sensor
Manufacturer: IFM
Sensor Type: Inductive analogue sensor
Housing: Threaded type, M18 x 1, L=60 mm, flush mountable
Thread Designation: M18 x 1

Electrical Characteristics

• Operating Voltage: 15…30 V DC
• Current Consumption: < 30 mA
• Protection Class: II
• Reverse Polarity Protection: Yes

Outputs

• Electrical Design: PNP/NPN (parameterisable)
• Output Function: Normally open / normally closed (parameterisable)
• Max Voltage Drop (Switching Output): 2.5 V DC
• Permanent Current Rating (Switching Output): 100 mA DC
• Switching Frequency: 300 Hz
• Analogue Current Output: 4…20 mA (linear; gradient: 3.556 mA/mm for frontal approach with mild steel target 18×18×1 mm)
• Max Load: 500 Ω (Ub ≤18 V; max load ≤400 Ω)
• Short-Circuit Protection: Yes
• Overload Protection: Yes

Detection Zone

• Measuring Range: 0.5…5 mm
• Switch Point (IO-Link): 0.94…4.68 mm

Accuracy & Deviations

• Correction Factor: Steel 1 / Stainless Steel 0.7 / Brass 0.5 / Aluminium 0.5 / Copper 0.4
• Hysteresis [% of Sr]: 3…15 (parameterisable)
• Linearity Error (Analogue Output): ± 1% (of final measuring range value)
• Repeatability (Analogue Output): ± 1% (of final measuring range value)
• Temperature Coefficient: ± 0.15 %/K
• Temperature Drift: ± 5 % (of final measuring range value)

Response Times

• Response Time: < 10 ms

Interfaces & Communication

• Communication Interface: IO-Link
• Transmission Type: COM2 (38.4 kBaud)
• IO-Link Revision: 1.1
• SDCI Standard: IEC 61131-9
• Profiles: Smart Sensor (Identification and diagnosis, Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor, Teach Channel)
• SIO Mode: Yes
• Required Master Port Type: A
• Min Process Cycle Time: 3.2 ms
• IO-Link Process Data (Cyclical):
  • Process Value: 16-bit
  • Device Status: 4-bit
  • Binary Switching Information: 2-bit
• IO-Link Functions (Acyclical): Switching cycles counter, switch-on cycle counter, operating hours counter, internal temperature, application-specific tag

Operating Conditions

• Ambient Temperature: -25 to 80 °C
• Protection: IP65, IP66, IP67, IP68, IP69K

Tests & Approvals

• EMC:
  • EN 61000-4-2 ESD: 4 kV CD / 8 kV AD
  • EN 61000-4-3 HF Radiated: 10 V/m
  • EN 61000-4-4 Burst: 2 kV
  • EN 61000-4-6 HF Conducted: 10 V
  • EN 55011 Class B
• Vibration Resistance:
  • EN 60068-2-6 Fc: 20 g (10…3000 Hz), 50 sweep cycles, 1 octave/min, 3 axes
• Shock Resistance:
  • EN 60068-2-27 Ea: 100 g (11 ms half-sine), 3 shocks each axis
• Continuous Shock Resistance:
  • EN 60068-2-27: 40 g (6 ms), 4000 shocks each axis
• Fast Temperature Change:
  • EN 60068-2-14 Na: TA = -25°C, TB = 80°C, t1 = 30 min, t2 = <10 s, 50 cycles

Mechanical Design

• Weight: 64 g
• Materials:
• • Housing: Brass (white bronze coated)
  • Sensing Face: PBT (orange)
  • LED Window: PEI
  • Lock Nuts: Brass (white bronze coated)
• Tightening Torque: 25 Nm

Display & Indicators

• Display: 4 × Yellow LED (lights when target in measuring range, flashes when target outside measuring range)

Key Features & Benefits of IG6086

✅ 0.5 to 5 mm Measuring Range for precise proximity detection in metal targets.

✅ IO-Link Communication for enhanced diagnostics and parameterisation flexibility.

✅ Parameterisable PNP/NPN Outputs with linear 4–20 mA analogue output.

✅ Robust Brass Housing with white bronze coating ensures durability in harsh environments.

✅ Fast Response Time under 10 ms for dynamic sensing applications.

✅ Extensive EMC, Vibration, and Shock Certifications for reliable industrial performance.
