TA2115

IFM TA2115 Temperature Sensor – TA-050CLER14-A-ZVG/US

£189.69 inc VAT

In Stock · Delivered in 3–5 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsIFM Electronic
Model TA2115
Measuring Range –50…150 °C
Operating Voltage 18–32 V DC (Class 2 to cULus)
Sensor Type RTD temperature sensor
Interface Type IO-Link
Dimensions Ø 18.7 mm × 113.9 mm
Analogue Output Resolution 0.04 K
Weight 94 g
Process Connection G 1/4 external thread
Protection Class III
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It!Send us the competing price or quote for a personalised offer.

🛡️ 24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

SKU: TA2115 Category: Tags: , , , Brand:
Guaranteed Safe Checkout
Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

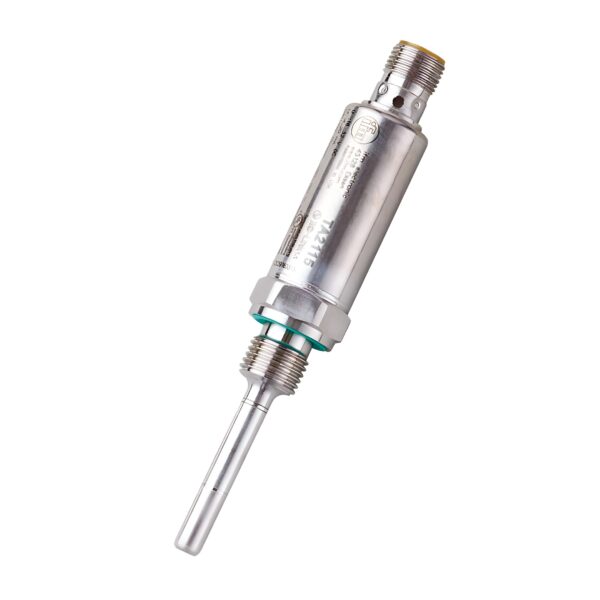

IFM TA2115 Temperature Sensor – TA-050CLER14-A-ZVG/US

The IFM TA2115 is a rugged, high-accuracy temperature sensor designed for industrial use in liquid and gas measurement applications. Featuring a robust Pt1000 Class A RTD element , the sensor provides a scalable 4–20 mA analogue output , and supports IO-Link communication for smart parameterization.

Technical Specifications

Model TA2115
Manufacturer IFM
Sensor Type RTD temperature sensor
Measuring Element Pt1000 (DIN EN 60751, Class A)
Measuring Range –50…150 °C
Process Connection G 1/4 external thread
Installation Length (EL) 50 mm
Probe Length (L) 37 mm
Compatible Media Liquids and gases
Max Pressure Rating 400 bar | 40 MPa
Special Features Flush mountable, gold-plated contacts

Electrical Characteristics

Operating Voltage 18–32 V DC (Class 2 to cULus)
Current Consumption < 50 mA
Protection Class III
Reverse Polarity Protection Yes
Power-On Delay 1 second
Electrical Connection 1 × M12 A-coded (Gold-plated contacts)

Output Configuration

Total Outputs 1
Short-Circuit Protection Yes
Overload Protection Yes
Output Signal Analogue: 4–20 mA IO-Link (configurable)
Max Load 250 Ω (18–19 V) 300 Ω (19–32 V)

Measurement & Setting Range

Factory Setting –50…150 °C
Analogue Output Resolution 0.04 K

Accuracy & Deviations

Analogue Output Precision ±0.3 K + (±0.1% of span)
Temperature Coefficient ±0.1% / 10 K deviation from reference (25 ± 5 °C)

Response Times

T05 Response Time 1 second
T09 Response Time 3 seconds

Software & Interfaces

Interface Type IO-Link
IO-Link Version 1.1
Transmission Rate COM2 (38.4 kBaud)

Environmental Conditions

Ambient Temperature –25 to +80 °C
Storage Temperature –40 to +100 °C
Protection Rating IP67 / IP68 / IP69K
MTTF 572 years

Compliance & Certifications

EMC Standards DIN EN 61000-6-2
Shock Resistance 50 g (11 ms) – DIN IEC 68-2-27
Vibration Resistance 20 g (10–2000 Hz) – DIN IEC 68-2-6
UL Certification UL Approval No. K002

Mechanical Design

Housing Shape Cylindrical
Dimensions Ø 18.7 mm × 113.9 mm
Weight 94 g
Housing Materials Stainless Steel (316L / 1.4404), PEI, FKM
Wetted Parts Stainless Steel (316L / 1.4404), FKM (O-ring)
Probe Diameter 6 mm
Tightening Torque 35 Nm

Display & Indicators

Status Indicator 1 × Green LED (Operating status)

Related Products & Helpful Links

Frequently Asked Questions

How can I check whether TA2115 is the correct replacement?

Check the operating voltage, sensing or protective range, output type, connections and required accessories against your existing installation or the relevant manufacturer datasheet.

How quickly can TA2115 be delivered?

This product is listed as in stock, with estimated UK delivery in 3–5 working days. Delivery depends on order confirmation, courier services and destination.

Where can I check specifications and compatibility?

Review the specification information above and the product’s Downloads or Data Sheets tab, where documents are supplied. Our team can help check part numbers and installation compatibility.

What warranty does Drive Outlet Megastore offer?

Drive Outlet offers its own 2-year return-to-base warranty unless otherwise stated. Manufacturer warranties may not apply; please review the Terms and Conditions before ordering.

Weight 0.094 kg
Dimensions 15 × 15 × 15 cm
