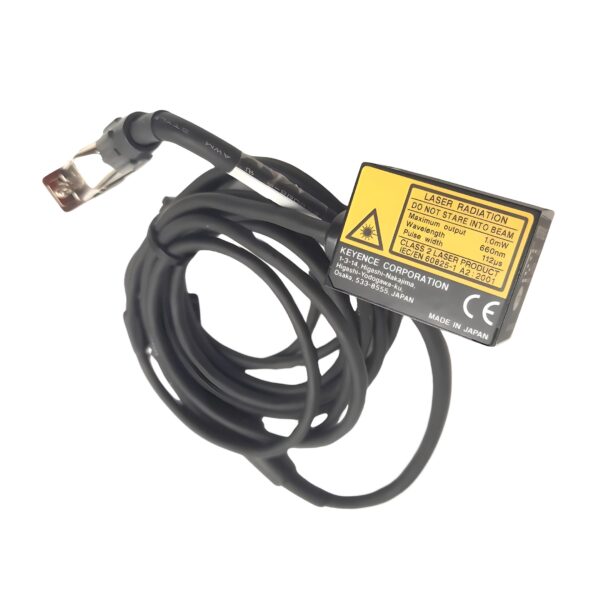

Keyence BL-1301 Ultra-Compact Digital Barcode Reader

The BL-1301 is an ultra-compact raster laser barcode reader, engineered for high-speed, front-facing 1D barcode scanning in demanding industrial and logistics environments. Featuring a visible red Class 2 laser, adjustable scan rates up to 1,300 scans/second, and RS-232C serial communication, the BL-1301 delivers reliable performance in compact spaces and fast-paced operations.

Technical Specifications

Model: BL1301
Type: Standard Type
Reading Direction: Front
Scanning Method: Raster

Optical & Reading Specifications

• Laser Light Source: Visible Red Semiconductor Laser (660 nm)
• Control Output: 85 µW
• Pulse Duration: 112 µs
• Laser Class: Class 2 Laser Product (IEC 60825-1, FDA (CDRH) Part 1040.10) ¹

Supported Barcode Types:

• CODE 39, ITF, Industrial 2of5, Standard 2of5, COOP 2of5, NW-7 (Codabar)
• CODE 128, GS1-128, CODE 93, EAN/UPC, GS1 DataBar
• Number of Readable Digits: 74 (148 with CODE 128 Start Character C)
• Readable Bar Width: 0.125 mm or More
• Reading Distance: 65 to 500 mm ² (at 1.0 mm narrow bar width)
• Focal Point: 120 mm
• Max Label Width: 339 mm ² (at 350 mm distance, 1.0 mm bar width)
• Print Contrast Signal (PCS): 0.4 or More
• Scanning Rate: 500 to 1,300 scans/second

I/O & Control Specifications

Input Terminals:

• Two Inputs (IN1, IN2)
• Non-Voltage Input (Contact or Solid-State)

Output Terminals:

• Four Outputs (OUT1–OUT4)
• NPN Open Collector
• Rated Load: 24 VDC, 30 mA
• Leakage Current (OFF): ≤ 0.1 mA
• Residual Voltage (ON): ≤ 0.5 V

Serial Communication Specifications

• Method: RS-232C (EIA Standard)
• Baud Rates: 600 to 115,200 bps
• Synchronization: Asynchronous
• Data Bit Length: 7 or 8 Bits
• Stop Bit Length: 1 or 2 Bits
• Parity Check: None, Even, or Odd

Power & Electrical Specifications

• Power Voltage: 5 VDC ±5%
• Current Consumption: 400 mA or Less

Environmental Resistance

• Enclosure Rating: IP65
• Ambient Light Resistance:
  • Sunlight: ≤ 10,000 lux
  • Incandescent Lamp: ≤ 6,000 lux
• Ambient Temperature: 0°C to +45°C
• Storage Temperature: -20°C to +60°C
• Relative Humidity: 35% to 85% RH (No Condensation)
• Operating Environment: Free of Dust and Corrosive Gas
• Vibration Resistance: 10 to 55 Hz, Double Amplitude 1.5 mm, 2 Hours in Each of the X, Y, and Z Directions

Material & Construction

• Weight: Approx. 115 g

Key Features & Benefits:

✅ High-Speed Scanning: Adjustable scan rates (500 to 1,300 scans/sec) for rapid barcode reading.

✅ Wide Reading Range: Reads barcodes from 65 to 500 mm with high accuracy.

✅ Supports Multiple Barcode Types: Compatible with standard 1D barcodes, including CODE 39, ITF, and EAN/UPC.

✅ Industrial-Grade Durability: IP65-rated for protection against dust and moisture.

✅ Flexible Communication Options: RS-232C serial communication for seamless integration.

✅ Compact & Lightweight: Weighs only 115 g for easy installation in various systems.
