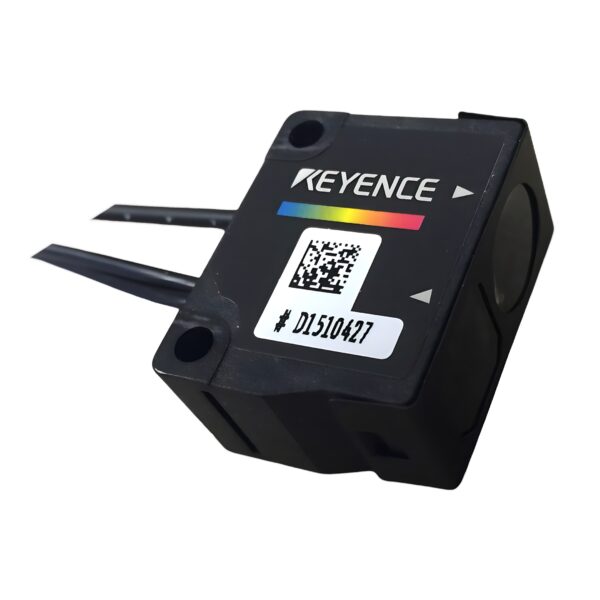

Keyence CZ-H37S Reflective Sensor Head with Shine Cancellation

The CZ-H37S is a compact, high-precision colour sensor equipped with lustre-cancelling technology for accurate small-beam spot detection on reflective surfaces. With a 1 mm minimum spot size, multi-wavelength LED system, and IP40-rated construction, this sensor is ideal for colour differentiation, object detection, and quality assurance in high-speed production environments.

Technical Specifications

Model: CZH37S
Type: Lustre-Cancel, Small Beam Spot

Optical & Detection Specifications

• Detecting Area: 11 to 20 mm (Recommended: 15 mm)
• Smallest Spot Diameter: 1 mm (at 16 mm reference distance)
• Light Source:
  • Red LED (665 nm)
  • Green LED (520 nm)
  • Blue LED (465 nm)
• Minimum Bend Radius of Fibre: 15 mm

Environmental Resistance

• Enclosure Rating: IP40
• Ambient Light Resistance:
  • Incandescent Lamp: 10,000 lux Max
  • Sunlight: 20,000 lux Max
• Operating Temperature: -10°C to +55°C (No Freezing)
• Vibration Resistance: 10 to 55 Hz, Double Amplitude 1.5 mm, 2 Hours in Each of the X, Y, and Z Axes

Material & Construction

• Housing: Triacetate, Polyarylate (Metal Section: TYPE 304 Stainless Steel)
• Lens Cover: Fibreglass Reinforced Plastic
• Weight: Approx. 45 g

Key Features & Benefits:

✅ Ultra-Small Spot Detection: 1 mm spot size for precise measurement at 16 mm reference distance.

✅ Lustre-Cancel Functionality: Accurately detects colours even on reflective or glossy surfaces.

✅ Multi-Colour LED Light Source: Red, Green, and Blue LEDs for precise colour differentiation.

✅ Compact & Lightweight: Only 45 g for easy mounting in tight spaces.

✅ Industrial Durability: IP40-rated with strong vibration resistance for stable operation.

📦 Order Today for Fast UK & Europe Delivery!

At Drive Outlet Megastore, we offer the best CZ-H37S prices, with same-day and next-day shipping across the UK & Europe.

For more information about the Keyence CZ-H37S, or assistance in selecting the right product for your needs, contact Drive Outlet Megastore.

Our knowledgeable team is here to provide expert guidance and ensure you find the perfect solution for your application.
