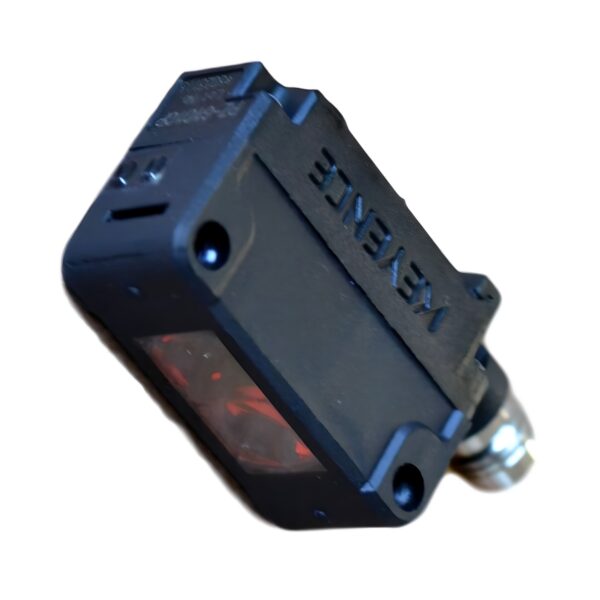

Keyence PZ-G101CP Built-In Amplifier Photoelectric Sensor

The PZ-G101CP is a narrow-view diffuse reflective sensor, engineered for compact industrial installations and accurate close-range object detection. With a 200 mm detecting distance, 5 mm spot diameter, and ultra-fast 500 µs response, this PNP-output sensor ensures dependable performance in space-constrained automation setups. Its IP69K-rated housing and M8 connector make it ideal for integration into harsh manufacturing environments.

Technical Specifications

Model: PZG101CP
Type: Diffuse Reflective, Narrow View Reflective
Shape: Rectangular
Output: PNP
Cable Connection: M8 Connector ¹

Optical & Detection Specifications

• Detecting Distance: 200 mm
• Spot Diameter: Approx. 5 mm (at 100 mm distance)
• Light Source: Red LED
• Sensitivity Adjustment: 1-Turn Trimmer (230° Rotation)
• Response Time: 500 µs
• Operation Mode: LIGHT-ON / DARK-ON (Switch-Selectable)

Indicators & Status LEDs

• Output Indicator: Orange LED
• Stable Operation Indicator: Green LED

Control Output & Protection

• Output Type: Open Collector
• Max Output: 30 VDC, 100 mA Max
• Residual Voltage: 1 V Max

Built-in Protection:

• Reverse Polarity Protection
• Overcurrent Protection
• Surge Absorber
• Interference Suppression: Up to 2 units (with automatic different frequency function)

Mechanical & Installation Specifications

• Tightening Torque (Mounting Hole): Max. 0.5 N·m

Power & Electrical Specifications

• Power Voltage: 10 to 30 VDC (incl. 10% ripple P-P)
• Current Consumption: 34 mA or Less

Environmental Resistance

• Enclosure Rating:
  • IEC: IP67
  • NEMA: 4A, 6, 12
  • DIN: IP69K
• Ambient Light Resistance:
  • Incandescent Lamp: 5,000 lux Max
  • Sunlight: 20,000 lux Max
• Operating Temperature: -20°C to +55°C (No Freezing)
• Relative Humidity: 35% to 85% RH (No Condensation)

Durability:

• Vibration Resistance: 10 to 55 Hz, Double Amplitude 1.5 mm, 2 Hours in X, Y, Z
• Shock Resistance: 1,000 m/s², 6 Times in X, Y, Z

Material & Construction

• Housing & M18 Nut (Threaded Models): Glass-Fibre Reinforced PBT
• Lens Cover: Polyarylate (PAR)
• Trimmer: Glass-Fibre Reinforced Polyamide (PA)
• Case Connection Components: Nickel-Plated Iron, Zinc, NBR Packing
• Cable (Cable Models): PVC
• Weight: Approx. 10 g (Rectangular Connector Models)
• Accessories Included: Instruction Manual

Key Features & Benefits:

✅ High-Precision Detection: 5 mm spot diameter for accurate object detection.

✅ Compact & Lightweight: Only 10 g for easy mounting in tight spaces.

✅ Fast Response Time: 500 µs for real-time object detection.

✅ Interference Suppression: Supports up to 2 units with automatic frequency adjustment.

✅ Industrial-Grade Durability: IP69K-rated for harsh environments, with high shock and vibration resistance.

✅ Flexible Mounting & Connectivity: M8 connector design for easy integration.
