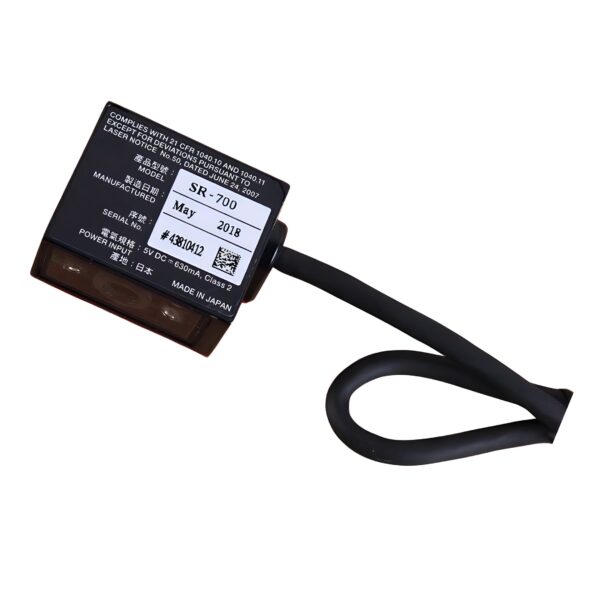

Keyence SR-700 Ultra-Compact 1D and 2D Code Reader

The Keyence SR-700 is a close-range 1D and 2D barcode scanner that delivers fast and accurate reading in compact and confined spaces. Featuring a visible red laser, IP65-rated enclosure, and dual communication options via RS-232C and USB, this ultra-compact scanner is ideal for quality control, packaging, and traceability in automation environments.

Technical Specifications

Model: SR700
Series: SR Series
Type: Close-range 1D/2D code reader
Manufacturer: Keyence

Laser Pointer & Lighting

• Laser Light Source: Visible semiconductor laser (660 nm), 60 µW output, 200 µs pulse duration
• Laser Class: Class 1 (IEC60825-1, FDA (CDRH) Part 1040.10)
• LED Illumination: High-intensity red LED

Reading Capabilities

Supported Codes:

• 1D Barcodes: CODE39, ITF, 2of5, NW-7, CODE128, GS1-128, GS1 DataBar, CODE93, JAN/EAN/UPC, Trioptic CODE39, Full ASCII, Pharmacode
• 2D Codes: QR, MicroQR, DataMatrix, GS1 DataMatrix, PDF417, Micro PDF417, GS1 Composite, CC-A/B/C

Minimum Resolution:

• Barcodes: 0.127 mm

Typical Reading Distance:

• Barcodes: 30–100 mm (0.33 mm bar width)
• 2D Codes: 40–80 mm (0.25 mm cell size)

Focal Distance: 60 mm
Field of View: 42 × 27 mm

I/O & Connectivity

• Control Inputs: 2 (IN1 & IN2), non-voltage input
• Control Outputs: 4 NPN open collector outputs (max 30 mA at 24 V, ≤ 0.8 V residual voltage)
• RS-232C: 9600 to 115200 bps, supports MC protocol, KV STUDIO, SYSWAY, and more
• USB Interface: USB 2.0 Full Speed compliant

Power & Electrical

• Supply Voltage: 5 VDC (+5 %, −10 %)
• Current Consumption: ≤ 630 mA

Environmental Resistance

• Enclosure Rating: IP65
• Ambient Light Tolerance: Sunlight ≤ 10,000 lux, Incandescent ≤ 6,000 lux, Fluorescent ≤ 2,000 lux
• Operating Temp: 0 °C to +45 °C
• Humidity: 35%–95% RH (no condensation)
• Storage Temp: –10 °C to +50 °C
• Vibration Resistance: 10–55 Hz, 1.5 mm double amplitude, 3 hrs per axis

Material & Construction

• Weight: Approx. 160 g (with cable)

Included Accessories

• Instruction Manual

Key Features & Benefits:

✅ Close-Range Optimised: Perfect for short-distance scanning on fast production lines.

✅ 2D & 1D Compatibility: Decodes nearly all common barcode and data matrix formats.

✅ Dual Communication Ports: Includes USB and RS-232C for flexible connectivity.

✅ Laser Targeting + LED Illumination: Ensures accurate alignment and read reliability.

✅ IP65 Durability: Withstands dust, splash, and industrial exposure.

✅ Compact Form Factor: Easily integrated into confined workspaces.

📦 Order Today for Fast UK & Europe Delivery!

At Drive Outlet Megastore, we provide the best Keyence SR-700 prices, with same-day and next-day shipping across the UK & Europe.

Need help integrating the SR-700 with your system? Contact our experts — we’ll help you configure the optimal code reader solution for your application.
